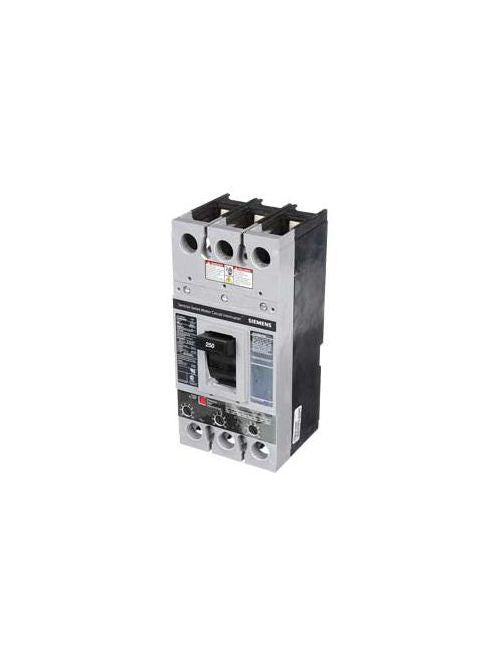

Siemens FXD63S250AL 3-Pole 250 Amp 600 VAC 22 kA Molded Case Switch

Product Description

The Siemens FXD63S250AL is a three-pole molded case switch designed for efficient power distribution. This unit supports a maximum load of 250 Amps and operates at 600 VAC. It features a thermal-magnetic trip type which ensures rapid response to circuit overloads. The construction includes magnetic-only trip units, providing reliable performance under various conditions.

• Rated for 250 Amps at 600 VAC
• Interrupt rating of twenty-two kAIC
• Contains line and load side lugs for easy connection

Product Highlights

This circuit breaker is ideal for use in industrial and commercial applications. The compact design allows it to fit in confined spaces while maintaining high performance standards.

Product Information

Standard Information

• Brand: Siemens
• Type: FXD6

Technical Specifications

• Frame: FD
• Width: six inches
• Height: eleven inches
• Length: seven inches
• Voltage: 600 Volt
• Amperage: 250 Amp
• Number of Poles: 3 Pole
• Interrupt Rating: 22 kAIC
• Operating Temperature: 40C
