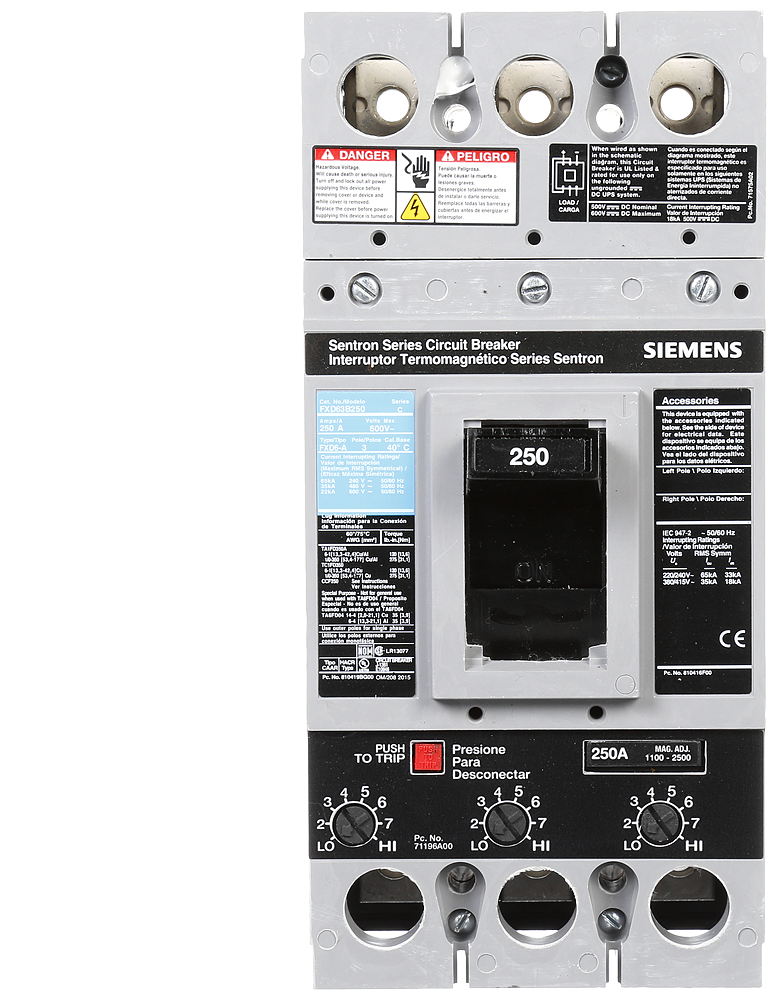

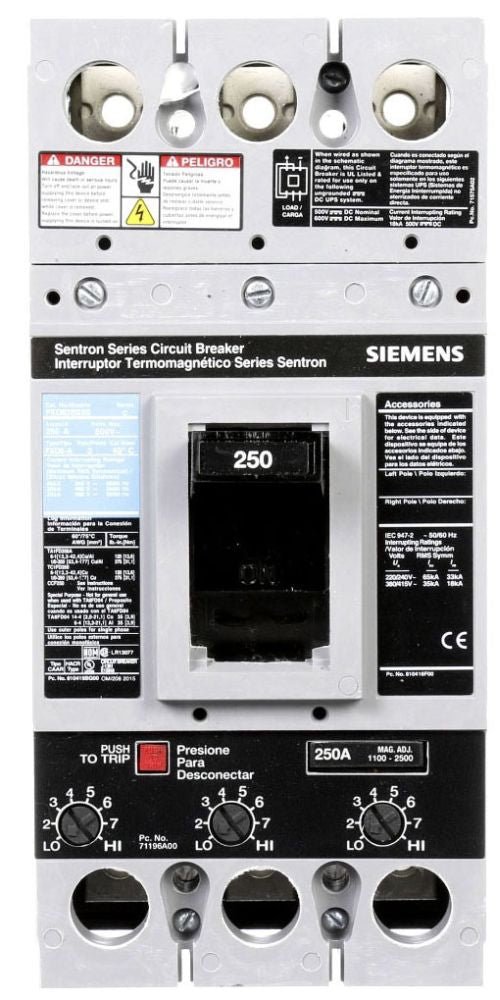

Siemens FXD63B250 3-Pole 600 VAC 250 Amp 22 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker

Product Description

The Siemens FXD63B250 is a three-pole thermal magnetic molded case circuit breaker designed for use in power distribution systems. It operates at six hundred volts and can handle up to two hundred fifty amps. This breaker features a non-interchangeable trip unit that provides reliable protection against overcurrent conditions.

• Type FD Molded Case Circuit Breaker
• Interrupt Rating of twenty-two kiloamps
• Thermal magnetic operation with a standard operating temperature of forty degrees Celsius

Product Highlights

This circuit breaker ensures safety and reliability in electrical systems by protecting against short circuits and overloads.

Product Information

Standard Information

• Catalog Number: FXD63B250
• Manufacturer: Siemens

Technical Specifications

• Current Rating: 250 Amp
• Voltage Rating: 600 Volt
• Number of Poles: 3
• Frame Type: FD
• Interrupt Rating: 22 kAIC
• Width: 5.5 inches
• Height: 11.2 inches
• Length: 6.9 inches
• Weight: 8.6 lb
• Frequency Rating: 50/60 Hz
• Operating Temperature: 40 degrees C
• Actuator: Varying
