Product Description

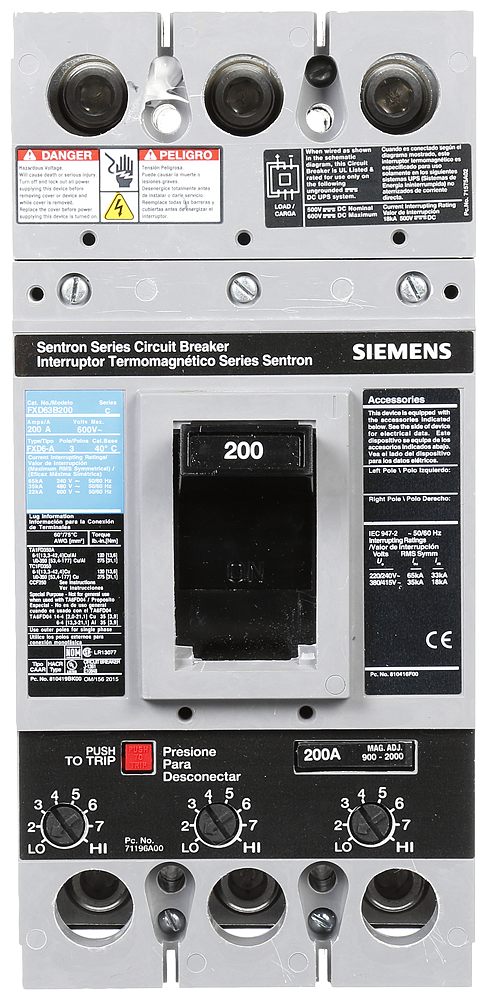

The Siemens FXD63B200L is a 3-pole circuit breaker designed for low voltage power applications. With a 200 Amp capacity and rated for 600 VAC, this breaker offers reliable protection for your electrical system. It features a thermal-magnetic trip unit that provides quick response to overload conditions. This circuit breaker is ideal for use in industrial and commercial installations.
- Rated for 22 kA interrupting current at 600 V
- Thermal-magnetic trip for effective overload protection
- Compatible with standard wire sizes ranging from 6 AWG to 350 KCMIL
Product Highlights
This device is a standard 40-degree Celsius breaker suitable for various applications where reliable and safe circuit protection is required.
Product Information
Standard Information
-
Brand: Siemens
-
Model Number: FXD63B200L
Technical Specifications
-
Amperage: 200 Amp
-
Voltage: 600 Volt
-
Poles: 3 Pole
-
Interrupt Rating: 22 kAIC
-
Frame Type: FD
-
Dimensions: 4.50 inches (W) x 9.5 inches (H) x 4.00 inches (D)
-
Weight: 9.25 lb
-
Country of Origin: Mexico
