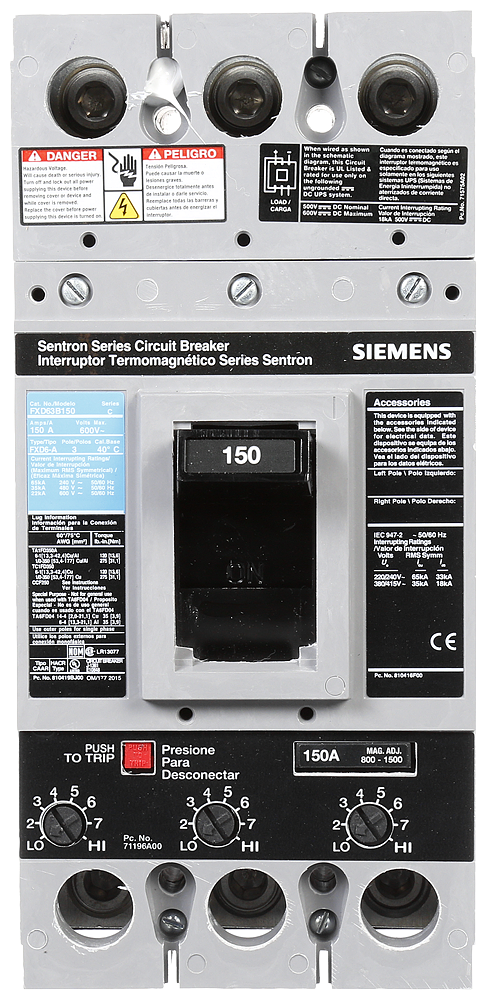

Siemens FXD63B150L 3-Pole 150 Amp 600 VAC 22 kA ETI Circuit Breaker

Product Description

The Siemens FXD63B150L is a 3-pole circuit breaker designed for low voltage applications. With a current rating of 150 amps and a voltage capacity of 600 VAC, it provides reliable protection for electrical systems. The breaker features a thermal-magnetic trip unit for enhanced safety and performance.

• Rated for 22 kAIC at 600V and 35 kAIC at 480V
• Line and load side lugs are compatible with wire sizes from six AWG to 350 KCMIL for copper and four AWG to 350 KCMIL for aluminum
• Dimensions are four point five inches in width, nine point five inches in height, and four inches in depth

Product Highlights

This circuit breaker is suitable for a variety of applications, ensuring optimal performance with its HACR standard rating and varying actuator configurations.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• MPN: FXD63B150L
• Amperage: 150 Amp
• Voltage: 600 Volt
• Number of Poles: 3 Pole
• Interrupt Rating: 22 kAIC
• Width: 5.600 inches
• Height: 7 inches
• Length: 11.1 inches
• Weight: 9.250 lb
• Country of Origin: Mexico
• Operating Temperature: 40C
