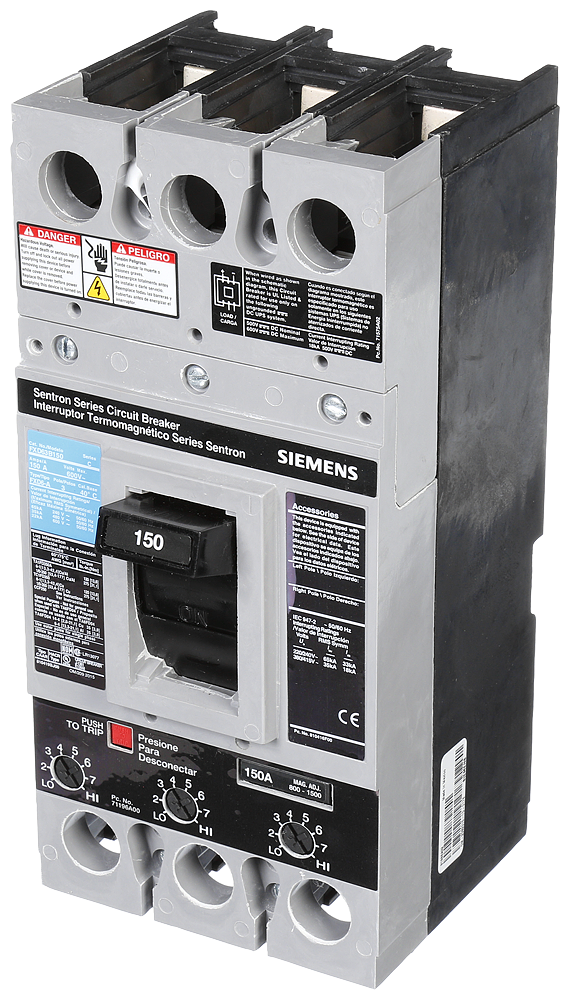

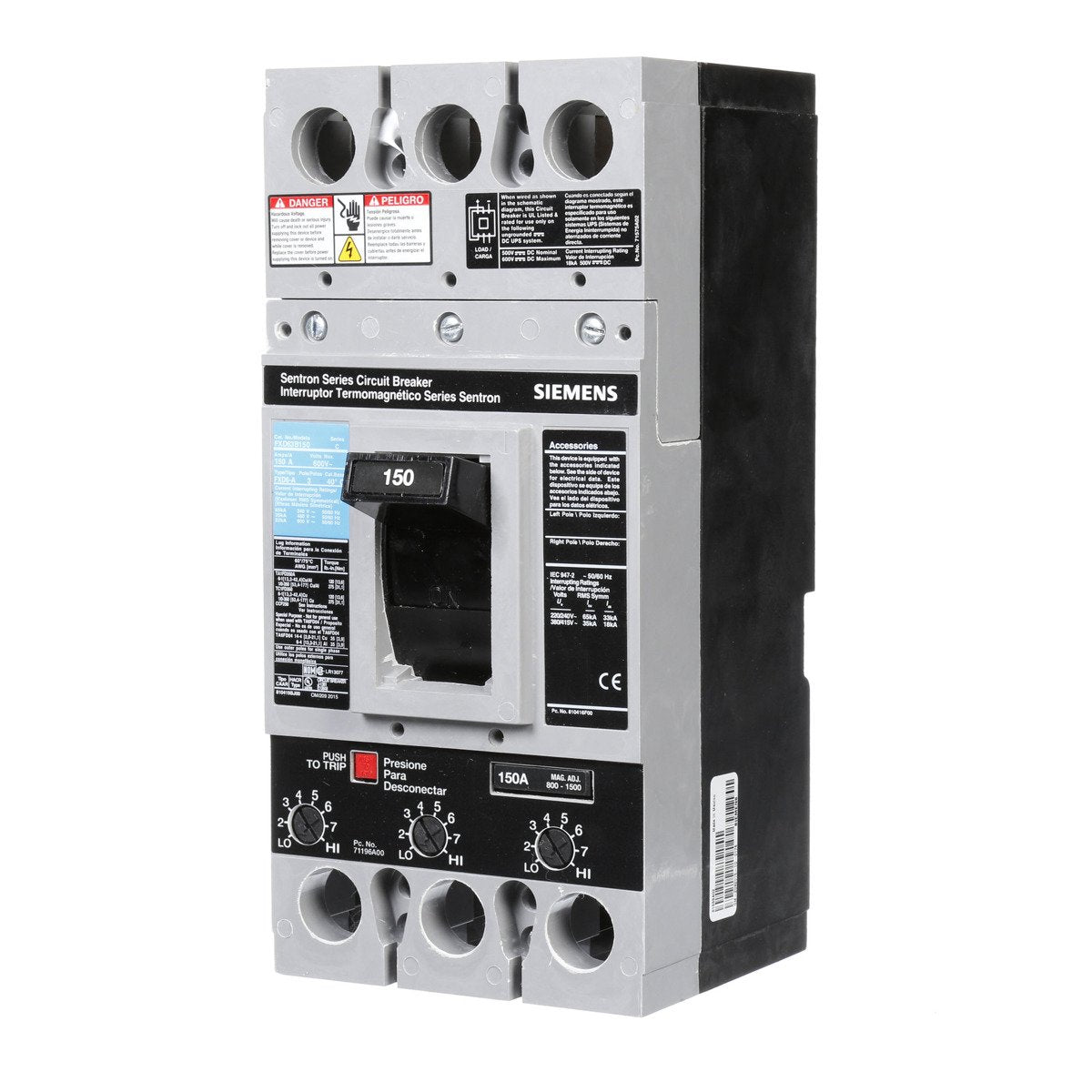

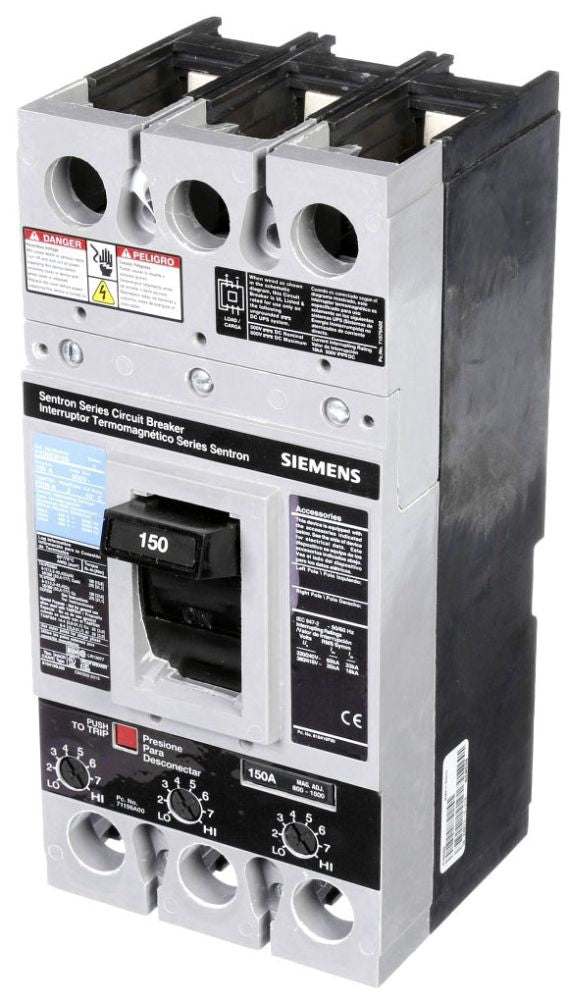

Siemens FXD63B150 3-Pole 600 VAC 150 Amp 22 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker

Product Description

The Siemens FXD63B150 is a three-pole molded case circuit breaker rated for six hundred volts and one hundred fifty amps. This breaker features a thermal magnetic trip design and has an interrupting capacity of twenty-two kiloamps. It is suitable for use in commercial and industrial power distribution systems.

• Rated voltage: 600 VAC
• Interrupt rating: 22 kA
• Temperature rating: 40 degrees Celsius

Product Highlights

This circuit breaker is designed for standard applications at 40 degrees Celsius. It has a non-interchangeable trip mechanism and is compliant with UL 489 standards.

Product Information

Standard Information

• Brand: Siemens
• MPN: FXD63B150

Technical Specifications

• Rating: 600 VAC
• Current: 150 Amp
• Number of Poles: 3
• Width: 5.5 inches
• Height: 11.1 inches
• Length: 6.9 inches
• Frame Type: FD
• Actuator: Varying
• Country of Origin: Mexico
• Trip Type: Thermal Magnetic
• Frequency: 50/60 Hz
• Sub Brand: Sentron
• Approval: UL 489, CSA C22.2
