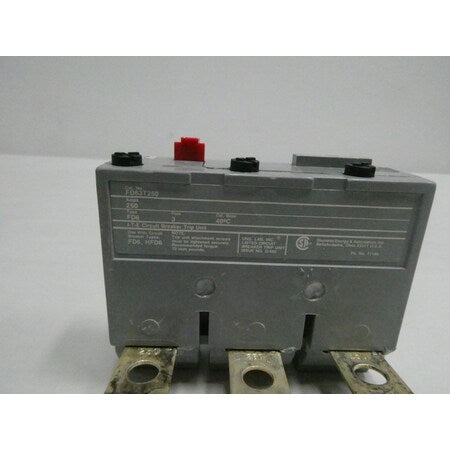

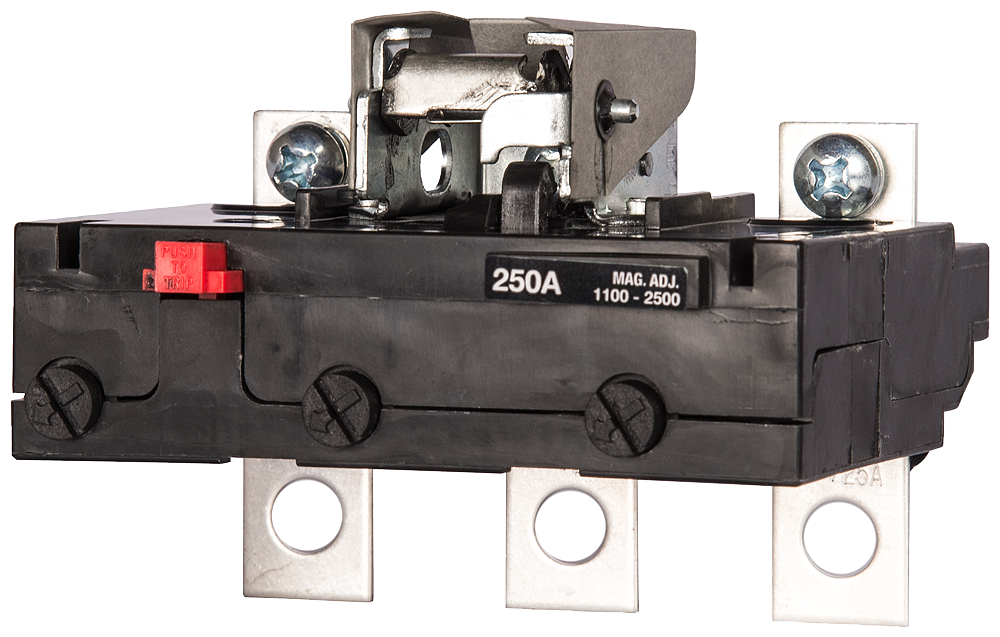

Siemens FD63T250 3-Pole 250 Amp Circuit Breaker Trip Unit

Product Description

The SIEMENS FD63T250 is a type FD molded case circuit breaker with a 22kA interrupt rating at 600V. This 3-pole breaker is rated for 250A and features a thermal-magnetic trip unit and standard IC rating. Designed for 40C trip unit applications, it is part of the Sentron sub-brand.

• Type FD Molded Case Circuit Breaker
• Interrupt Rating: 22kA @ 600V
• Thermal Magnetic Trip Type

Product Highlights

3-Pole, 250A circuit breaker with thermal-magnetic trip, suitable for circuit protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: FD63T250
• Country of Origin: Mexico

Technical Specifications

• Type: Thermal-Magnetic
• Brand: Siemens
• Frame: FD
• Width: 5.350 in
• Height: 4.0 in
• Length: 4.7 in
• Current: 250 Amp
• Voltage: 500 Volt
• Amperage: 250 Amp
• Standard: HACR,UL
• Frequency: 50/60 Hz
• Sub Brand: Sentron
• Trip Type: Thermal-Magnetic
• Number of Poles: 3 Pole
• Interrupt Rating: 22 kAIC
• Country of Origin: Mexico
• Operating Temperature: 40C
• Category: Circuit Protection
• Manufacturer: Siemens
• Part Status: Active
