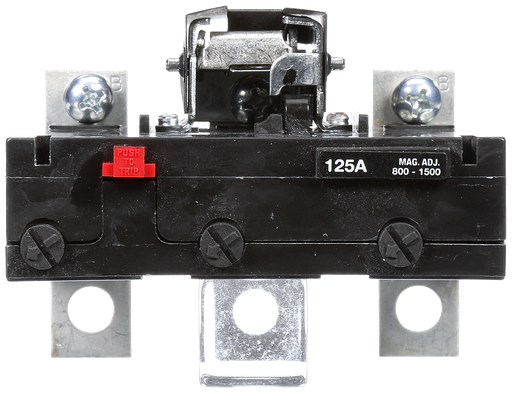

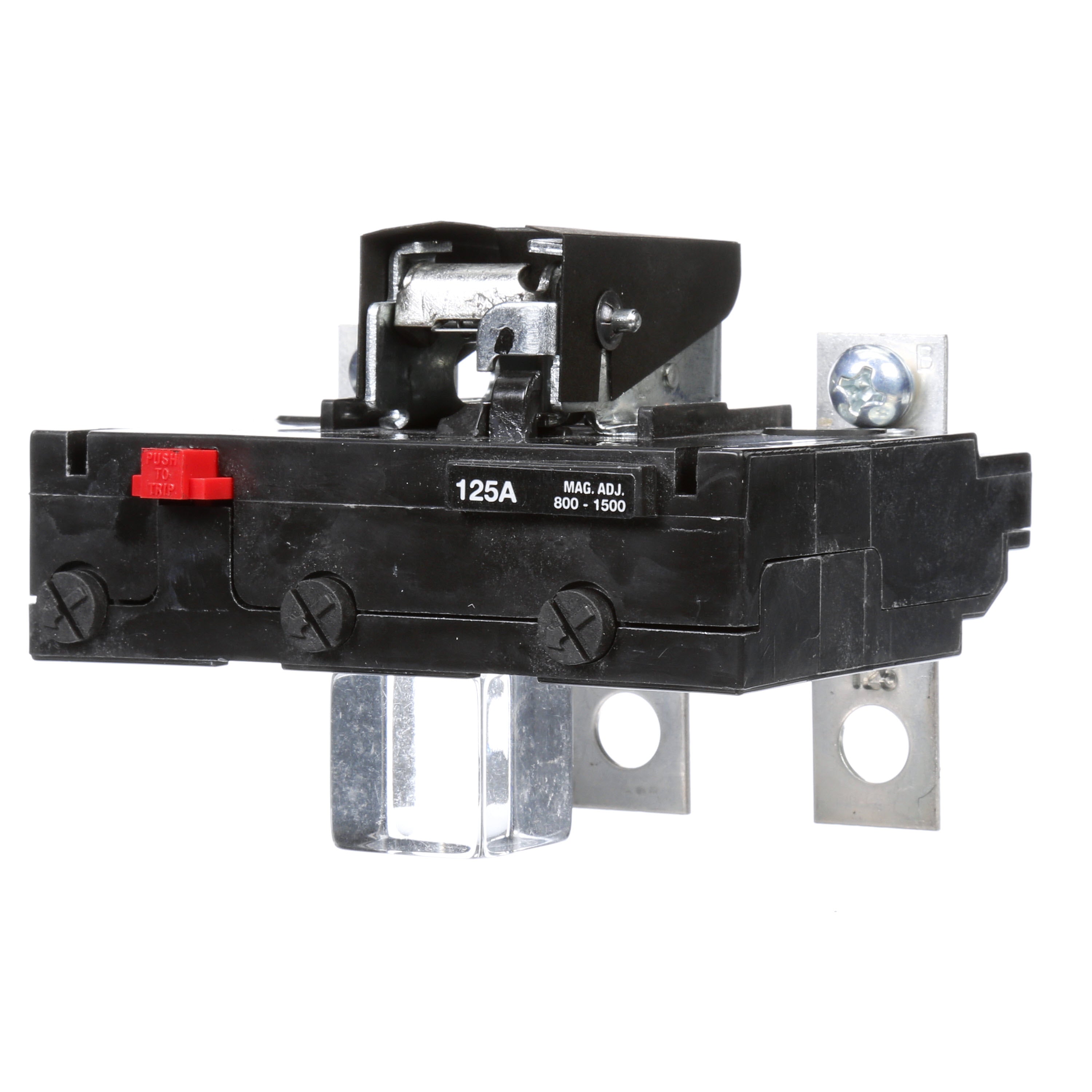

Siemens FD63T125 trip unit 125 amp 3 pole

Product Description

The Siemens FD63T125 is a thermal-magnetic molded case circuit breaker trip unit. Rated at 125 Amp and 600V, this 3-pole unit is designed for standard IC ratings and offers an interrupt rating of 22kA at 600V. It is suitable for use as a 40C trip unit only.

• Thermal-magnetic trip type
• Interrupt rating of 22kA at 600V
• Suitable for 40C trip unit applications

Product Highlights

The Siemens FD63T125 is a 3-pole, 125A trip unit designed for circuit protection with a thermal-magnetic trip type.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: FD63T125
• Country of Origin: Mexico

Technical Specifications

• Amperage: 125 Amp
• Applications: 40C Trip Unit Only
• Current: 125 Amp
• Frame: FD
• Frequency: 50/60 Hz
• Interrupt Rating: 22 kAIC
• Number of Poles: 3 Pole
• Operating Temperature: 40C
• Standard: HACR,UL
• Trip Type: Thermal-Magnetic
• Type: Thermal-Magnetic
• Voltage: 600 Volt
• Brand: Siemens
• Sub Brand: Sentron
• MPN: FD63T125
• Poles: 3
• Height: 5.1 Inch
• Length: 6 Inch
• Width: 6.200 in
