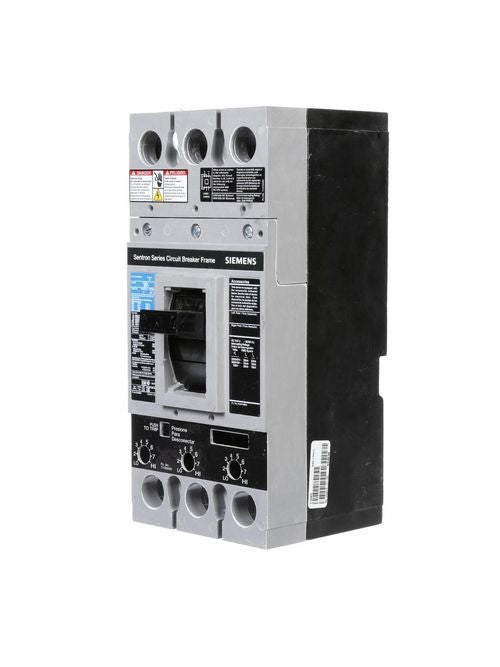

Siemens FD63B200L 3-Pole 600 VAC 200 Amp 22 kA Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker

Product Description

The Siemens FD63B200L is a three-pole, low voltage molded case circuit breaker rated for 600 VAC and 200 amps. This breaker features a thermal-magnetic trip unit and an interchangeable trip mechanism. It is designed for a standard operating temperature of forty degrees Celsius and provides a 22 kAIC interrupting capacity at six hundred volts.

• Thermal magnetic trip unit for reliable protection.
• Rated for 200 amps with a wide voltage range suitable for various applications.
• Compact design with dimensions of four point five inches wide, nine point five inches high, and four inches deep.

Product Highlights

This circuit breaker is ideal for commercial and industrial applications, ensuring safety and reliability in power distribution. It is suitable for use in panels and can handle significant electrical loads with minimum effort.

Product Information

Standard Information

• Brand: Siemens
• Sub Brand: Sentron

Technical Specifications

• MPN: FD63B200L
• Type: FD6
• Frame: FD
• Number of Poles: 3
• Amperage: 200 Amp
• Voltage Rating: 600 Volt AC
• Interrupt Rating: 22 kAIC
• Actuator: Varying
• Operating Temperature: 40C
