Siemens fcrk206 Class R Fuse Kit 30/60 Amp 250V Mcs Switch

Product Description

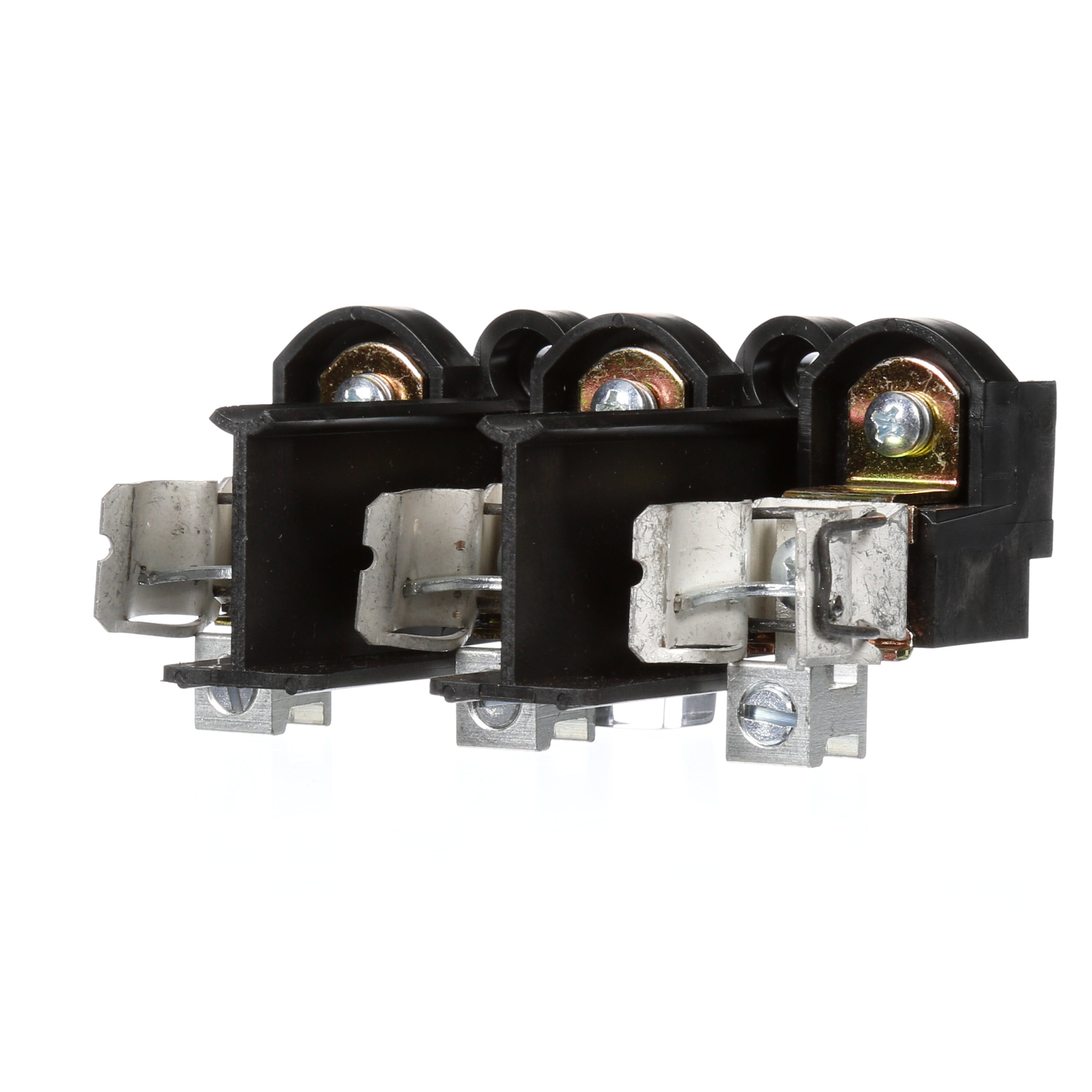

The SIEMENS fcrk206 is a Class R fuse kit designed as an accessory for MCS low-voltage disconnect switches. Rated at 60 amps at 250 volts and 30 amps at 600 volts, this kit provides the fusing components required to bring an MCS switch disconnect into service. It includes a load base plus line and load fuse clips, giving installers all the hardware needed to complete a properly fused disconnect assembly. Accepted wire range spans 14 to 4 AWG for both copper and aluminum conductors. Licensed electricians performing commercial or industrial disconnect installations are the primary audience for this component.

This fuse kit is intended for use with Siemens MCS switch disconnects in low-voltage power distribution applications. It is suited for commercial and light industrial environments where Class R fusing is specified. The single-throw switching action and 10,000 operating cycle rating make it appropriate for motor control center and branch circuit disconnect service where repeated switching is expected.

Key Features

• Class R fuse kit rated 60 amps at 250 volts and 30 amps at 600 volts
• Wire range accepts 14 to 4 AWG copper or aluminum conductors
• Includes load base plus line and load fuse clips for a complete installation
• Single-throw action with 10,000 operating cycle rating
• Operating temperature range of -20 degrees F to 120 degrees F ambient

Compatibility

Designed for use with Siemens MCS switch disconnect assemblies requiring Class R fuse kit accessories in low-voltage applications up to 250 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before handling any disconnect switch components. Verify that conductor size and insulation rating are appropriate for the circuit before terminating wiring to the load base. Do not exceed the rated amperage or voltage for the fuse clips provided in this kit.

Technical Specifications

• Amperage Rating: 30 amps at 600 volts / 60 amps at 250 volts
• Voltage Rating: 250 volts
• Fuse Class: Class R
• Wire Range: 14 to 4 AWG (copper or aluminum)
• Operating Cycles: 10,000
• Operating Temperature: -20 degrees F to 120 degrees F ambient
• Height: 4.25 inches
• Length: 6.5 inches
• Width: 5.25 inches
• Weight: 0.79 pounds
• Country of Origin: Mexico

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: fcrk206
