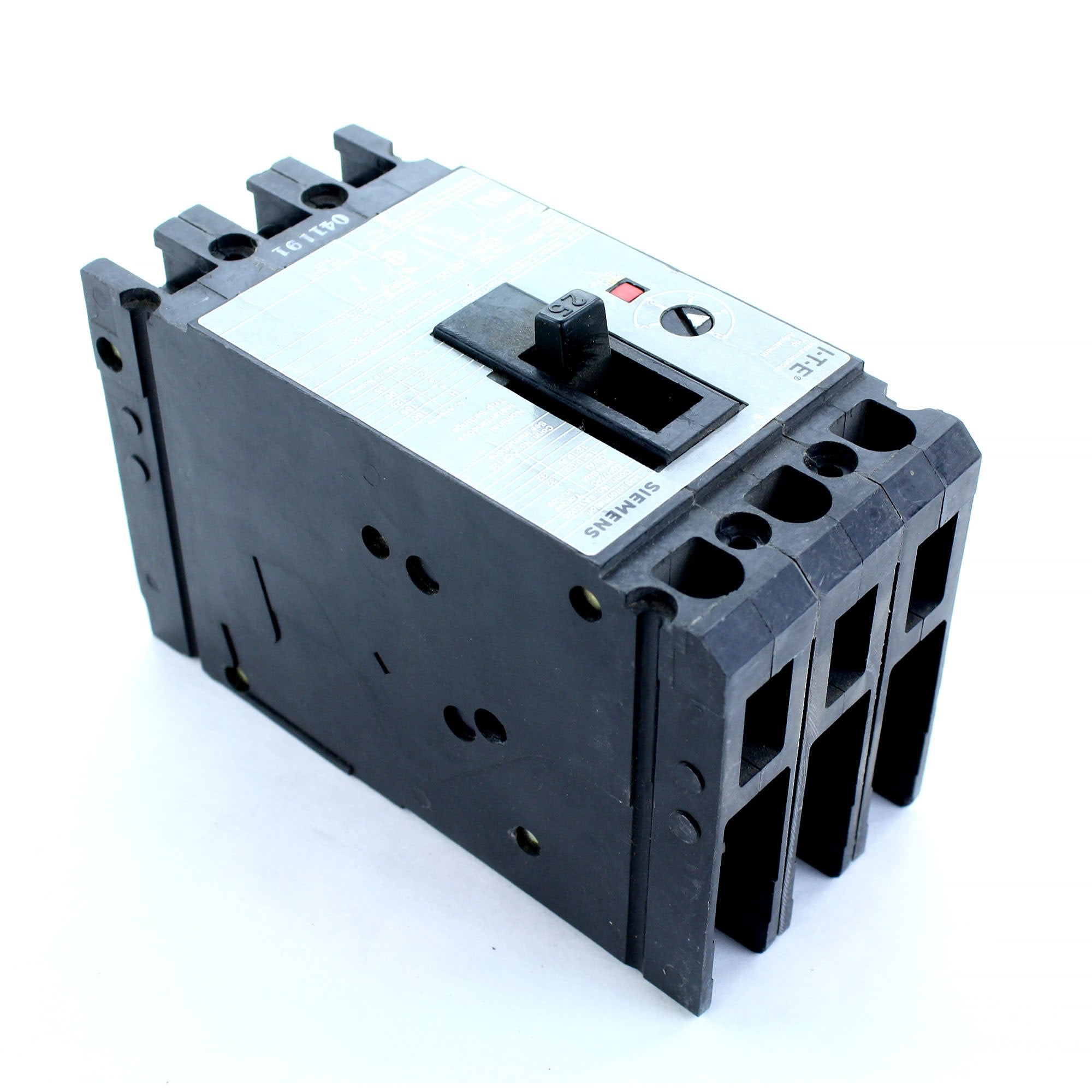

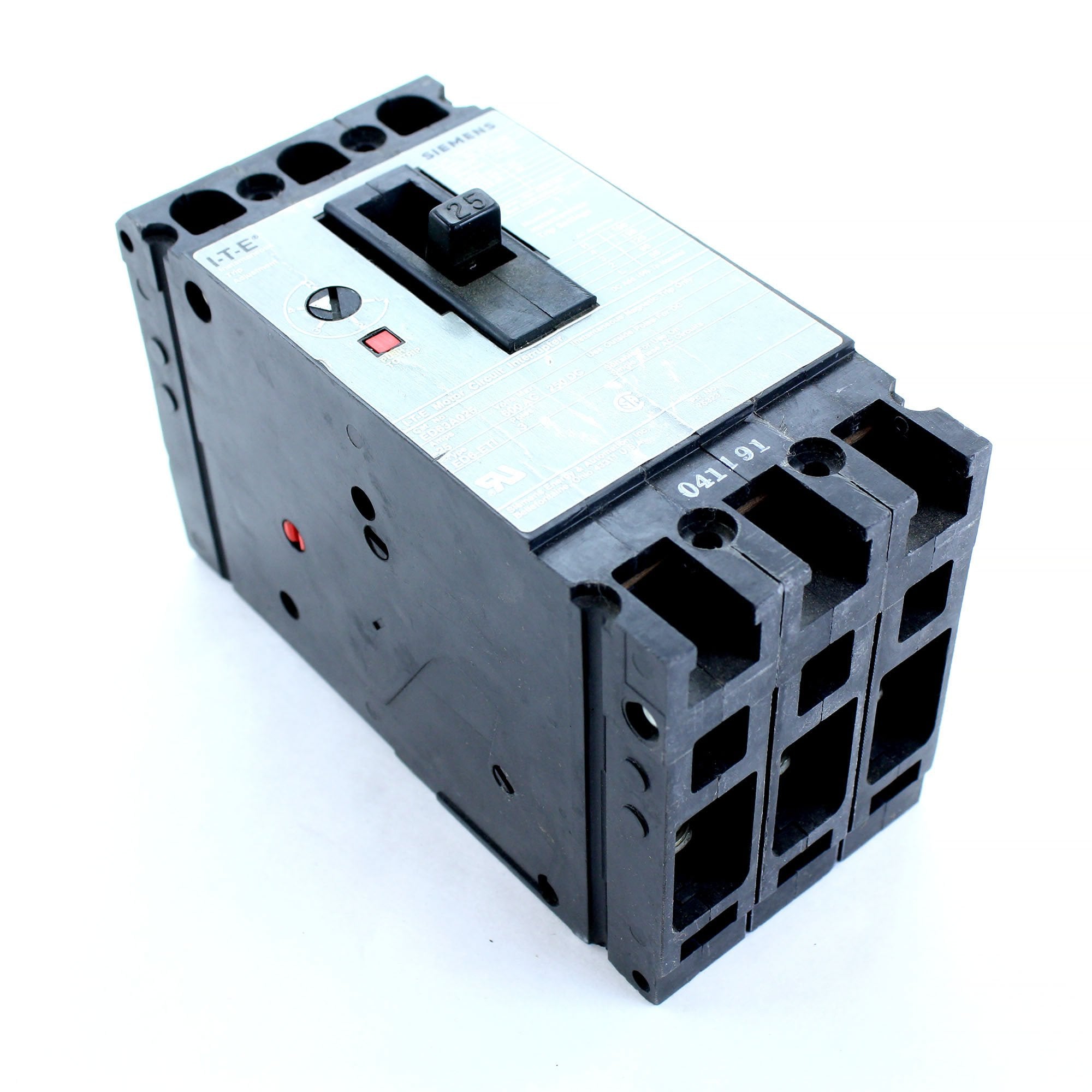

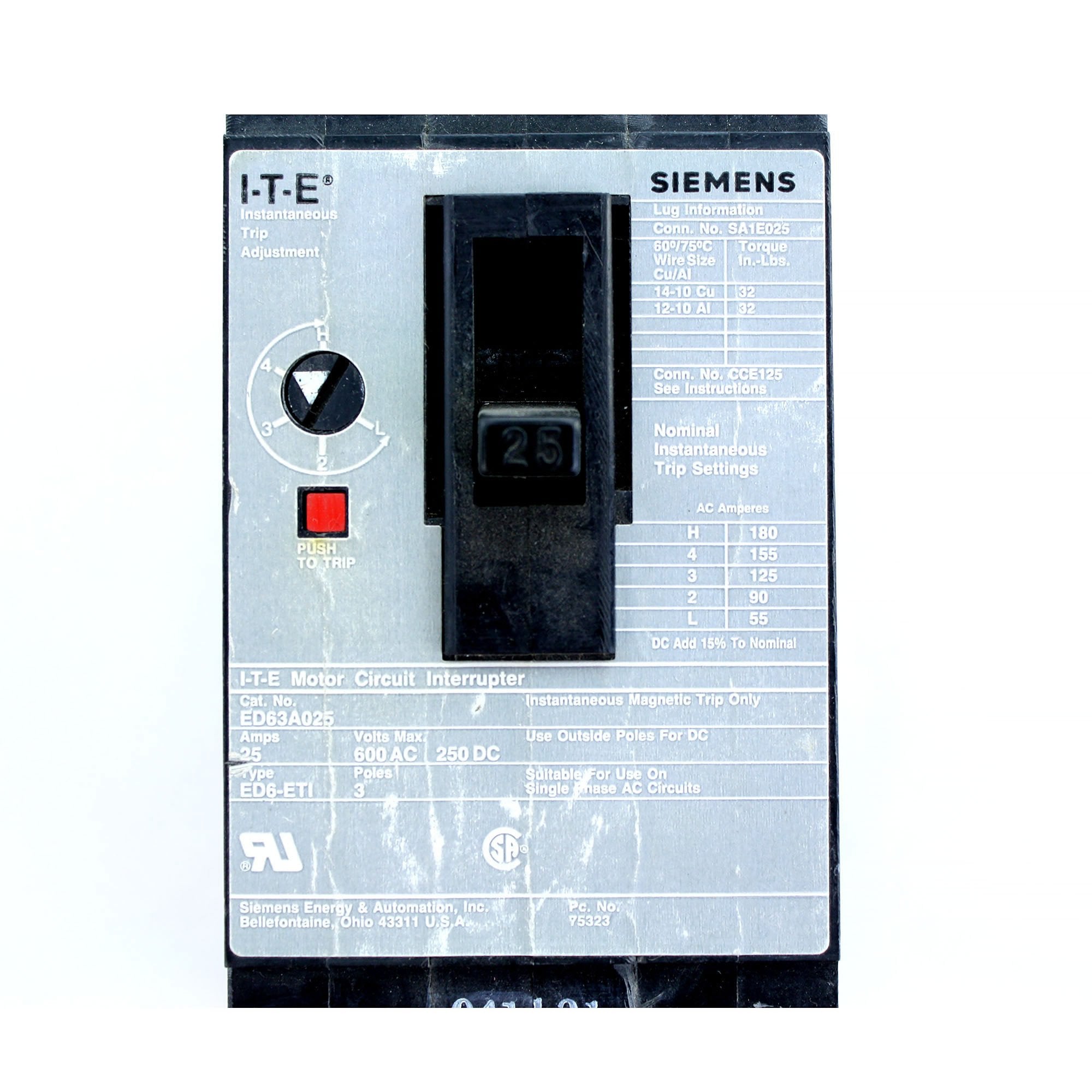

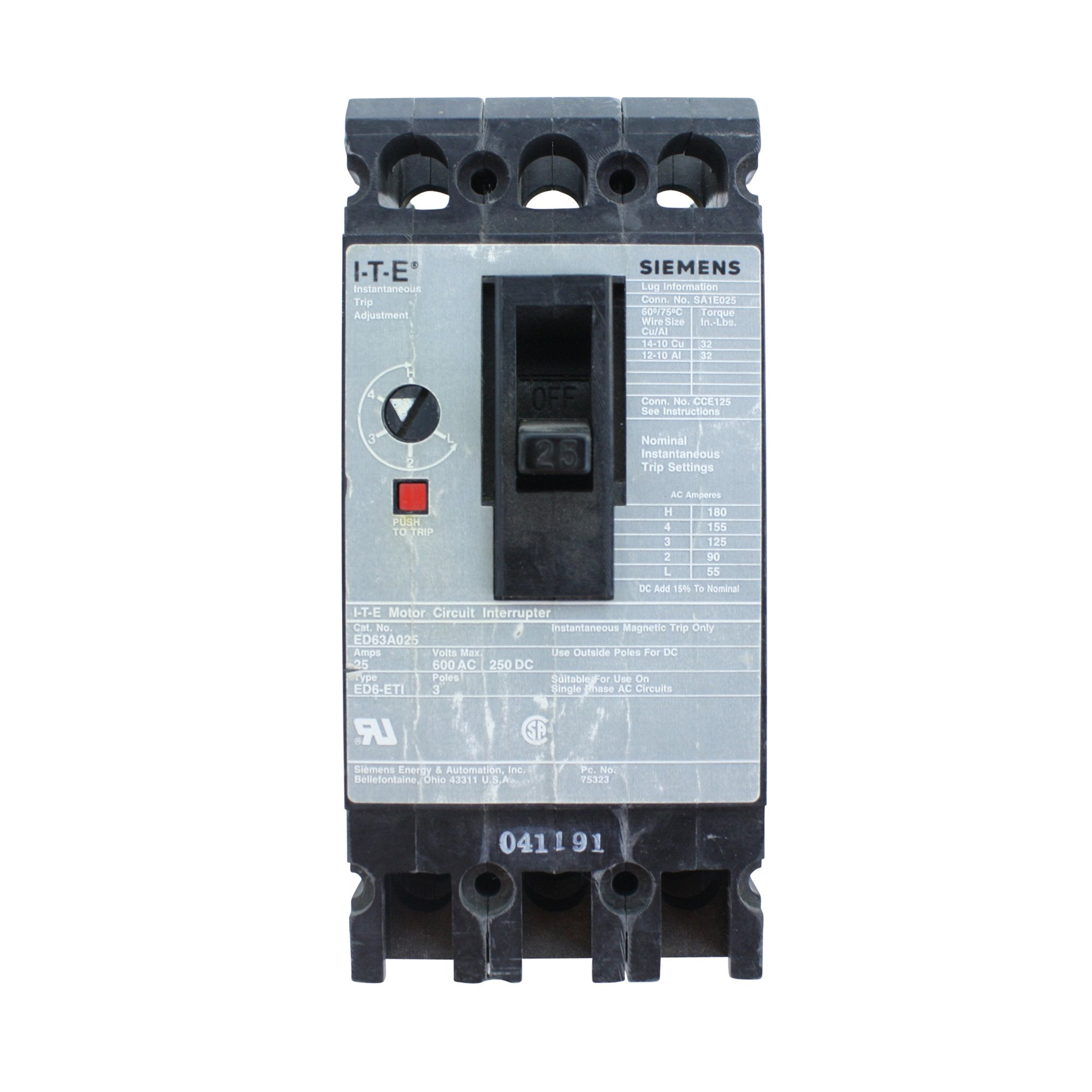

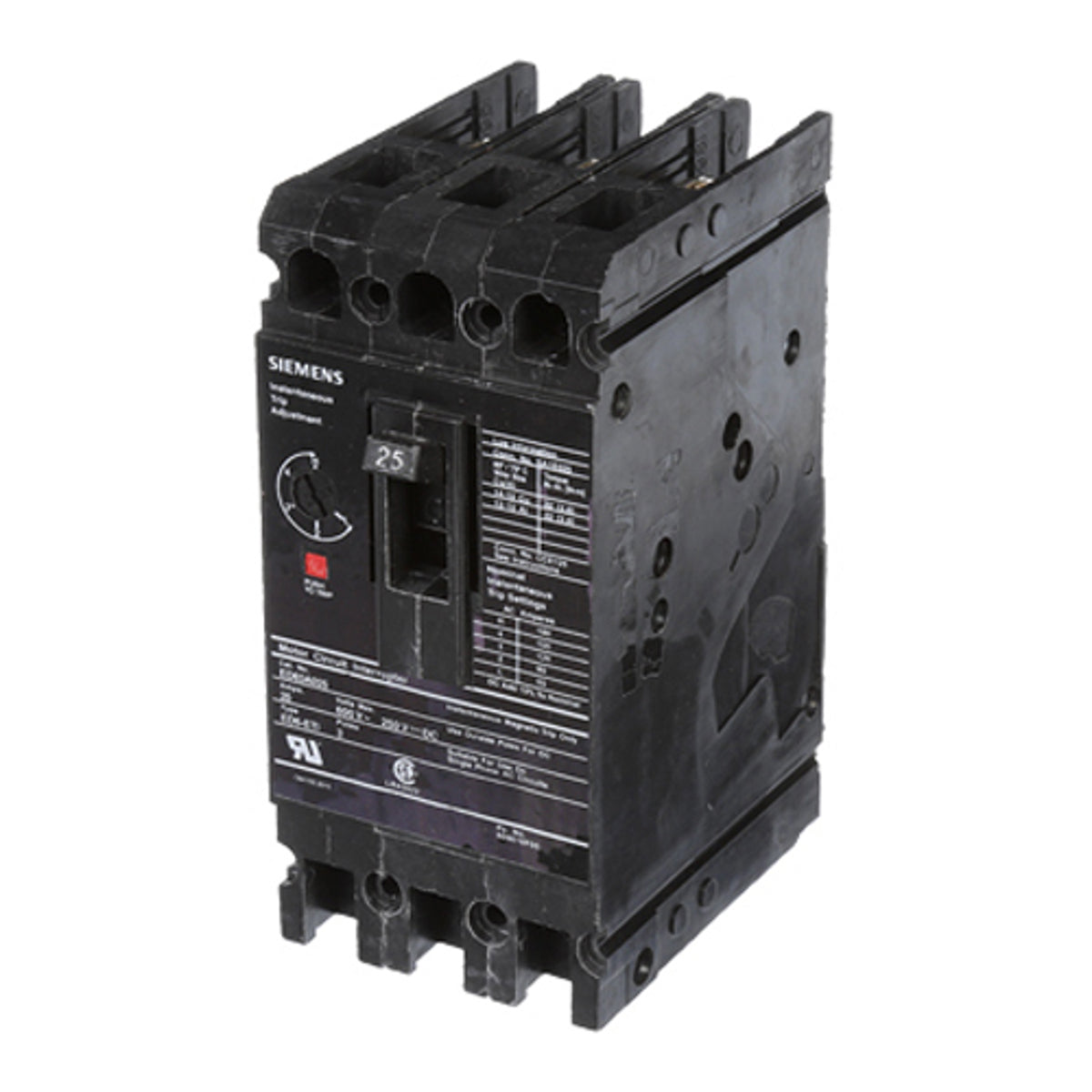

Siemens ED63A025 600 Volt 25 Amp 3-Pole Circuit Breaker with ETI Lugs

Product Description

The Siemens ED63A025 is a low voltage Sentron molded case circuit breaker with a magnetic trip. This standard range ETI breaker features an ED frame and meets UL 489 / IEC 60947-2 standards. Rated at 25A, this 3-pole breaker has a 18kAIC at 600V and 25kAIC at 480V. It includes load lugs and accommodates wire sizes 14 - 10AWG (CU) / 12 - 10AWG (AL).

• LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER
• MAGNETIC TRIP ONLY UNIT
• STANDARD RANGE ETI BREAKER ED FRAME
• MEETS UL 489 / IEC 60947-2 STANDARDS
• LOAD LUGSONLY (SA1E025)
• WIRE RANGE: 14 - 10AWG (CU) / 12 - 10AWG (AL)

Product Highlights

This Siemens circuit breaker is a 3-pole, 25A breaker designed for standard range ETI applications and provides reliable circuit protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: ED63A025
• Country of Origin: Mexico

Technical Specifications

• Type: ED6
• Brand: Siemens
• Frame: ED
• Width: 5.250 in
• Height: 5.85 Inch
• Length: 6.9 Inch
• Current: 25 Amp
• Voltage: 600 Volt
• Amperage: 25 Amp
• Standard: HACR
• Frequency: 50/60 Hz
• Sub Brand: Sentron
• Trip Type: Thermal Magnetic
• Number of Poles: 3 Pole
• Interrupt Rating: 18 kAIC
• Temperature Rating: 40 degrees C
• Catalog Number: ED63A025
• Manufacturer: Siemens
• Country of Origin: Mexico
• UPC: 783643210837
• GTIN: 00783643210837
• Item Type: ED6
• Voltage Rating: 600//250
• Poles: 3 Pole
