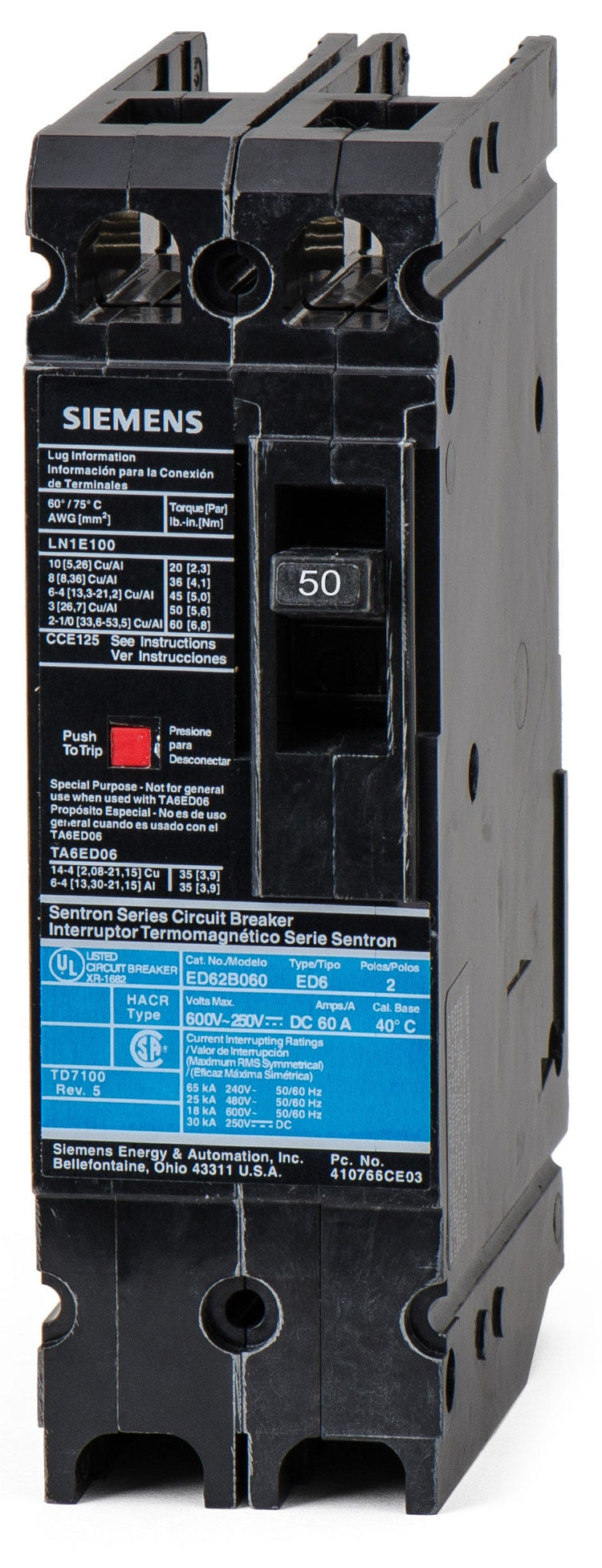

Siemens ED62B050 50A 2 Pole Molded Case Circuit Breaker

Product Description

The Siemens ED62B050 is a 2-pole, 50A molded case circuit breaker from the Sentron family, engineered for commercial distribution. It provides reliable long-time and instantaneous (LI) overcurrent protection. This bolt-on MCCB installs into Siemens P2, P3, P4, and P5 panelboards. It accepts 10-1/0 AWG copper or aluminum wire via load-side lugs. Rated for 600VAC, with an interrupting capacity of 65kA at 240V. It is HACR rated and reverse feed capable.

• 2-pole, 50A molded case circuit breaker
• Provides long-time and instantaneous (LI) overcurrent protection
• HACR rated and reverse feed capable

Product Highlights

The Siemens ED62B050 offers reliable overcurrent protection for commercial distribution systems. It is compatible with Siemens P2, P3, P4, and P5 panelboards.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: ED62B050

Technical Specifications

• Brand: Siemens
• Series: ED6
• Part Number: ED62B050
• Amperage: 50A
• Voltage: 240VAC, 480VAC, 600VAC, 250VDC
• Poles: 2
• Phase: 1
• AIC Rating: 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC
• Mounting Style: Bolt-On
• Terminal Type: Lugs
• For Use With: Siemens P2, P3, P4, P5 Panelboards, Switchboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 10-1/0 AWG (Cu/Al)
• Max Wire: 1/0 AWG
• Min Wire: 10 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release
• Accessories: Load Lugs
• Standards: CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
• Approval: CSA, IEC, UL
• Temp Rating: 40C
• Construction Features: HACR Rated, Reverse Feed
