Product Description

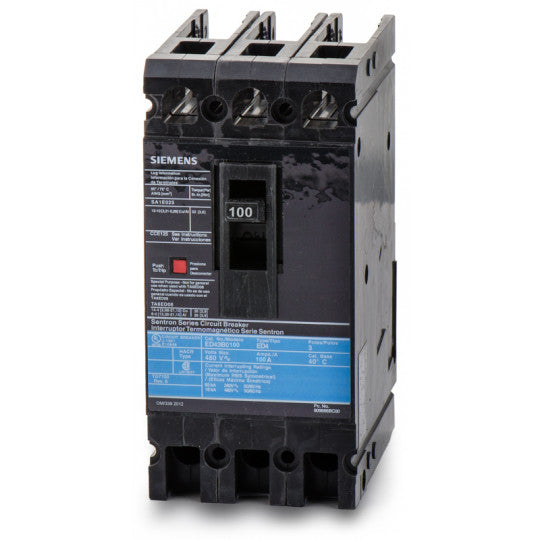

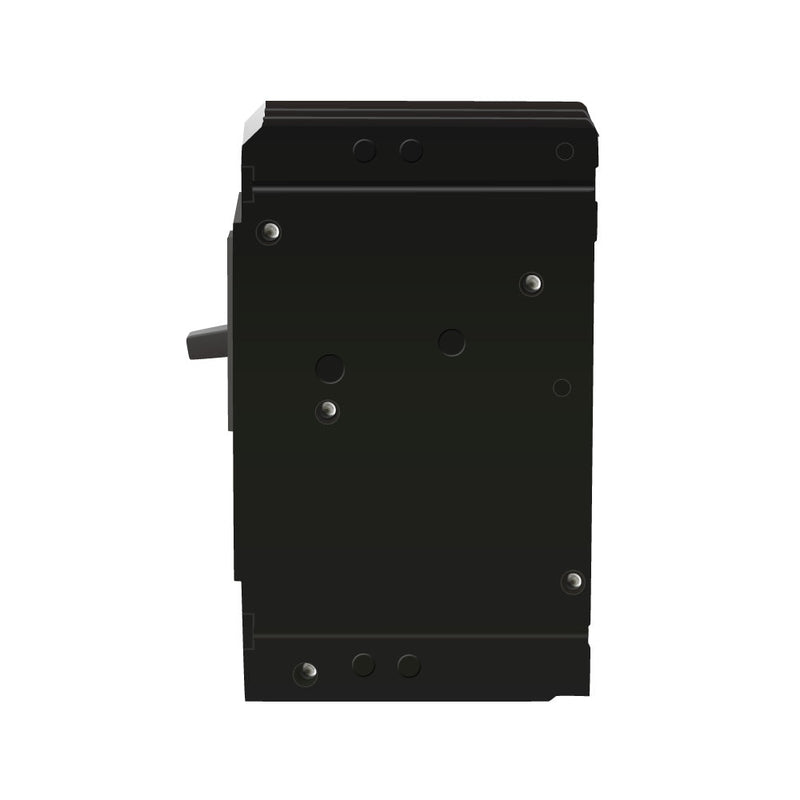

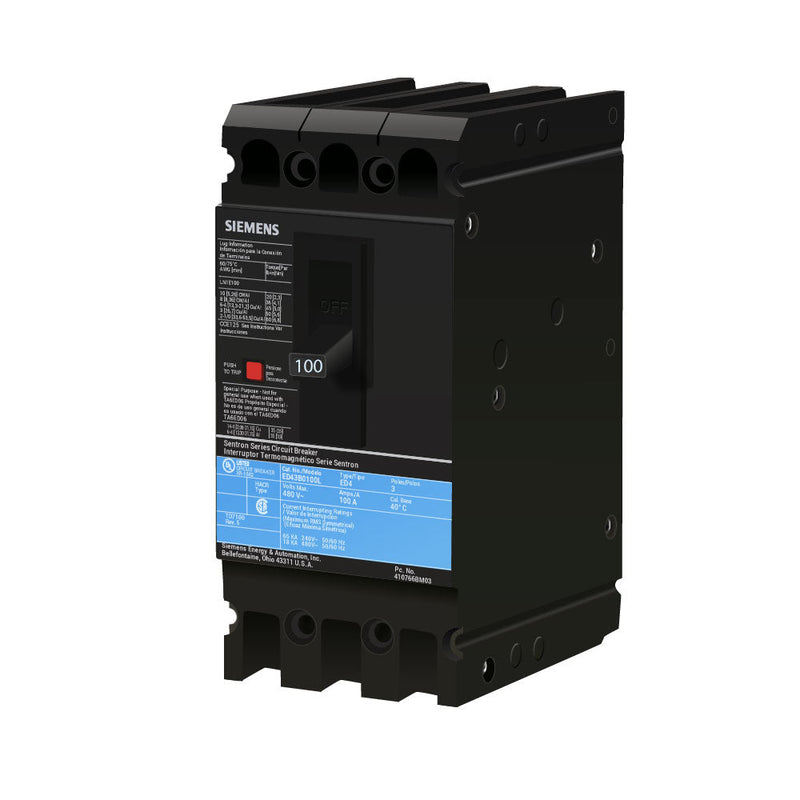

The SIEMENS ED43B100L is a circuit breaker from the SENTRON series, engineered for electrical protection. Rated for 100 amperes, it handles significant current for various applications. Operating at 480 Volts AC and 50/60 Hz, with an interrupting capacity of 18 kA, it protects against overloads and short circuits. It is designed for panel mounting with line side lugs.
- Rated for 100 Amperes
- Voltage Rating of 480 Volts AC at 50/60 Hz
- Meets UL 489 and IEC 60947-2 standards
Product Highlights
The SIEMENS ED43B100L circuit breaker provides reliable protection for electrical circuits in industrial and commercial applications.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: ED43B100L
-
Country of Origin: Mexico
Technical Specifications
-
Brand: SIEMENS
-
MPN: ED43B100L
-
Product Type: CIRCUIT_BREAKER
-
Manufacturer: Siemens
-
Product Group: BISS
-
Number of Items: 1
-
Product Line: SENTRON
-
UPC: 783643236233
-
Weight: 4.00 lbs (1.81 kg)
-
Current Rating: 100 Amperes
-
Number Of Poles: 3
-
Voltage Rating: 480 Volts AC at 50/60 Hz
-
Interrupting Capacity: 18 kA at 480V AC
-
Trip Unit: Thermal-Magnetic
-
Frame Type: ED Frame
-
Operating Temperature: 40°C
-
Standard Compliance: Meets UL 489 and IEC 60947-2 standards
-
Length: 3 inches
-
Mounting Style: Feed-through configuration
-
Width: 6.35 inches
-
Height: 3.92 inches
-
Category: Circuit Breaker
-
Item Subcategory: Molded Case
-
Family: Sentron Series
-
Type: ED
-
Voltage: 480 AC
-
Amperage: 100
-
Phase: 3
-
Poles: 3
-
AIC rating: 18kA@480V
-
Connection: Feed-Thru
-
Functions: LI - Long-Time and Instantaneous
-
Temp Rating: -13°F - 158°F (-25°C - 70°C)
-
Protection: Thermal Magnetic
-
Certification: Ul Listed, IEC
-
Wire Size: 10 to 1/0 AWG (CU/AL)
-
FREQUENCY: 50/60 HZ
-
CAL BASE: 40C
