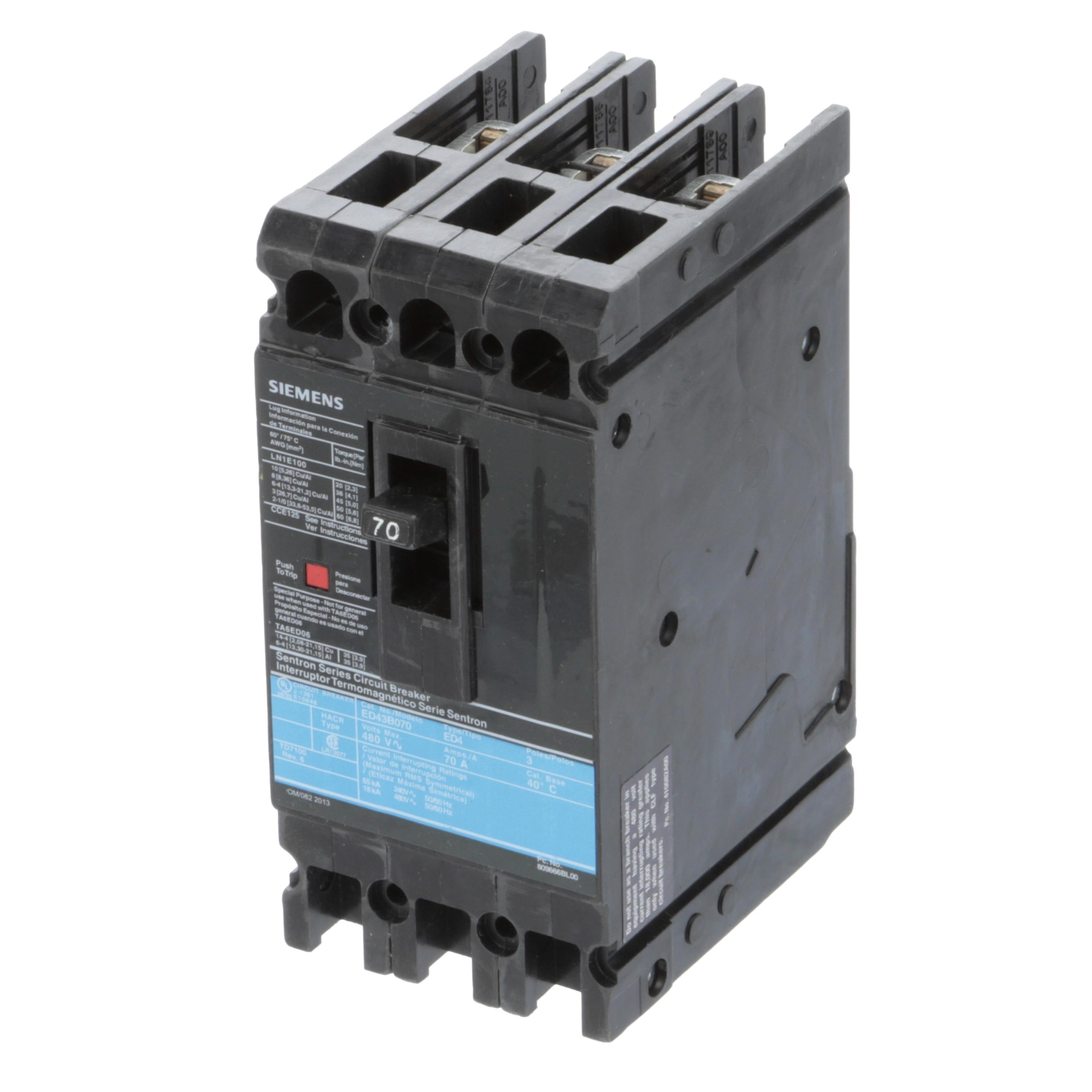

Siemens ED43B070L 3-Pole 70 Amp Circuit Breaker Lugs

Product Description

The Siemens ED43B070L is a low voltage Sentron molded case circuit breaker with a thermal-magnetic trip unit. This standard 40C breaker features an ED frame with standard breaking capacity. Rated at 70A, 3-pole, and 18kAIC at 480V, it has a non-interchangeable trip unit and line/load side lugs (LN1E100). It supports a wire range of 10 - 1/0AWG (CU/AL).

• Thermal-magnetic trip unit
• Standard 40C breaker ED frame
• Standard breaking capacity

Product Highlights

Sentron molded case circuit breaker with thermal-magnetic trip, line/load side lugs, and a wire range of 10 - 1/0AWG (CU/AL).

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: ED43B070L
• Country of Origin: Mexico

Technical Specifications

• GTiN: 00783643236202
• Type: ED4
• Brand: Siemens
• Frame: ED
• Width: 6.000
• Height: 7 Inch
• Length: 4
• Current: 70 Amp
• Voltage: 480 VAC
• Frequency: 50/60 Hz
• Sub Brand: Sentron
• Trip Type: Thermal-Magnetic
• Interrupt Rating: 18 kAIC
• Operating Temperature: 40C
• Catalog Number: ED43B070L
• Manufacturer: Siemens
• Country of Origin: Mexico
• Made in USA: No
• Number of Poles: 3 Pole
• Frequency Rating: 50/60 HZ
• Standard: HACR
• UPC: 783643236202
• Item Type: ED4
• Voltage Rating: 480//250
• Amperage: 70A
• Poles: 3-Pole
• Breaking Capacity: 18 kA
• Trip Unit: Non-Interchangeable
• Line and Load Side Lugs: LN1E100
• Wire Range: 10 - 1/0AWG (CU/AL)
• Part Number #: ED43B070L
• Wire Size: 10 to 1/0 AWG
• UNSPSC: 39121601
