Siemens ED43B030L Sentron Molded Case Circuit Breaker 30A

Product Description

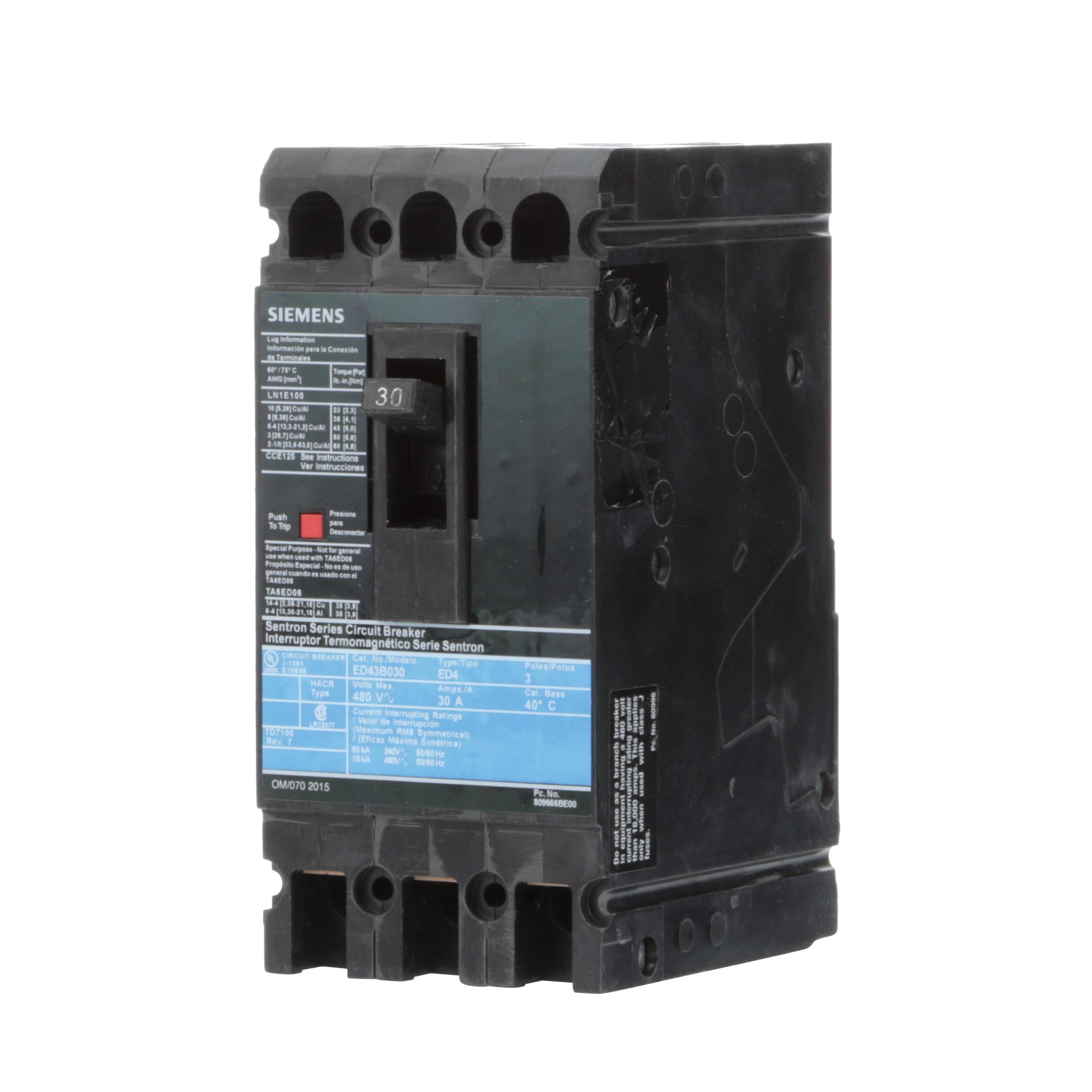

The SIEMENS ED43B030L is a low voltage Sentron molded case circuit breaker with a thermal-magnetic trip unit. This standard 40C breaker features an ED frame with standard breaking capacity and is rated at 30A, 3-pole (18KAIC at 480V). It has a non-interchangeable trip unit and line/load side lugs (LN1E100) with a wire range of 10 - 1/0AWG (CU/AL).

• Thermal-magnetic trip unit
• Line and load side lugs installed
• Standard 40C breaker application

Product Highlights

Sentron molded case circuit breaker with thermal-magnetic trip, 30A, 3-pole, and line/load side lugs.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: ED43B030L
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ED43B030L
• Manufacturer: Siemens
• Brand: Siemens
• Sub Brand: Sentron
• Country of Origin: Mexico
• Made in USA: No
• Application: Standard 40C Breaker
• Connection: Line/Load lugs installed
• Frame: ED
• Frequency Rating: 50/60 HZ
• Interrupt Rating: 18KAIC
• Number of Poles: 3
• Standard: HACR
• UPC: 783643236141
• GTIN: 00783643236141
• Item Type: ED4
• Operating Temperature: 40C
• Trip Type: Thermal-Magnetic
• Voltage Rating: 480//250
• Model / MPN: ED43B030L
• Current Rating: 30 Amp at 40 Deg C
• Terminal Type: Line and Load Side Lug
• Wire Size: 10 to 1/0 AWG Wire
• Mounting: Panel Mounting
• Temperature: 40 deg C
• Poles: 3 Pole
• Phase: 3 ph
• Voltage: 480 V AC/250 V DC
• Amperage: 30 A
• Product Type: CIRCUIT_BREAKER
