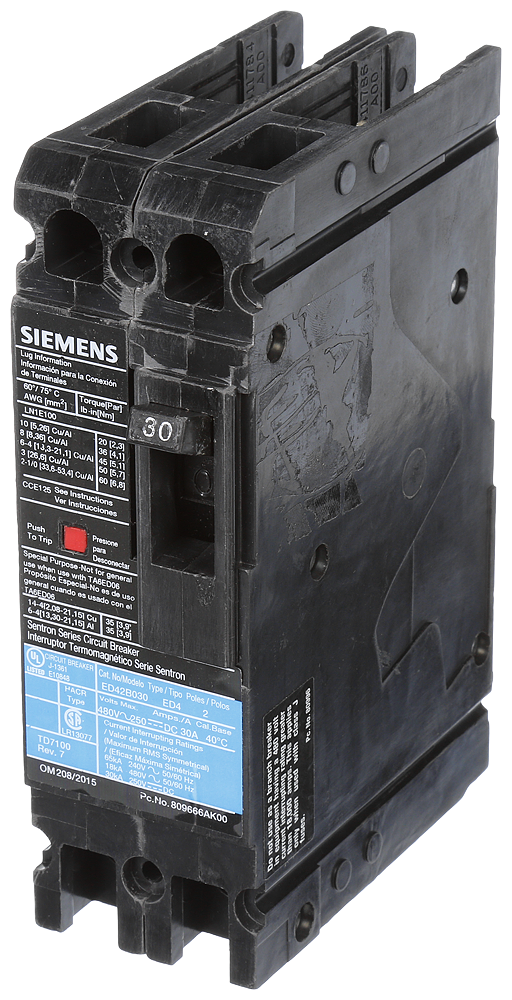

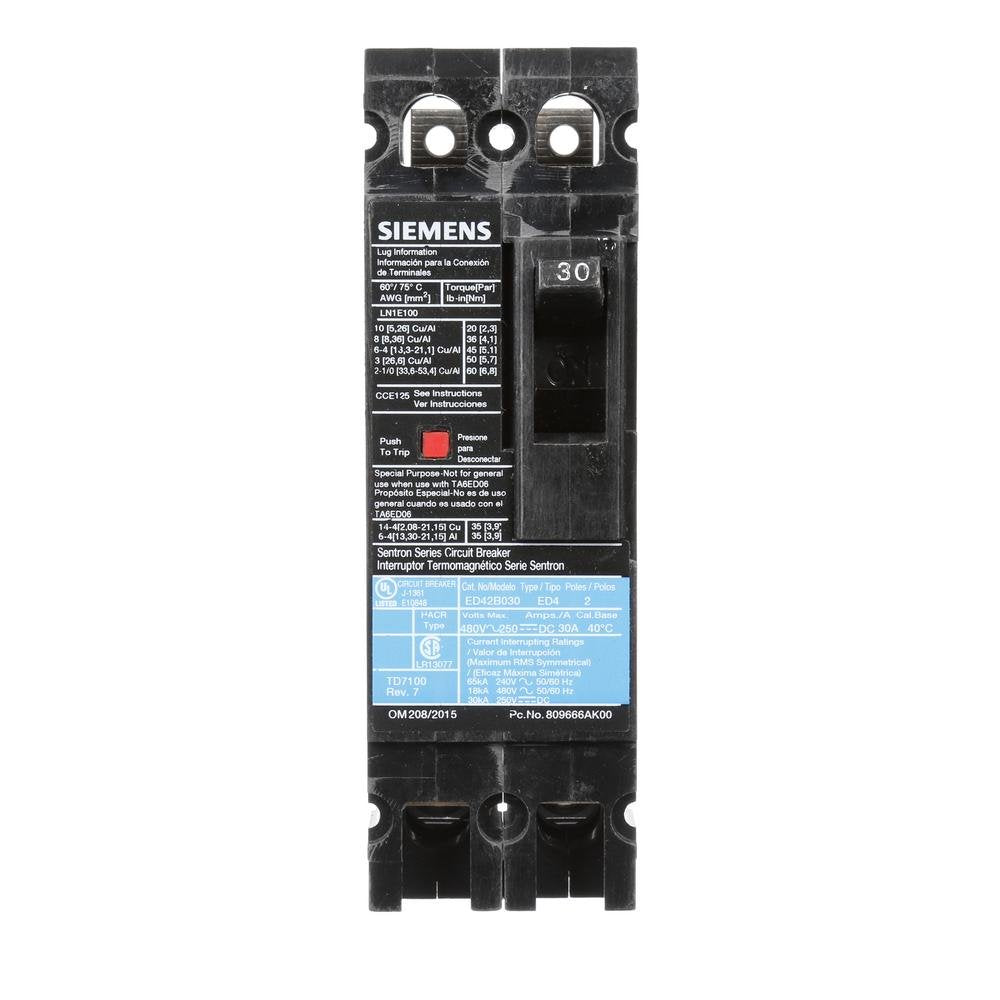

Siemens ED42B030 ED4 Breaker 2-Pole 30 Amp 480 VAC 18 kA Circuit Breaker Lug

Product Description

The Siemens ED42B030 is a 2-pole, 30 Amp circuit breaker designed for 480 VAC applications. This Sentron series breaker features a thermal-magnetic trip unit and a standard interrupting capacity of 18 kAIC at 480V. It is suitable for standard 40C breaker applications and includes load side lugs for connection.

• Rated for 30 Amp
• Features a thermal-magnetic trip type
• Interrupt rating of 18 kAIC at 480V

Product Highlights

This Siemens breaker is designed for circuit protection with a 30A current rating and 480V voltage rating.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: ED42B030
• Country of Origin: Mexico

Technical Specifications

• Type: ED4
• Brand: Siemens
• Frame: ED
• Width: 3.900 in
• Height: 5.7 Inch
• Length: 7.8 Inch
• Current: 30 Amp
• Amperage: 30 Amp
• Standard: HACR
• Frequency: 50/60 Hz
• Sub Brand: Sentron
• Trip Type: Thermal Magnetic
• Applications: Standard 40C Breaker
• Number of Poles: 2 Pole
• Interrupt Rating: 18 kAIC
• Country of Origin: Mexico
• Temperature Rating: -40 degrees C
• Operating Temperature: 40C
• Catalog Number: ED42B030
• Manufacturer: Siemens
• Made in USA: No
• Frequency Rating: 50/60 HZ
• UPC: 783643209244
• GTIN: 00783643209244
• Item Type: ED4
• Voltage Rating: 480 V
• Series: Sentron Series
• Current Rating: 30 A
• Frame Type: ED Frame
