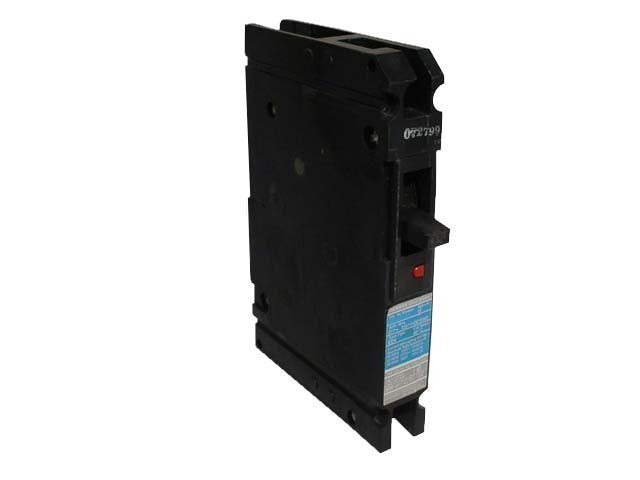

Siemens ED41B035L BRKR ED4 1P 480V 35A

Product Description

The Siemens ED41B035L is a low voltage molded case circuit breaker designed for reliable power distribution. This single-pole circuit breaker operates at 480V and offers a 35A amperage rating. It includes a thermal-magnetic trip unit, providing both overcurrent and short-circuit protection.

• 1-pole design with 35A capacity
• Rated for 22kAIC at 277V
• Thermal-magnetic trip unit for reliable operation

Product Highlights

The Siemens ED41B035L is designed to meet standard 40C operating conditions and features a non-interchangeable trip unit. It includes line and load side lugs suitable for wire ranges from ten to one aught copper or aluminum on the line and ten to four copper or aluminum on the load side.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• MPN: ED41B035L
• Type: ED4
• Voltage: 277 Volt
• Amperage: 35 Amp
• Frame: ED
• Width: 1 inch
• Height: 5 inches
• Length: 6 inches
• Interrupt Rating: 22 kAIC
• Applications: Standard 40C Breaker
• TC Connection: Line/Load lugs installed
• Number of Poles: 1 Pole
• Operating Temperature: 40C
