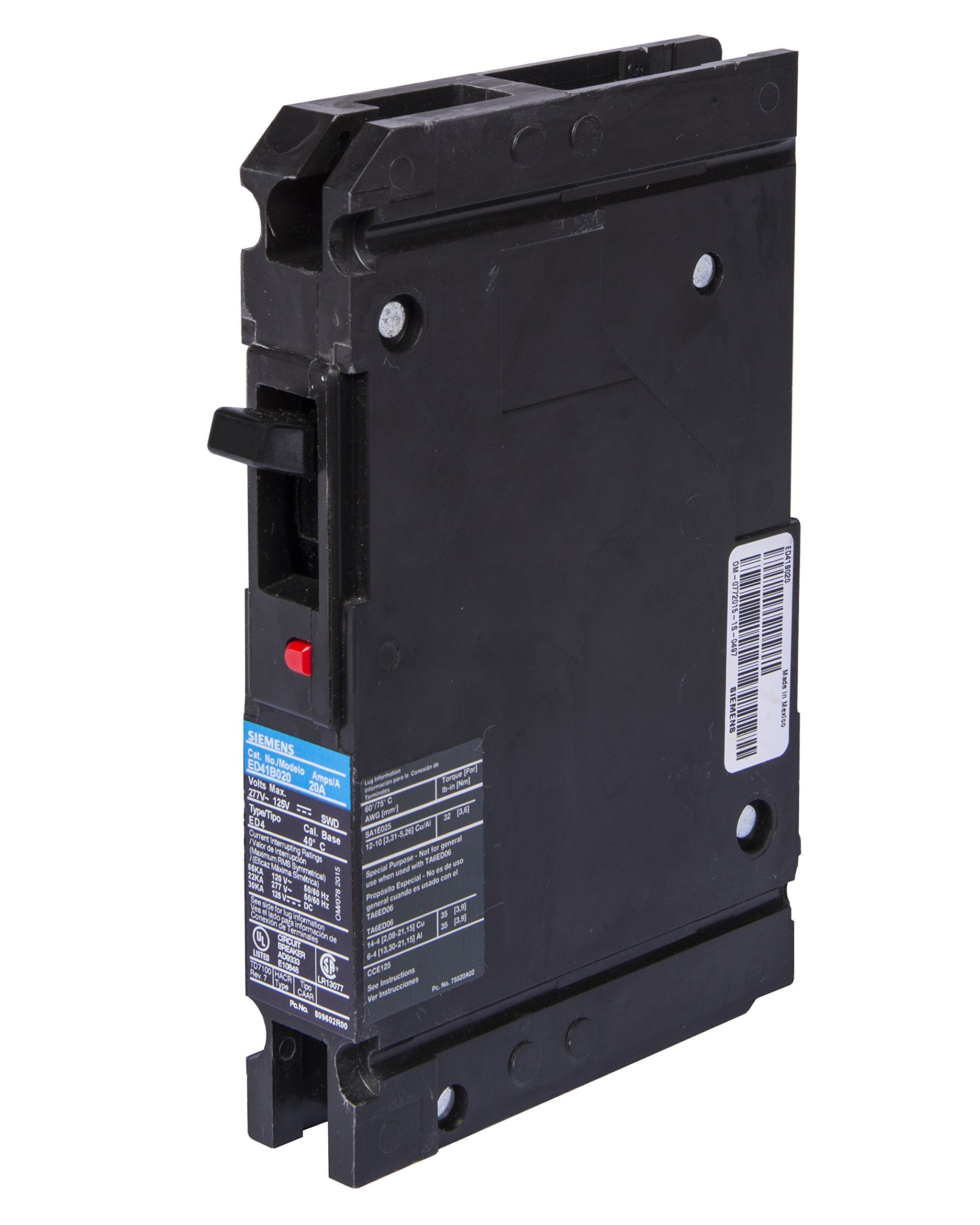

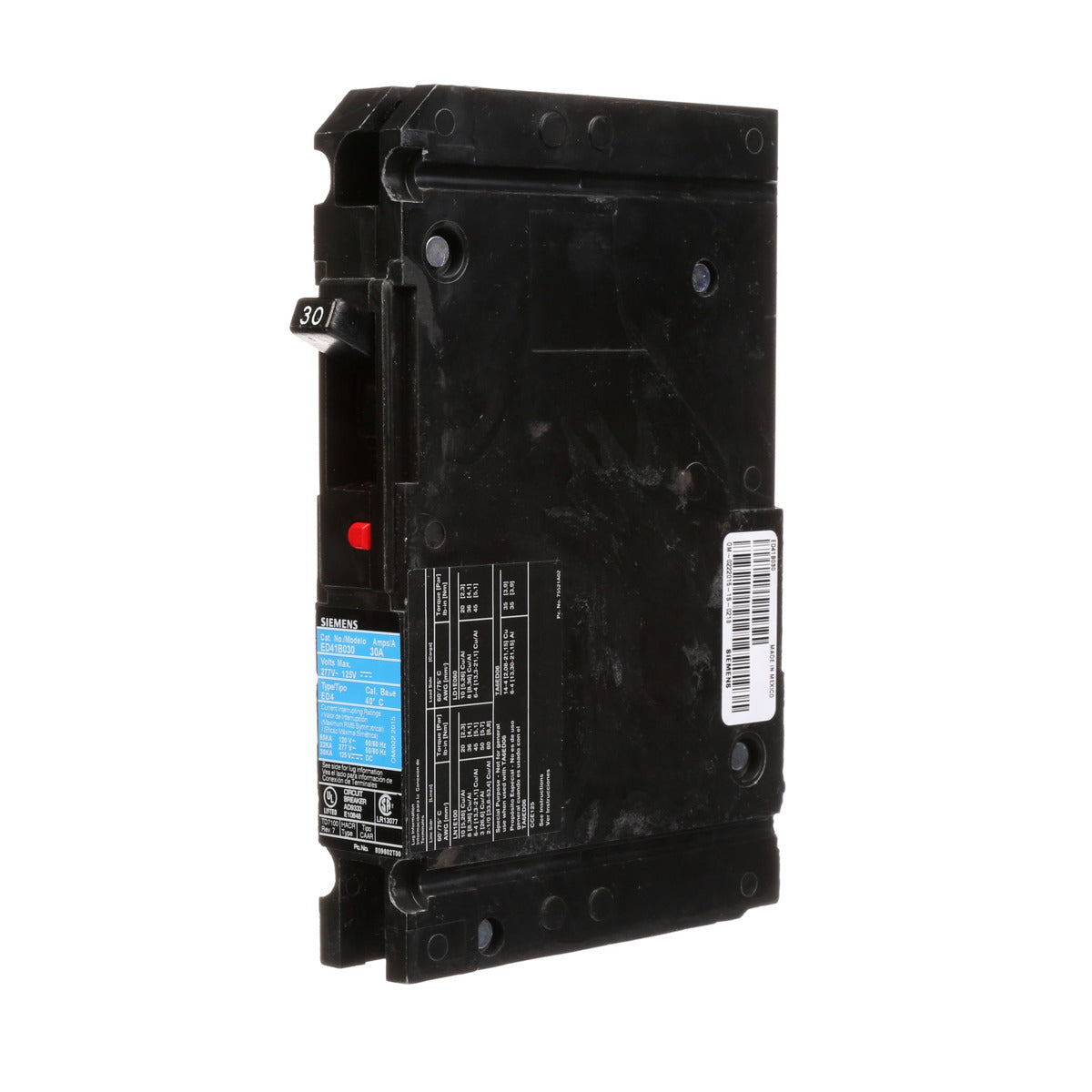

Siemens ED41B030 Brkr ED4 1P 480V 30A

Product Description

The Siemens ED41B030 Brkr ED4 1P 480V 30A circuit breaker is for use in individual enclosures, switchboards, and panelboards. This ED frame Sentron series circuit breaker provides overload and short circuit protection using a time delay thermal trip element and an instantaneous magnetic trip element. It is suitable for standard 40 deg C breaker applications.

• Ed Frame Sentron Circuit Breaker
• 120/277V Rated
• Line Side Lugs Not Included

Product Highlights

The Siemens ED41B030 circuit breaker offers reliable circuit protection with thermal/magnetic trip functionality. It is designed for versatile application in various electrical systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: ED41B030
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ED41B030
• Manufacturer: Siemens
• Brand: Siemens
• Number of Poles: 1
• Model / MPN: ED41B030
• Product Type: CIRCUIT_BREAKER
• Frame: ED
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 22 kA
• Mounting Type: Panel
• Phase: 1
• Temperature Rating: 40 deg C
• Trip Type: Thermal/Magnetic
• Type: Type ED4 Low Voltage
• Voltage Rating: 120/277 VAC/125 VDC
• Wire Size: 10 to 4 AWG
• Application: For standard 40 deg C breaker
• Standard & Approvals: HACR Rated, UL 489
• Amperage Rating: 30 A
• Connection Type: Load Lug
