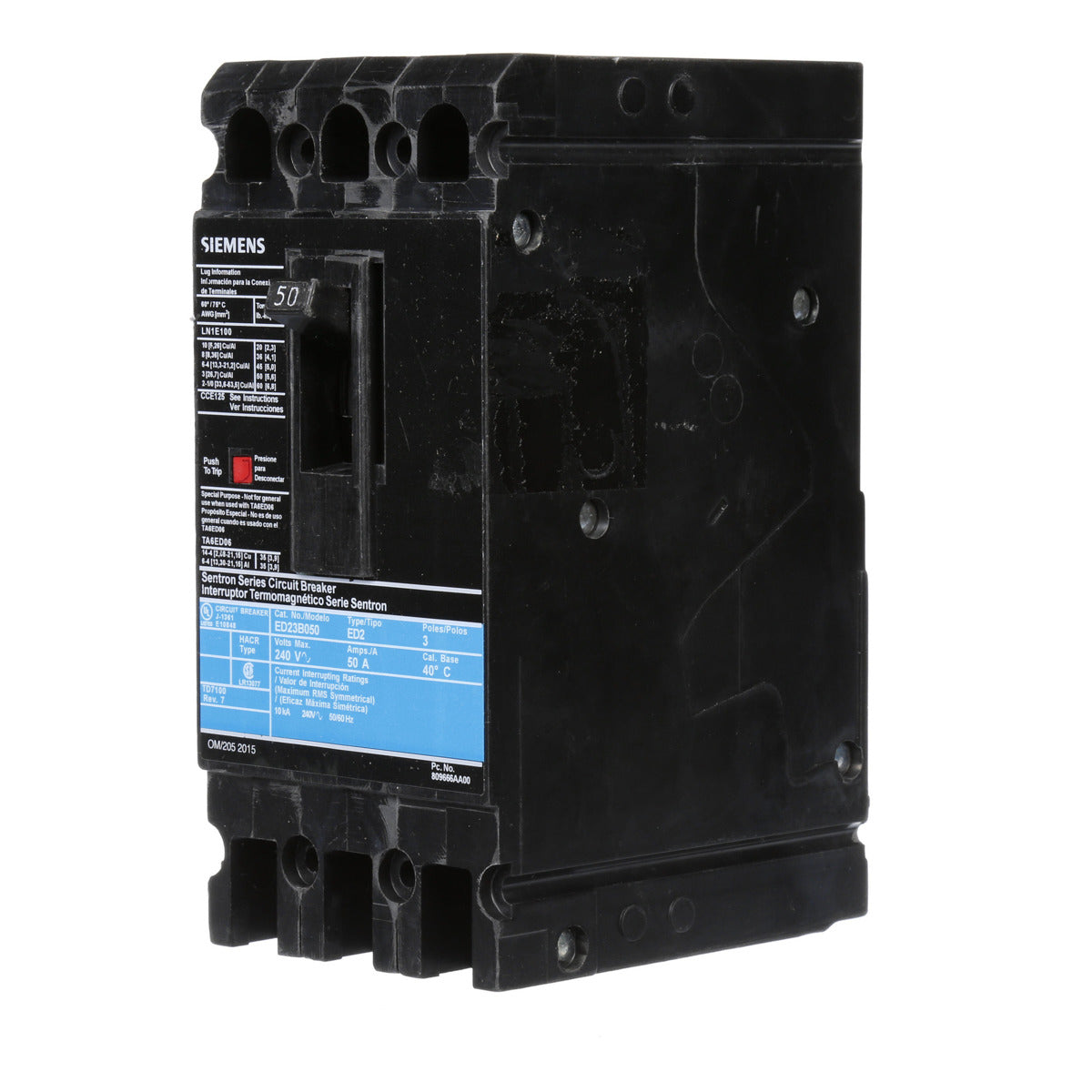

Siemens ED23B050 Sentron Molded Case Circuit Breaker 50A

Product Description

The SIEMENS ED23B050 is a low voltage Sentron molded case circuit breaker with a thermal-magnetic trip unit, designed as a standard 40C breaker with standard breaking capacity. Rated at 50A and 3-pole, it offers a 10KAIC at 240V. This non-interchangeable trip unit features load lugs only (LN1E100) with a wire range of 10 - 1/0AWG (CU/AL).

• Thermal-magnetic trip unit
• Standard 40C breaker
• 10KAIC at 240V

Product Highlights

The SIEMENS ED23B050 circuit breaker is suitable for circuit protection applications requiring reliable performance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: ED23B050
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ED23B050
• Manufacturer: Siemens
• Brand: Siemens
• Sub Brand: Sentron
• Country of Origin: Mexico
• Made in USA: No
• Actuator: Varying
• Application: Standard 40C Breaker
• Enclosure: Varying
• Frame: ED Frame
• Frequency Rating: 50/60 HZ
• Interrupt Rating: 10KAIC
• Number of Poles: 3
• Standard: HACR
• UPC: 783643209039
• GTIN: 00783643209039
• Item Type: ED2
• Operating Temperature: 40C
• Trip Type: Thermal-Magnetic
• Voltage Rating: 240VAC OR 125VDC OR 250VDC
• Current Rating: 50 A
• Series: Sentron Series
• Type: Thermal/Magnetic
• Part Status: Active
• MPN: ED23B050
