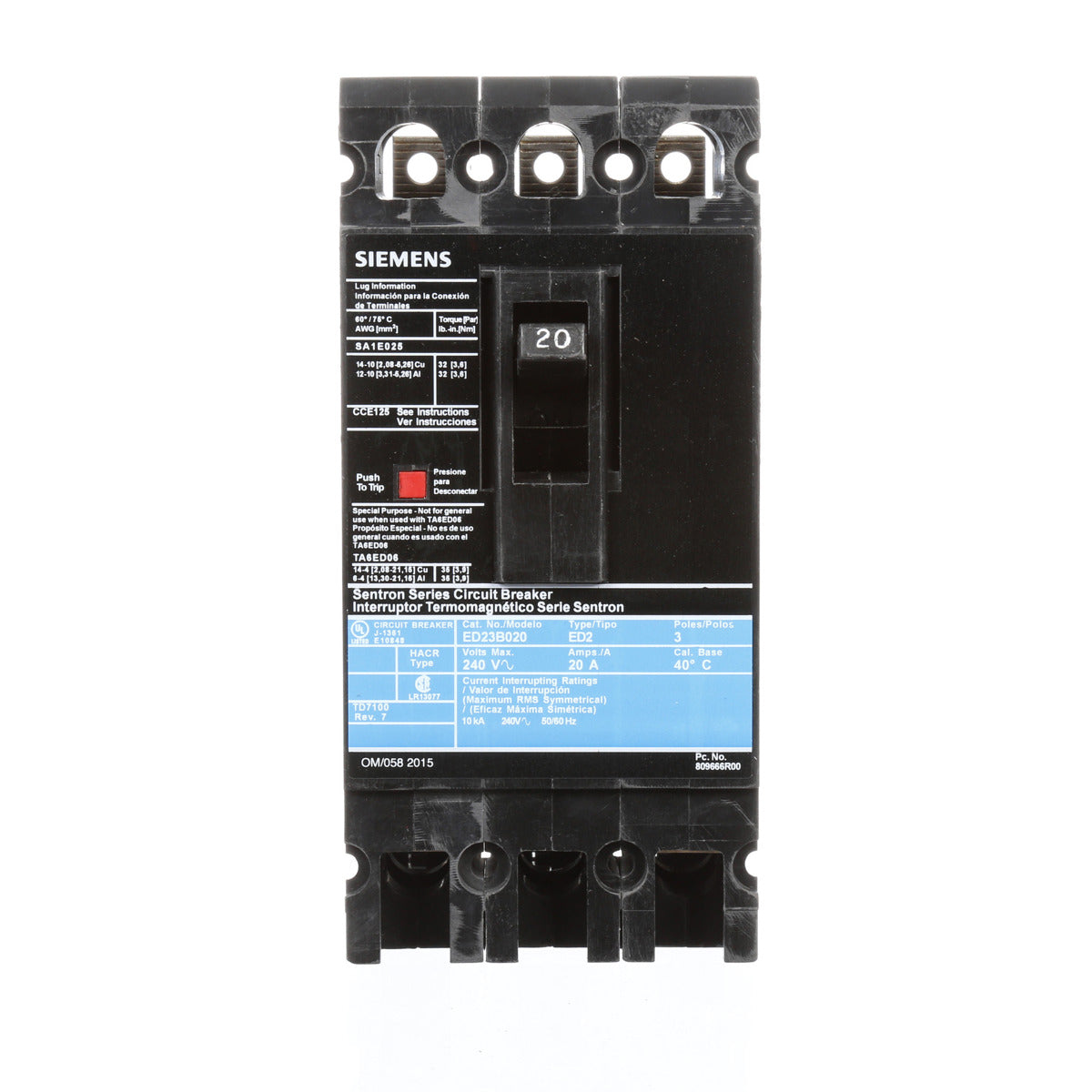

Siemens ED23B020 Sentron Molded Case Circuit Breaker 20A

Product Description

The SIEMENS ED23B020 is a low voltage Sentron molded case circuit breaker with a thermal-magnetic trip unit. This standard 40C breaker features an ED frame with standard breaking capacity and a non-interchangeable trip unit. It supports load lugs only and a wire range of 14 - 10AWG (CU) / 12 - 10AWG (AL).

• Thermal-magnetic trip unit
• Standard breaking capacity
• Load lugs only

Product Highlights

The SIEMENS ED23B020 circuit breaker provides reliable circuit protection in a compact design.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: ED23B020
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ED23B020
• Manufacturer: Siemens
• Brand: Siemens
• Sub Brand: Sentron
• Country of Origin: Mexico
• Made in USA: No
• Application: Standard 40C Breaker
• Frame: ED Frame
• Frequency Rating: 50/60 HZ
• Interrupt Rating: 10KAIC
• Number of Poles: 3
• Standard: HACR
• UPC: 783643208971
• GTIN: 00783643208971
• Item Type: ED2
• Operating Temperature: 40C
• Trip Type: Thermal-Magnetic
• Voltage Rating: 240VAC OR 125VDC OR 250VDC
• Current Rating: 20 A
• Series: Sentron Series
• MPN: ED23B020
• Type: Thermal/Magnetic
