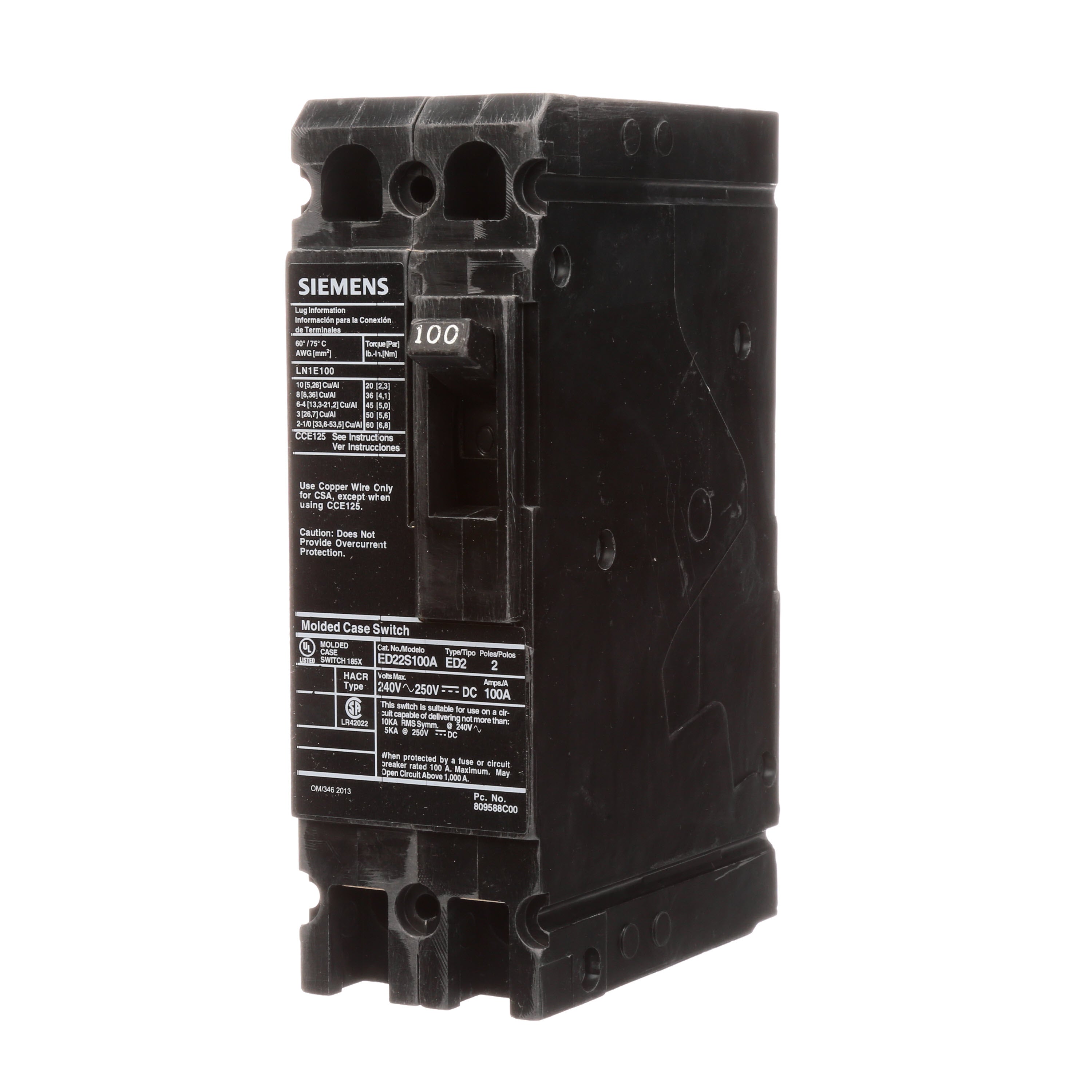

Siemens ED22S100A Breaker ED 2P 100A 24

Product Description

The SIEMENS ED22S100A is a low voltage Sentron molded case circuit breaker with a magnetic only trip unit. This molded case switch has an ED frame with standard breaking capacity. Rated at 100A, 2-pole, 240V, with 1000A self-protective instantaneous override. Features load lugs only (LN1E100) and a wire range of 10 - 1/0AWG (CU/AL).

• Low voltage Sentron molded case circuit breaker
• 100A 2-pole 240V 1000A self-protective instantaneous override
• Wire range 10 - 1/0AWG (CU/AL)

Product Highlights

The SIEMENS ED22S100A circuit breaker is suitable for molded case switch applications. It has a thermal-magnetic trip type and an interrupt rating of 10 kAIC.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: ED22S100A
• Country of Origin: Mexico

Technical Specifications

• Type: ED2
• Brand: Siemens
• Frame: ED
• Width: 7.000
• Height: 6 Inch
• Length: 3 Inch
• Amperage: 100 Amp
• Sub Brand: Sentron
• Trip Type: Thermal-Magnetic
• Trip Range: 1000
• Applications: Molded Case Switch
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
• Operating Temperature: 40C
• Country of Origin: Mexico
• Made in USA: No
• Frequency Rating: 50/60 HZ
• Special Features: LI
• Standard: HACR
• UPC: 783643211001
• GTIN: 00783643211001
• Item Type: ED2
• Voltage Rating: 240VAC OR 125VDC OR 250VDC
• MPN: ED22S100A
