Product Description

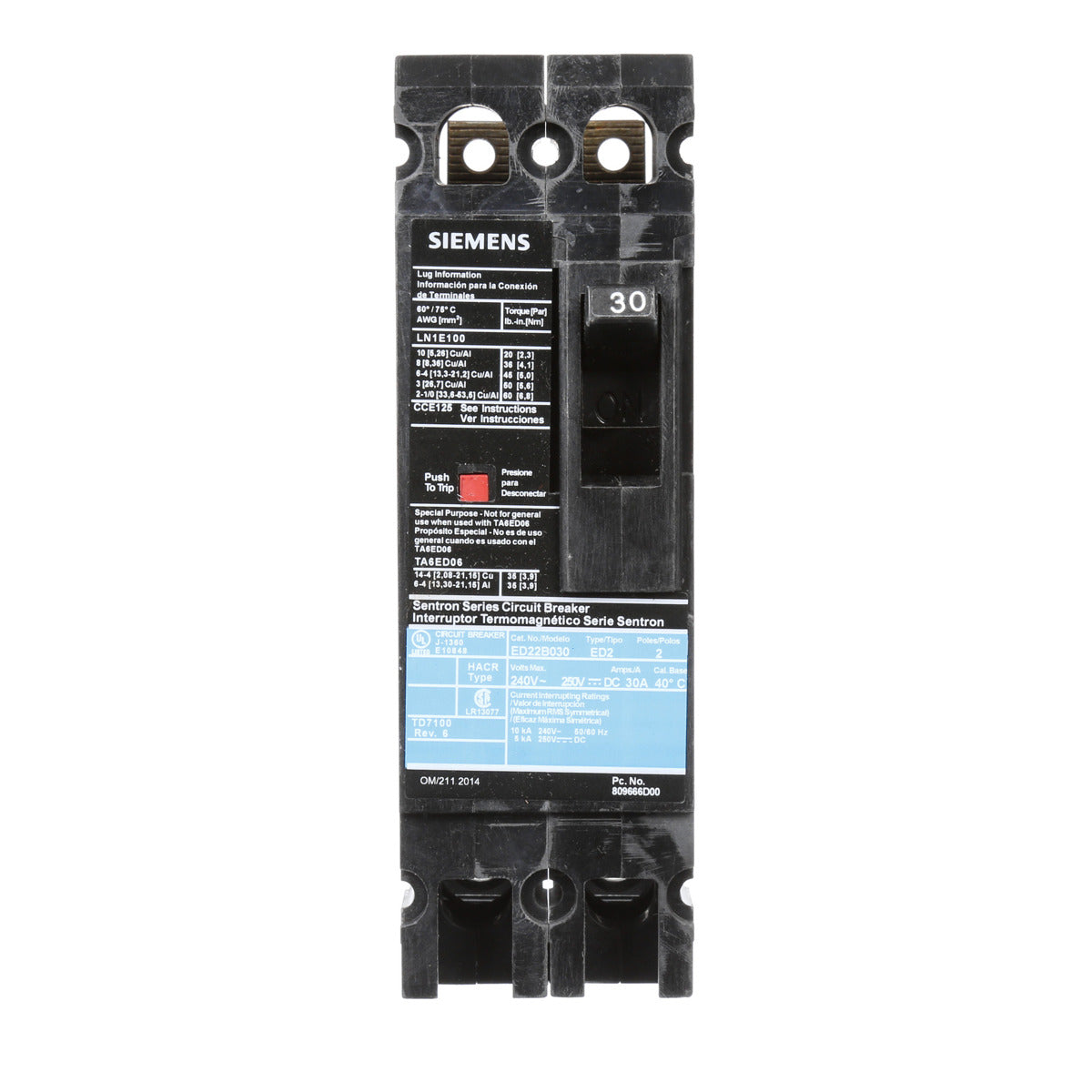

The Siemens ED22B030 is a low voltage molded case circuit breaker. This breaker is designed for applications that require reliable circuit protection. The device features a thermal-magnetic trip unit for enhanced performance and safety.
- Rated for 30 Amperes with a voltage rating of two hundred forty Volts AC.
- Two poles, making it suitable for various electrical circuits.
- Interrupting rating of ten kiloamperes at two hundred forty Volts AC, ensuring safe operation during faults.
Product Highlights
This product is ideal for both residential and commercial electrical installations that require dependable circuit protection. Its thermal-magnetic trip unit offers effective response to overloads and short circuits.
Product Information
Standard Information
-
Brand: Siemens
-
Manufacturer Part Number: ED22B030
Technical Specifications
-
Catalog Number: ED22B030
-
Number of Poles: 2
-
Rated Voltage: 240VAC, 125VDC, 250VDC
-
Rated Current: 30 Amperes
-
Frequency Rating: 50/60 Hertz
-
Interrupting Capacity: 10KAIC
-
Frame Size: ED
-
Country of Origin: Mexico
-
Operating Temperature: 40 Degrees Celsius
