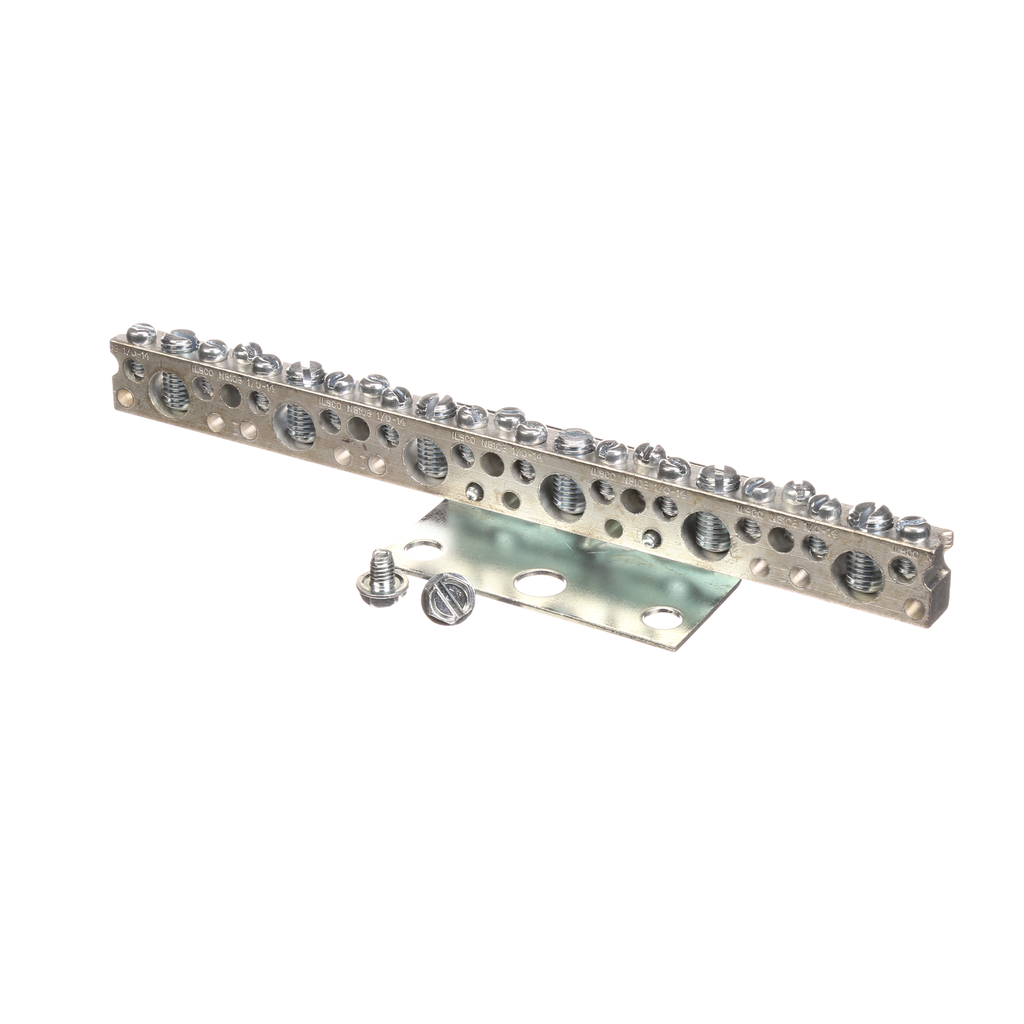

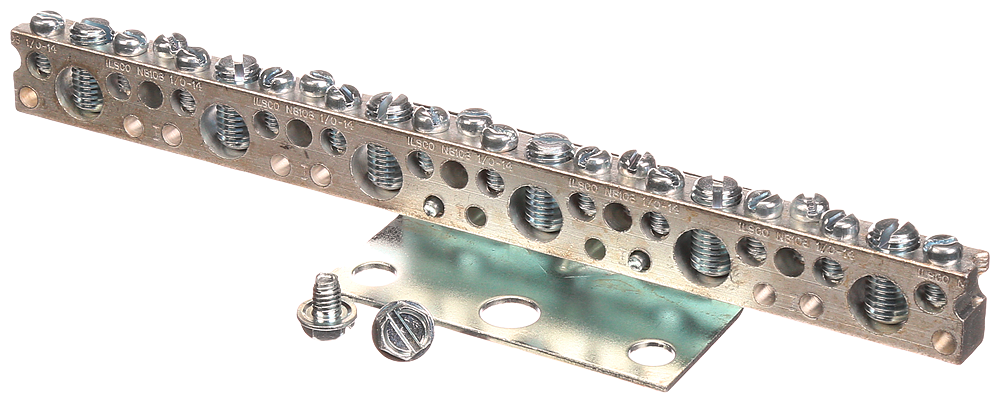

Siemens ECLX074M 7 Inch 23-Position Meter Load Center Ground Bar Kit

Product Description

Siemens ECLX074M is a 7 inch ground bar kit designed for load centers. This product includes 23 positions for grounding connections, ensuring safe and efficient installation. The large connectors accommodate up to one number fourteen to one number zero, or two to three number fourteen to number ten wires. The small connectors are suitable for one number fourteen to number six, or two number fourteen to number twelve wires. The connectors come with 17 small and six large options, allowing flexibility in wiring.

• 7 inch length for compact installation
• Supports residential applications
• UL listed for safety compliance

Product Highlights

This ground bar kit is ideal for use in residential load centers. It provides reliable connections for grounding wires.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• MPN: ECLX074M
• Length: 7.5 inches
• Width: 0.5 inches
• Height: 1 inch
• Weight: 0.3 lb
• Country of Origin: Mexico
• Applications: Residential
• Number of Connectors: 17 small and 6 large
