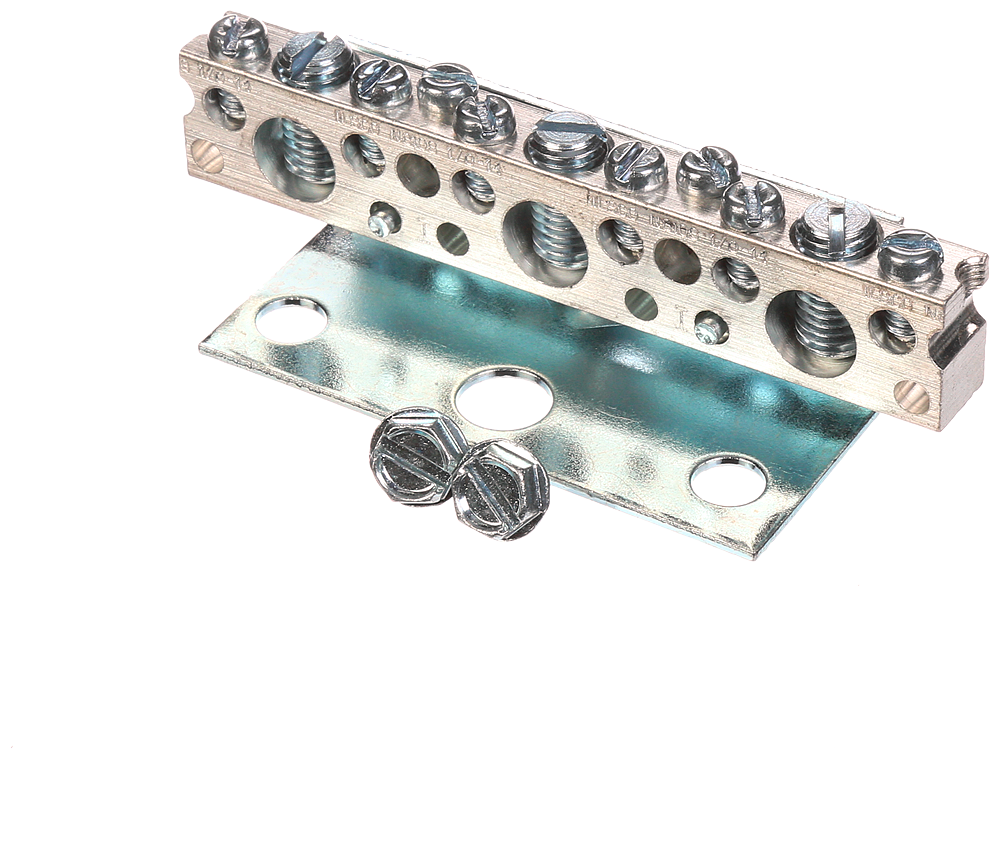

Siemens ECLX071M 3-1/2 Inch 11-Position Meter Load Center Ground Bar Kit

Product Description

The Siemens ECLX071M is a three-and-a-half-inch ground bar kit designed for use in residential load centers. This kit includes connectors suitable for both aluminum and copper wires. The large connectors support one #14-1/0 or up to three #14-10 wires, while the small connectors can accommodate one #14-6 or two #14-12 wires.

• Includes eight small and three large connectors.
• Designed for easy bolt-on installation.
• Suitable for low voltage applications in residential environments.

Product Highlights

This load center accessory is ANSI certified and CSA, UL listed. It provides effective grounding solutions for various electrical applications.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• MPN: ECLX071M
• Product UPC: 78364345266
• Weight: 0.190 lb
• Dimensions: Width 3 inches, Height 1/2 inch, Length 2 inches
• Applications: Residential
• Country of Origin: Mexico
• Number of Spaces: N/A
