Product Description

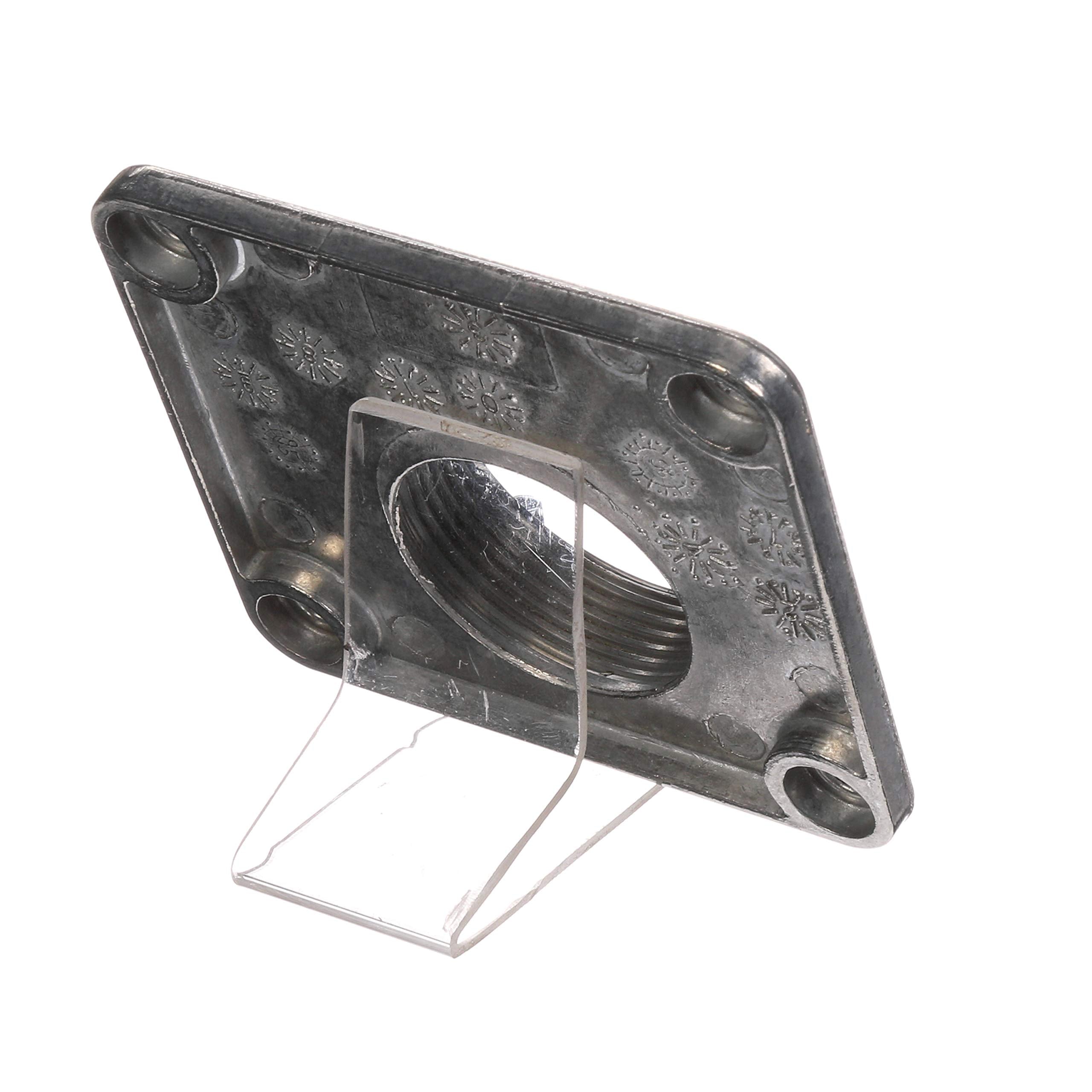

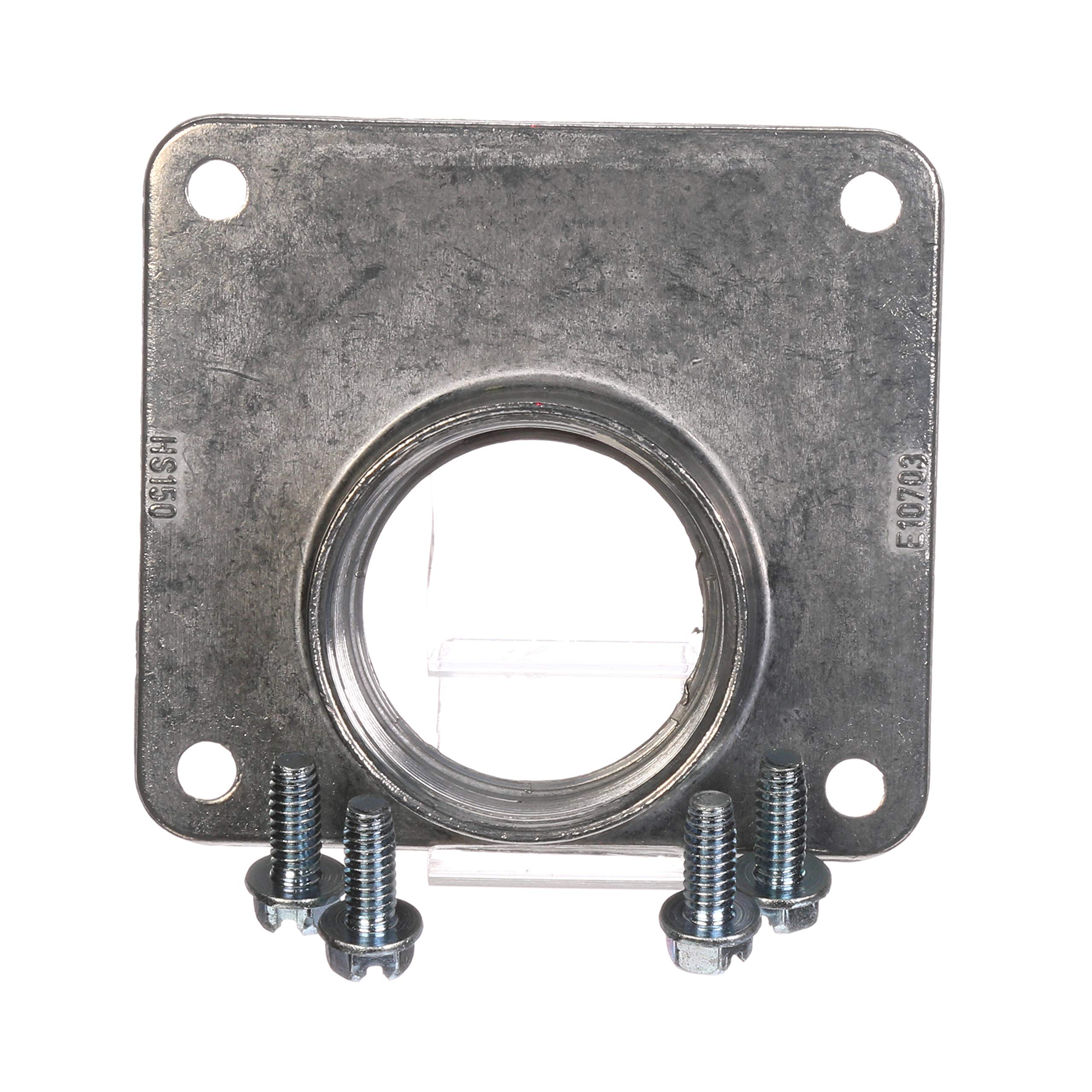

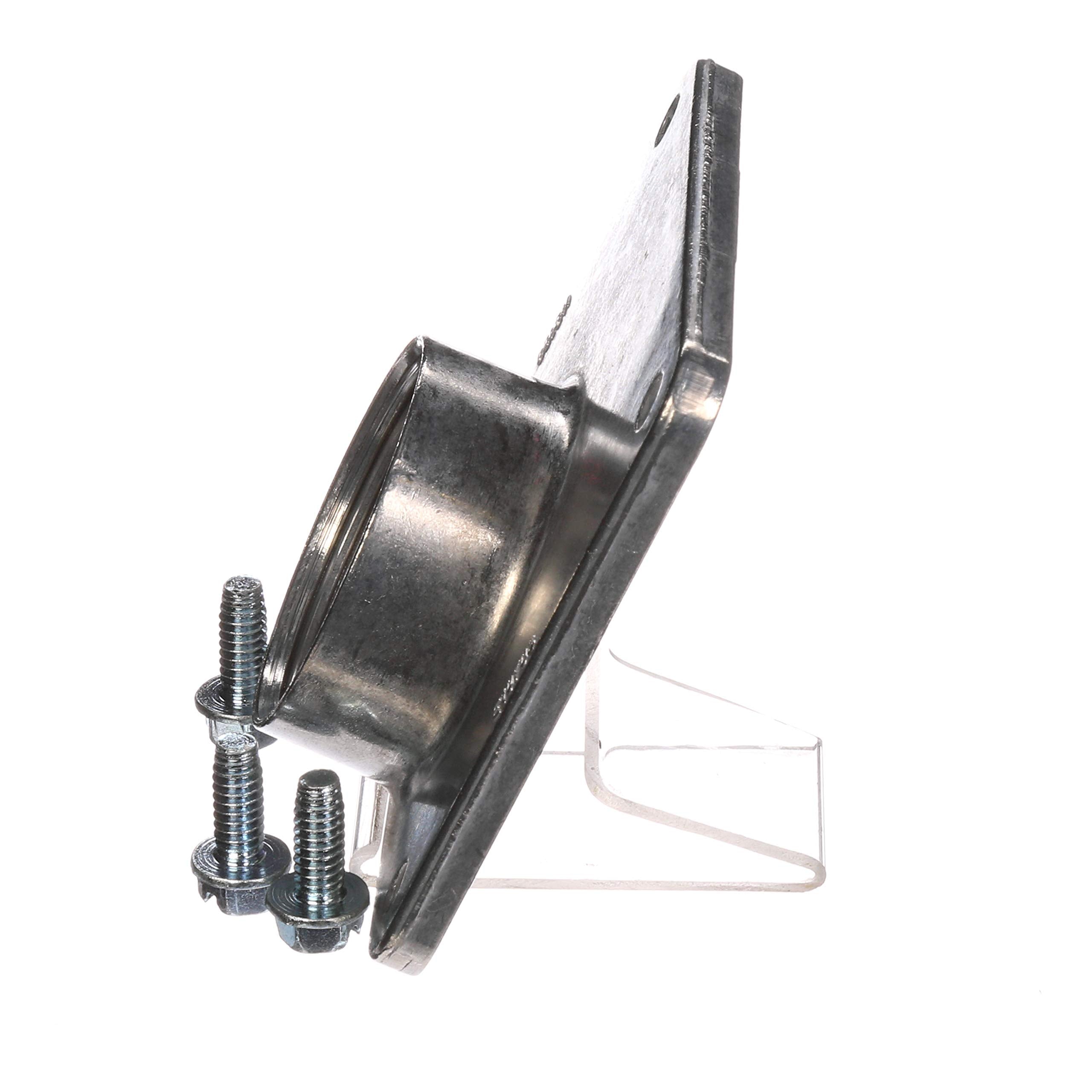

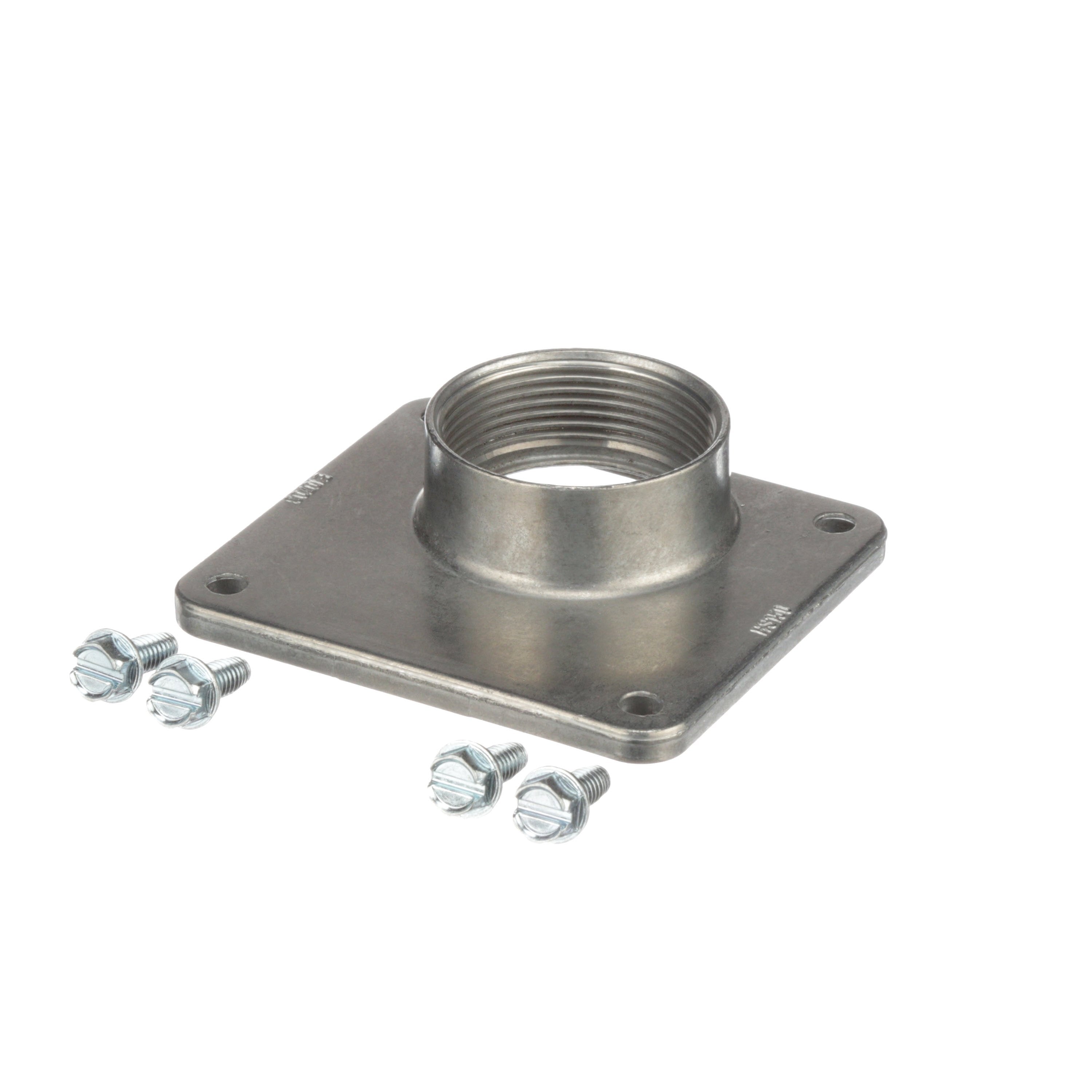

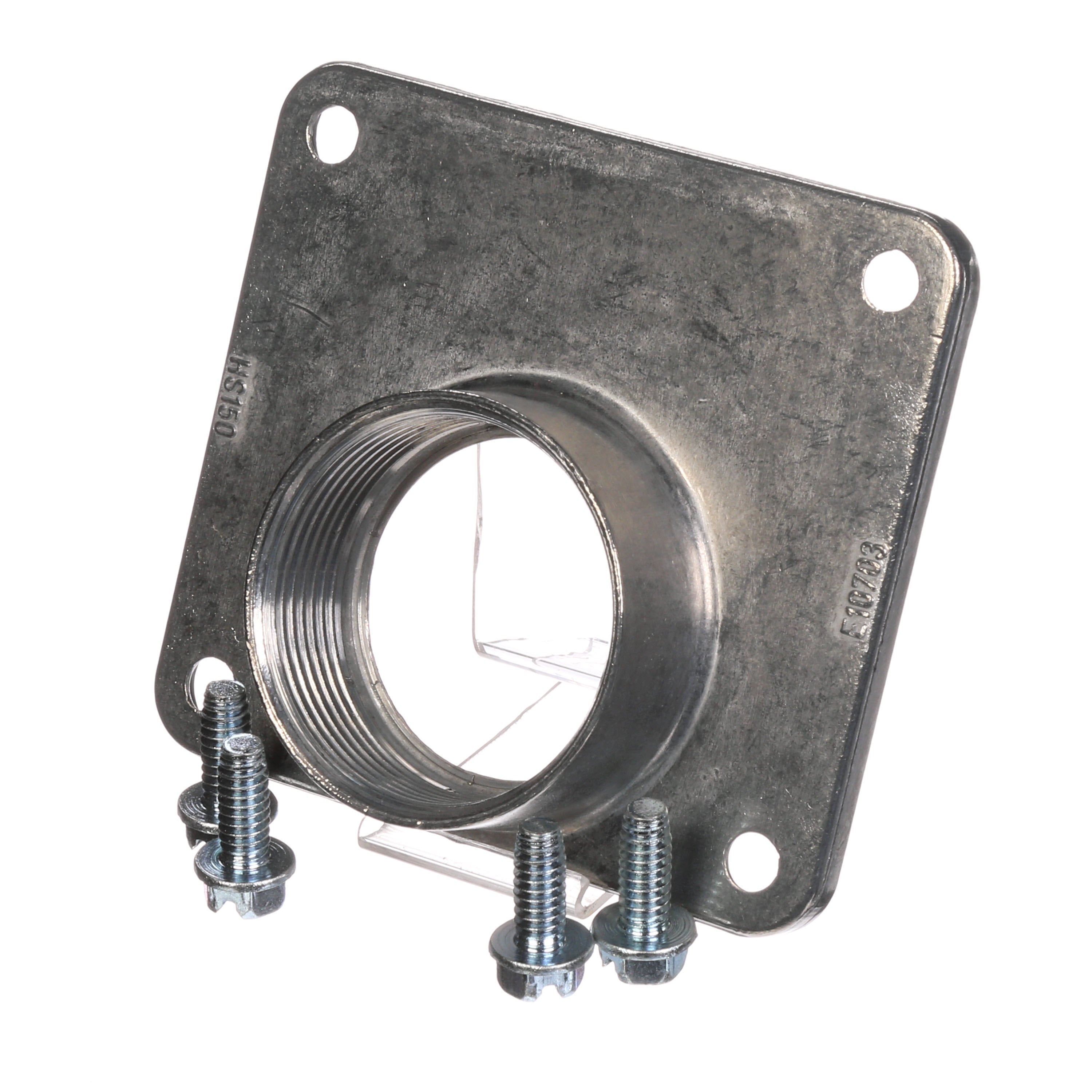

The Siemens ECHS150 Type Hs Conduit Hub is designed for connecting a conduit to a load center or meter socket. This hub is for use on Siemens or Murray panels that call for an HS type hub. Check the wiring diagram of the panel to determine the required hub type.
- 1-1/2-Inch Hub
- Type HS
- For use with Siemens branded load centers
Product Highlights
The Siemens ECHS150 conduit hub is suitable for service entrance module and residential applications. It has a NEMA 3R enclosure rating.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: ECHS150
-
Country of Origin: Mexico
Technical Specifications
-
Size: 1-1/2 in
-
Type: HS
-
Number Of Holes: 1
-
Included Components: ECHS150
-
Item model number: ECHS150
-
Part Number: ECHS150
-
Mounting: Screw
-
Enclosure Rating: NEMA 3R
-
Brand: Siemens
-
MPN: ECHS150
-
Manufacturer: Siemens
-
Model / MPN: ECHS150
-
Application: Service Entrance Module and Residential Applications
-
Country of Origin: MX
-
Mfg Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant
-
Mounting Type: Threaded
-
Suitable For Use With: Electric Load Center
-
Used With: QP, QPH, HQP, BQ, BQH, HBQ, NGG, QPP, QPPH, HQPP, QJ2, QJH2, QJ2-H Circuit Breakers Load Center, Metering Equipment, 60-200A GD OR 30-200A HD Switches
-
Amperage: 60-200 Amp
-
Bus Rating: 60-200A GD OR 30-200A HD
-
Applications: For Residential use
-
Sub Brand: Load Centers
-
Height: 3.8 Inch
-
Length: 12.9 Inch
-
Width: 5.100 in
-
GTIN: 00783643455115
-
UPC: 783643455115
-
Overall Dimensions (L x W x H): 12.8 x 4.8 x 4.7 inches
-
Conduit Size: 1-1/2 Inch
-
Category: Hub
-
HS Rain Hub: QP, QPH, HQP, BQ, BQH, HBQ, NGG, QPP, QPPH, HQPP, QJ2, QJH2 and QJ2-H Circuit Breaker Loadcenter
-
Connection Type: Screw
-
Flexibility: Rigid
-
Maximum Operating Temperature: 25 °C (77 °F)
-
Mounting Style: Surface Mount
-
Material: Aluminum
-
Minimum Operating Temperature: -40 °C (-40 °F)
-
IP Rating: IP00
-
Accessory Type: Conduit Fittings
-
Resistance Properties: Water Resistant, Child Resistant
-
Catalog Number: ECHS150
-
Made in USA: No
-
Product UPC: 783643455115
-
PDW ID: ECL533241
