Siemens E1SED23B030 Breaker Enc1S 3P 30A

Product Description

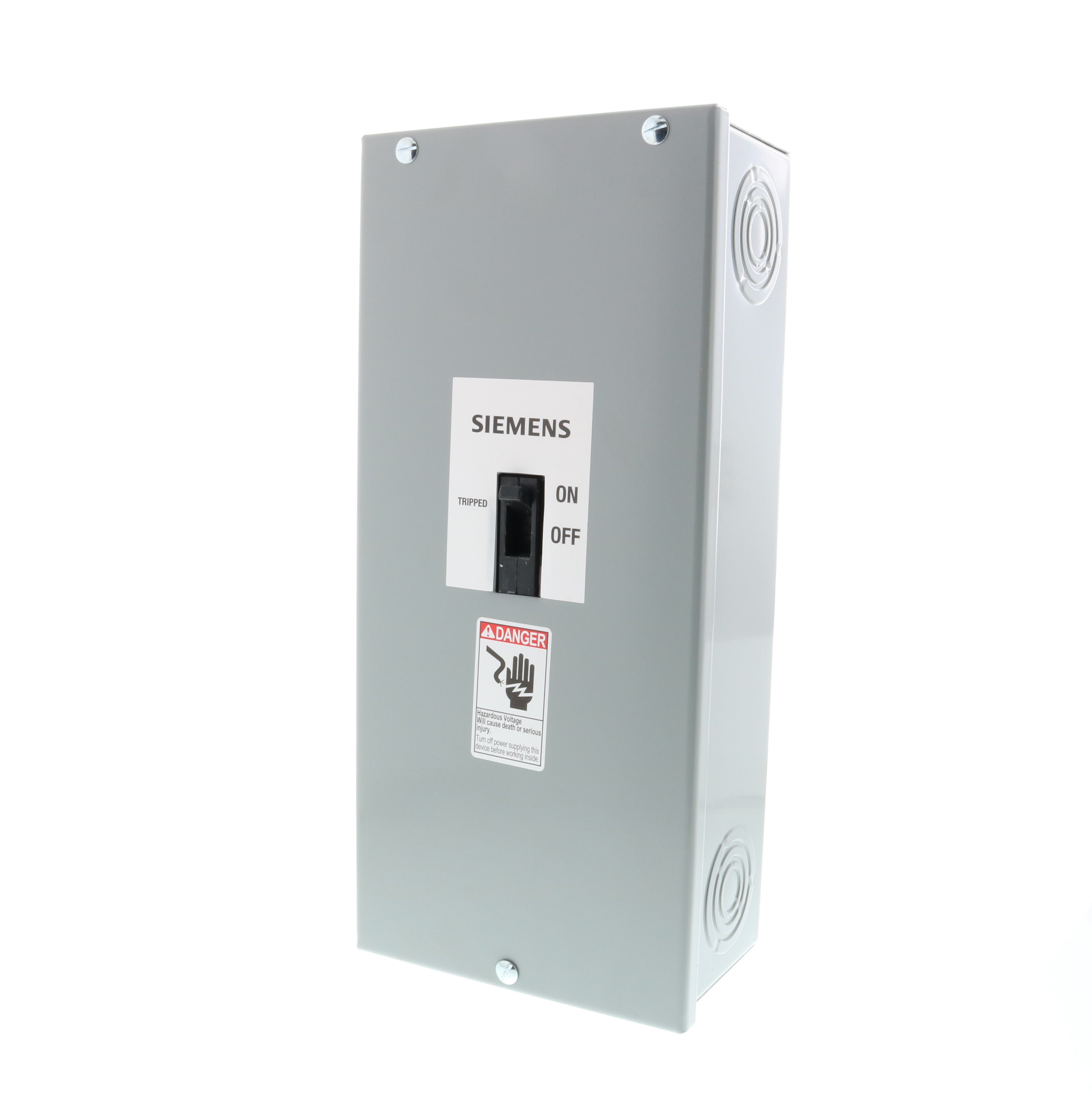

The Siemens E1SED23B030 is a low voltage enclosed Sentron molded case circuit breaker, assembled with a thermal-magnetic trip unit. This 3-pole, 240V breaker is rated at 30A and features a standard breaking capacity ED frame (ED23B030). It includes a NEMA TYPE 1 enclosure surface mounted (E2N1S) with neutral (W53045), and line and load side lugs (LN1E100) with a wire range of 10 - 1/0AWG (CU/AL).

• LOW VOLTAGE ENCLOSED
• SENTRON MOLDED CASE CIRCUIT BREAKER
• THERMAL - MAGNETIC TRIP UNIT

Product Highlights

30A 3-pole, 240V circuit breaker with NEMA TYPE 1 enclosure and thermal-magnetic trip unit.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: E1SED23B030

Technical Specifications

• Type: ED2
• Brand: Siemens
• Frame: ED
• Width: 8.000
• Height: 6 Inch
• Length: 17 Inch
• Voltage: 240 Volt
• Enclosure: TYPE 1S
• Sub Brand: SENTRON
• Trip Type: THERMAL MAGNETIC
• Number of Poles: 3 Pole
• Interrupt Rating: 10 kAIC
• Operating Temperature: (-25C -- 75C) AMBIENT TEMPERATURE
• Manufacturer Part Number: E1SED23B030
• Alternate Mfr Part Number: E1SED23B030
