Siemens E0816ML1125S Low Voltage Residential Load Center Single-Phase Main Lug 125A 8 Spaces 16 Circuits NEMA 1-S

Product Description

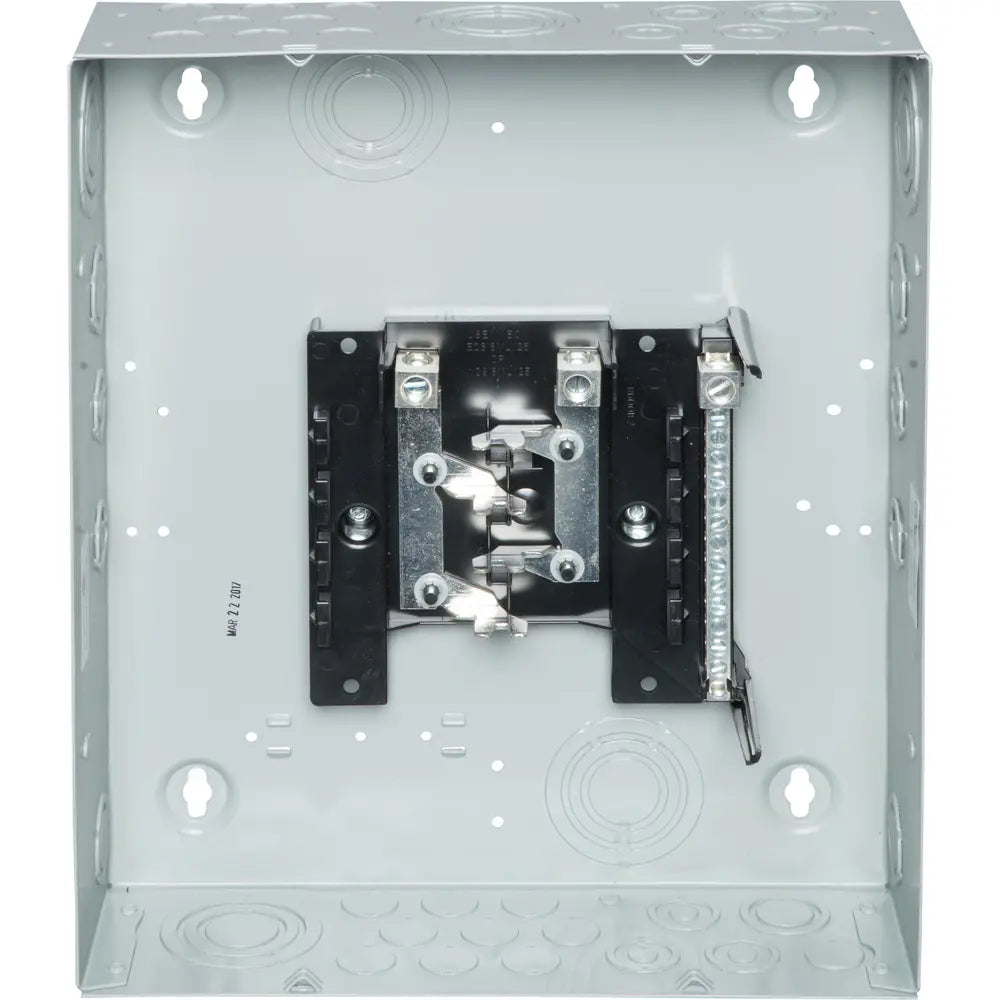

The Siemens Industry E0816ML1125S is a low voltage residential load center designed for single-phase applications. This main lug load center supports wire sizes ranging from #14 to 2 AWG and operates at voltage levels up to two hundred forty volts. It includes a factory-installed ground bar and is rated for NEMA N1-S, making it suitable for indoor use.

• Accepts wire sizes #14 to 2 AWG.
• Rated for a maximum of 125 amps.
• Includes eight spaces and supports sixteen circuits.

Product Highlights

Ideal for residential power distribution, this load center is an essential component for ensuring electrical safety and reliability.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• MPN: E0816ML1125S
• Depth: 3.81 inches
• Width: 12.37 inches
• Height: 14.75 inches
• Weight: 12 pounds
• Phase: Single-Phase
• Amperage Rating: 125 Amperes
• Voltage Rating: 120/240 VAC
• Number of Spaces: 8
• NEMA Rating: NEMA 1
• Mounting: Surface
• Interrupt Rating: 100 kAIC
• Circuit Breaker Type: EQ
• Wiring Configuration: 3-Wire
• Country of Origin: MX
