Product Description

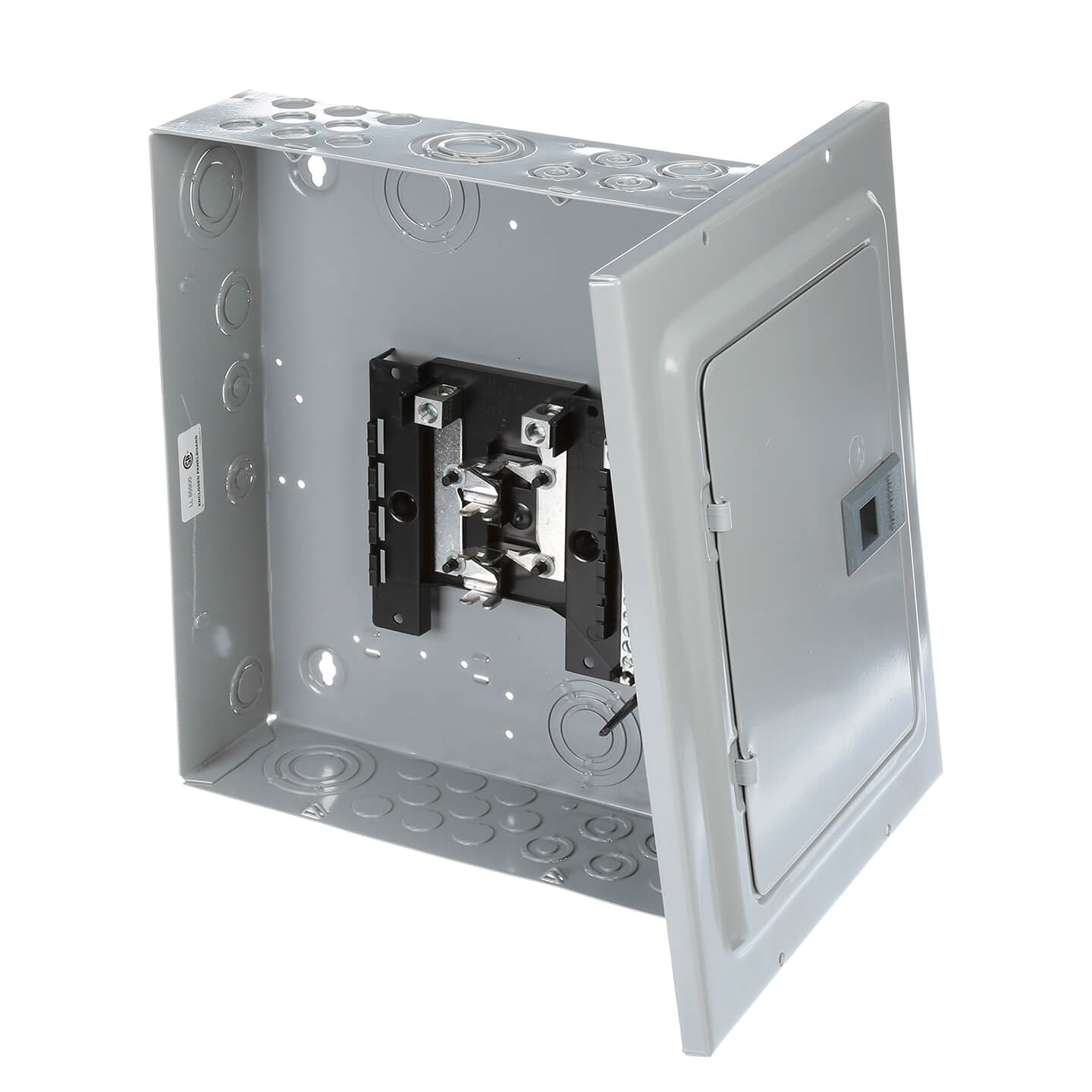

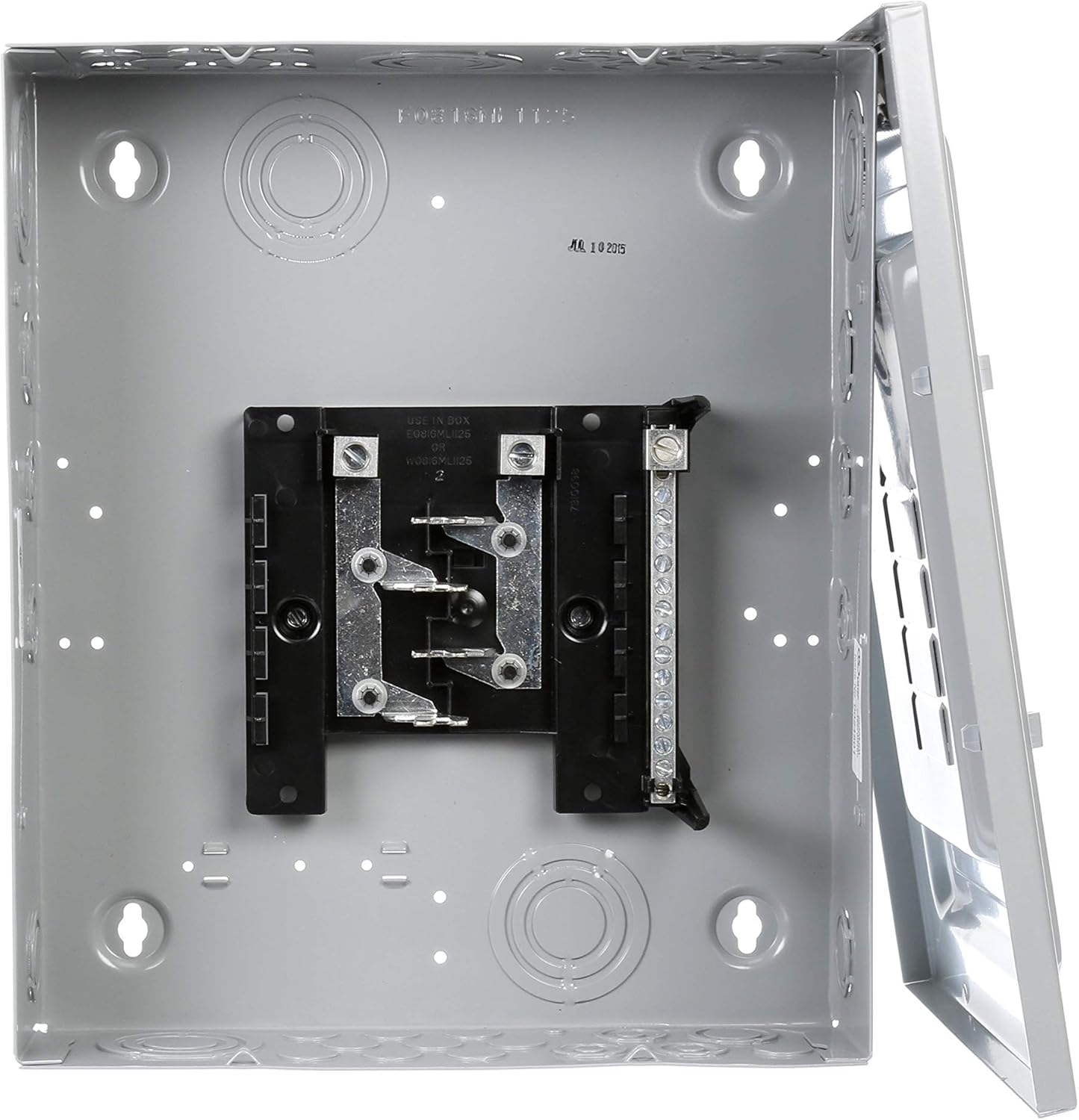

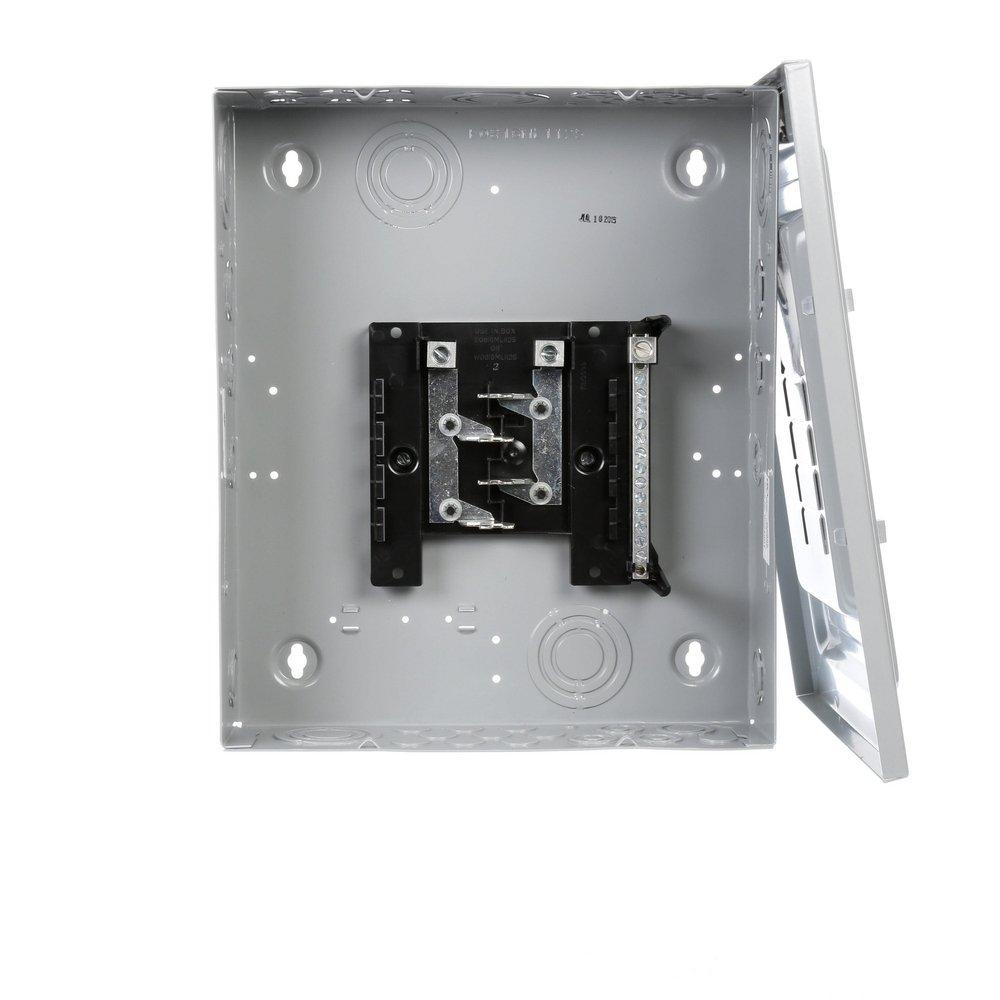

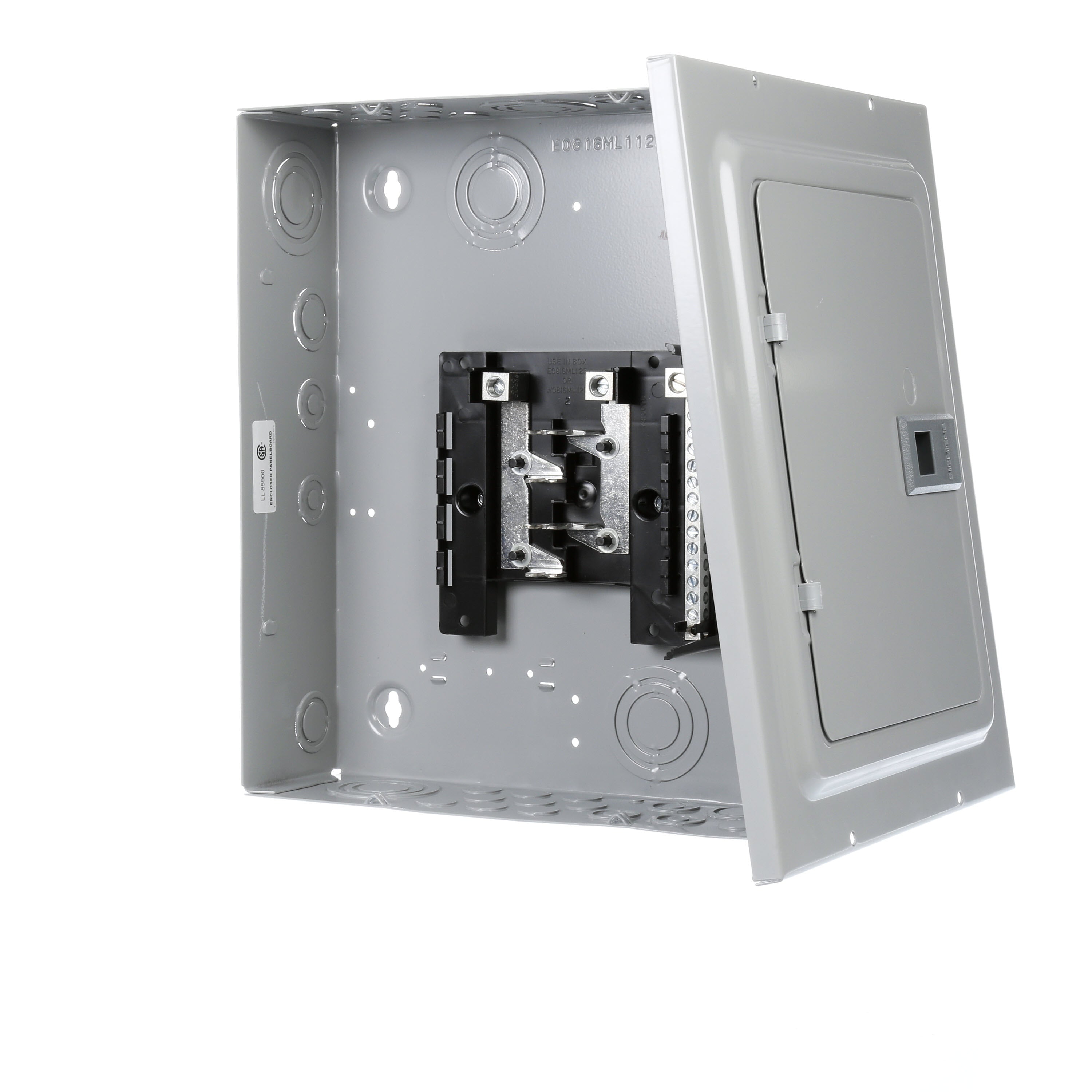

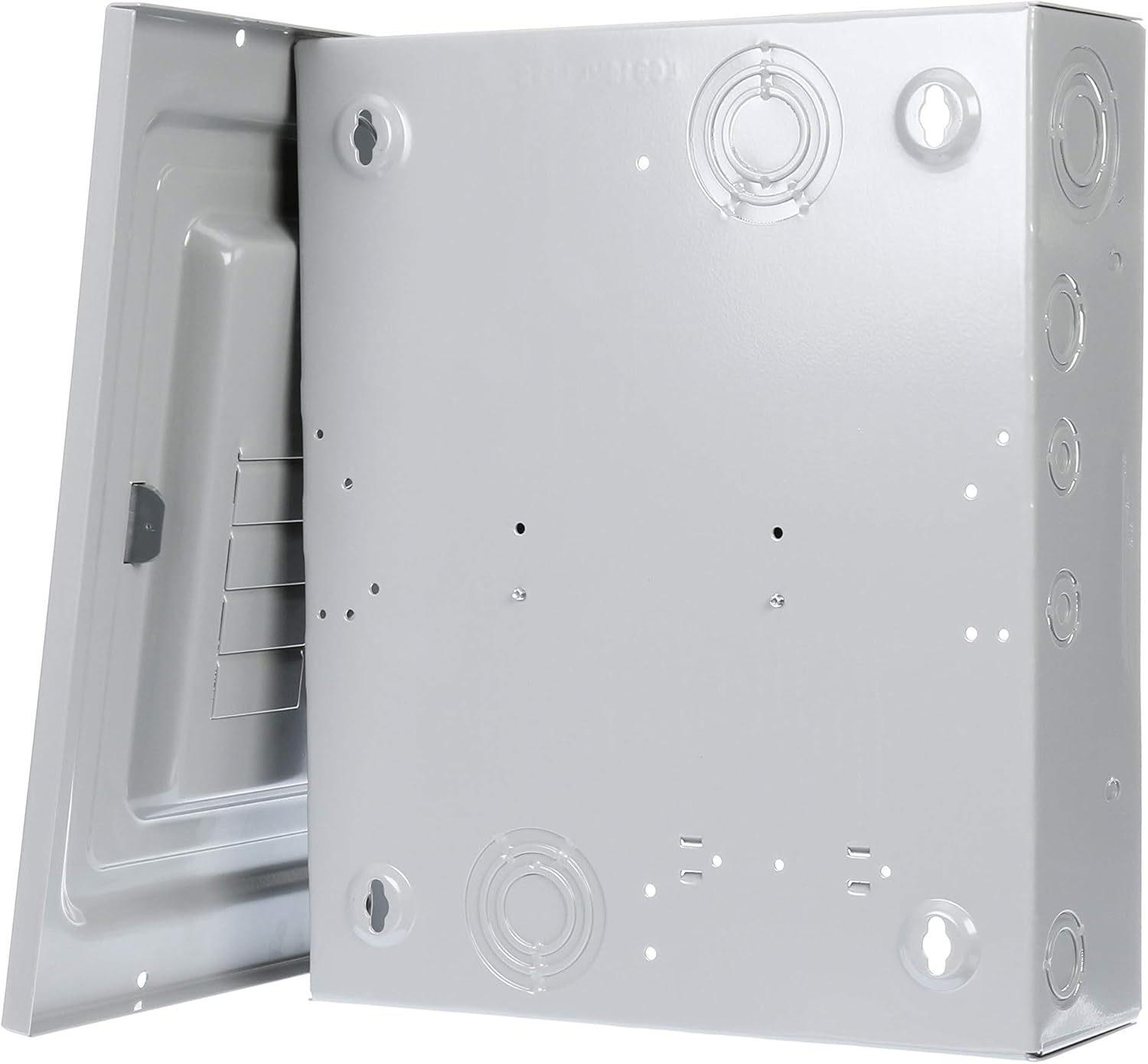

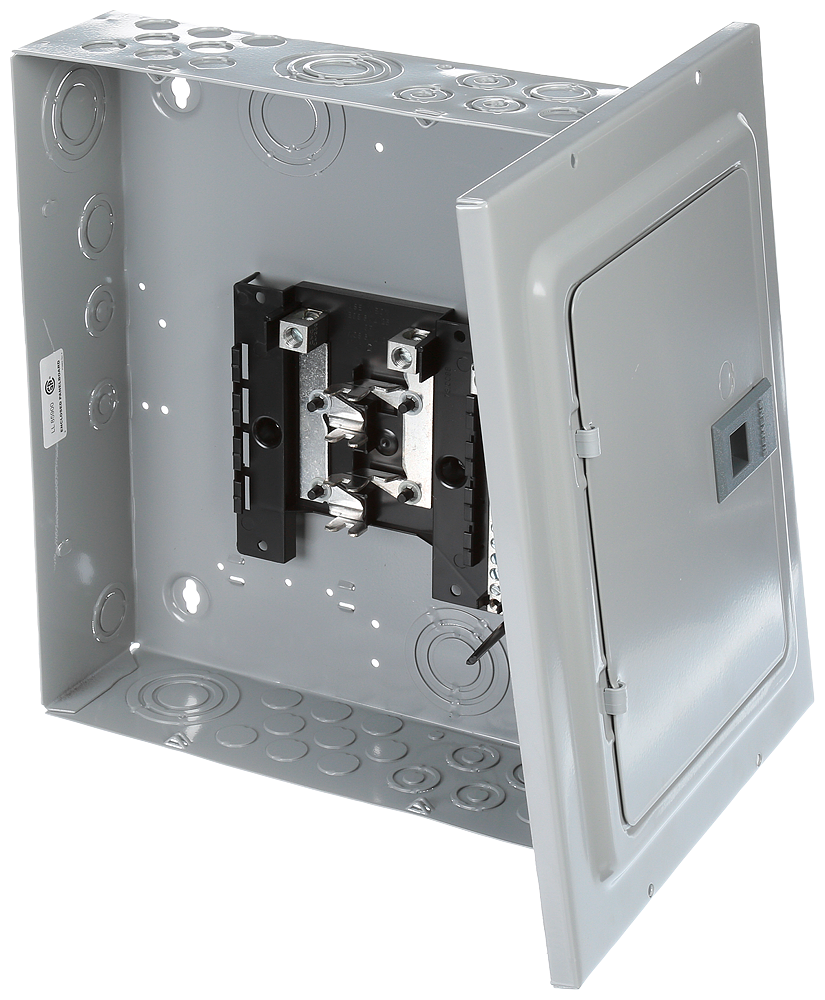

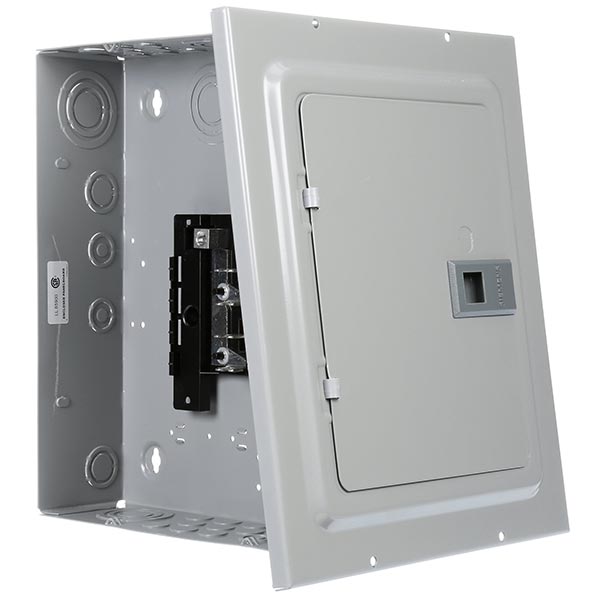

The Siemens E0816ML1125S EQ main lug load center is designed for distributing electricity. This indoor, surface mount load center features an aluminum bus bar and a NEMA type-1 enclosure constructed of galvanized carbon steel for corrosion resistance. It supports single-phase wiring and has a voltage rating of 120/240V AC.
- 125 Amp, 8-Space, 16-Circuit
- NEMA type-1 enclosure for indoor installations
- Aluminum bus bar
Product Highlights
This Siemens load center is ideal for residential subfeed applications, offering reliable power distribution with a focus on safety and durability.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: E0816ML1125S
-
Country of Origin: Mexico
Technical Specifications
-
Voltage: 240 Volts
-
Material: Alloy Steel, Aluminum
-
Phase Type: Single Phase
-
Number Of Circuits: 16
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: EQ Load Center, Instruction Sheet
-
Voltage Rating: 120/240 Volt AC
-
Current Rating: 125 Amp
-
Circuit Configuration: 1-Phase 3-Wire
-
Maximum Number of Spaces: (8) 1 Inch
-
Interrupting Rating: 100000 Amp
-
Bus Material: Aluminum
-
Main Wire Size: #4 to 2/0 AWG (Copper/Aluminum)
-
Enclosure Type: NEMA 1, Indoor
-
Cover Type: Surface
-
Size: 12.2 Inch Width x 3.7 Inch Depth x 14.6 Inch Height
-
Approval: UL
-
Application: Residential
-
Applicable Standard: Federal Specification W-P-115b/ W-C-375B, NEC
-
Amperage: 125 Amp
-
Enclosure: IndoorType1
-
Bus Rating: 125A
-
Number of Phases: 1 Phase
-
Amperage Rating: 125 A
-
Number of Poles: 4
-
Wiring Configuration: 3-Wire
-
Wire Size: 4 to 2/0 AWG
-
Breaker Type: QP
-
Number of Spaces: 8
-
Series: EQ
-
Phase: 1
-
NEMA Rating: NEMA 1
-
Number of Wires: 3
-
Height: 14.75 in
-
Width: 12.375 in
-
Depth: 3.875 in
-
Short Circuit Current Rating (kA): 100
-
Max. 2 Pole: 4
-
Standards: UL Listed
-
Item Model Number: E0816ML1125S
-
Product Dimensions: 15.4"L x 13"W x 5.3"H
-
Manufacturer: Siemens
-
Part Number: GID-660304
-
Item model number: E0816ML1125S
-
Is Discontinued By Manufacturer: No
-
Item Package Quantity: 1
-
Brand: SIEMENS
-
UPC: 783643202122
-
Country of Origin: Mexico
