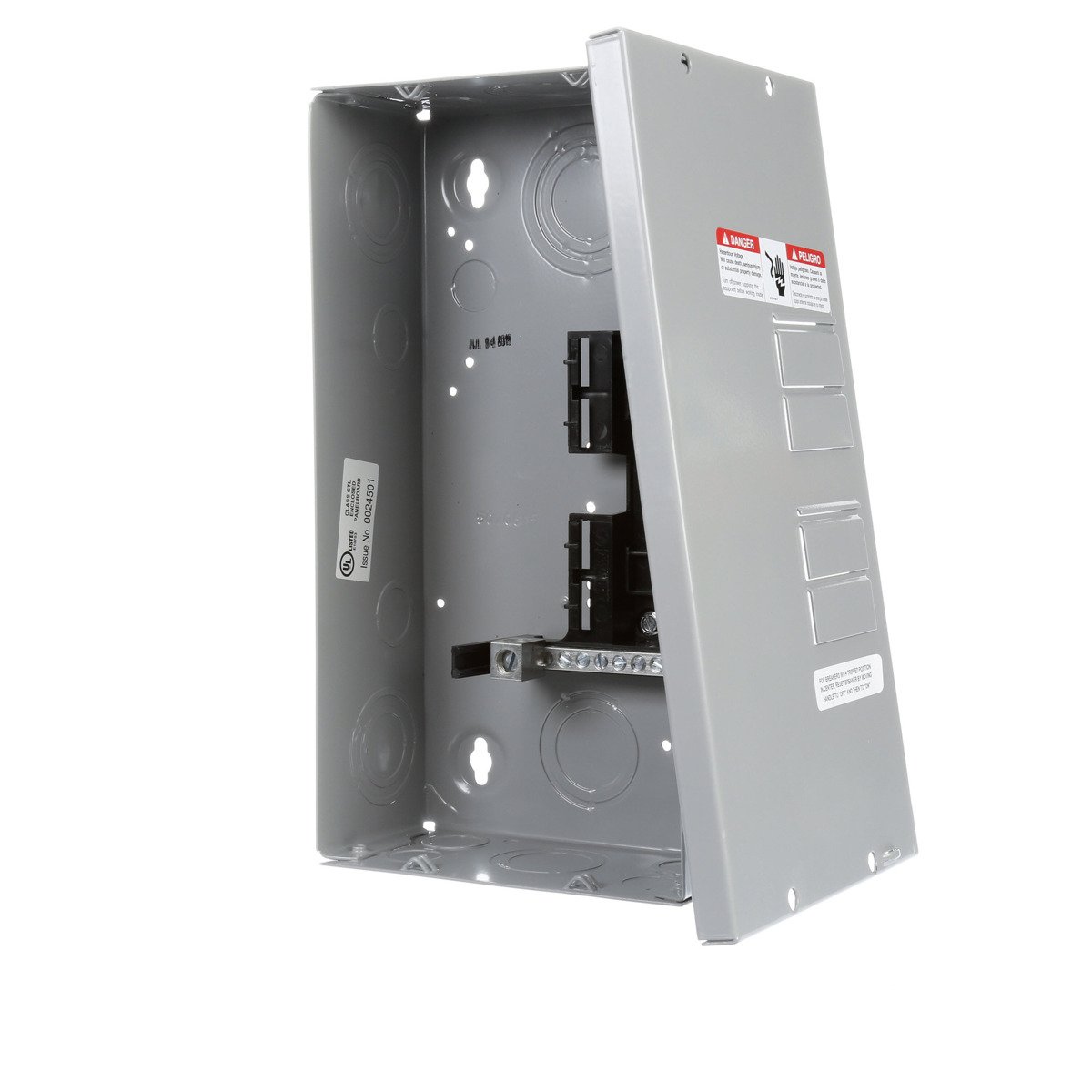

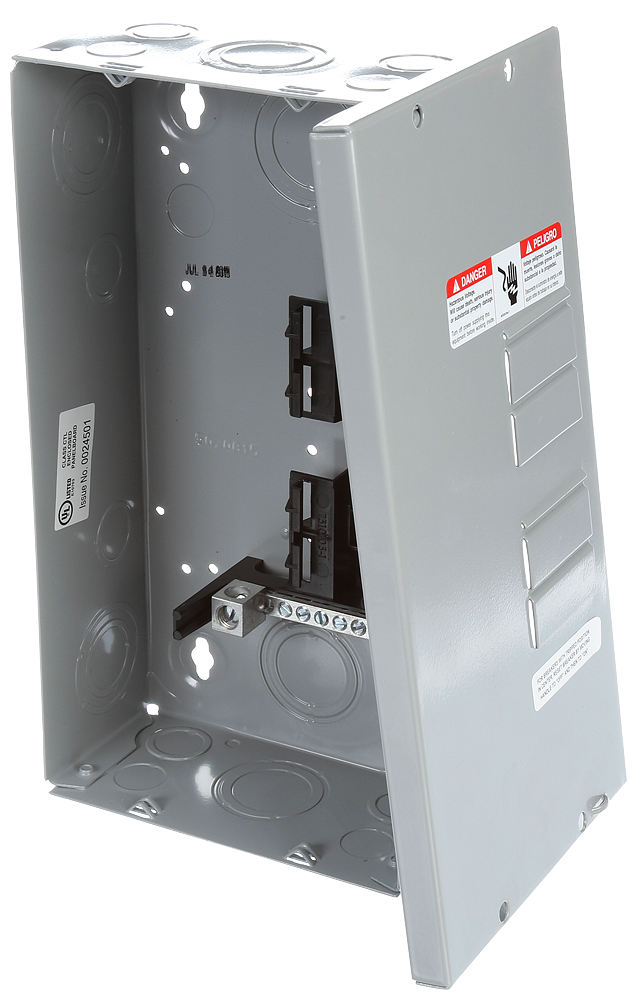

Siemens E0408ML1125S Center Load Lug Main Ph Sgl 120/240VAC

Product Description

The Siemens E0408ML1125S is a single-phase main lug load center designed for reliable residential power distribution. Built to power 120/240 VAC systems, this load center has a 125 Amp capacity and features a surface mounting design. Ideal for use in various residential applications.

• 125 Amp main lug capacity
• Surface mount installation
• NEMA 1 enclosure suitable for indoor use

Product Highlights

This load center features a straightforward layout for easy installation and maintenance. It includes plug-in breaker mounting for swift circuit configuration.

Product Information

Standard Information

• Brand: Siemens
• MPN: E0408ML1125S

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Number of Poles: 2
• Number of Spaces: 4
• Bus Rating: 125 A
• Breaker Mounting: Plug-In
• Interrupt Rating: 100 kA
• Wiring Configuration: 3-Wire
• Wire Size: 14 to 2/0 AWG
• Mounting Type: Surface
• Enclosure Type: NEMA 1
• Dimensions: 12-5/8 in H x 6-5/8 in W x 3-1/2 in D
