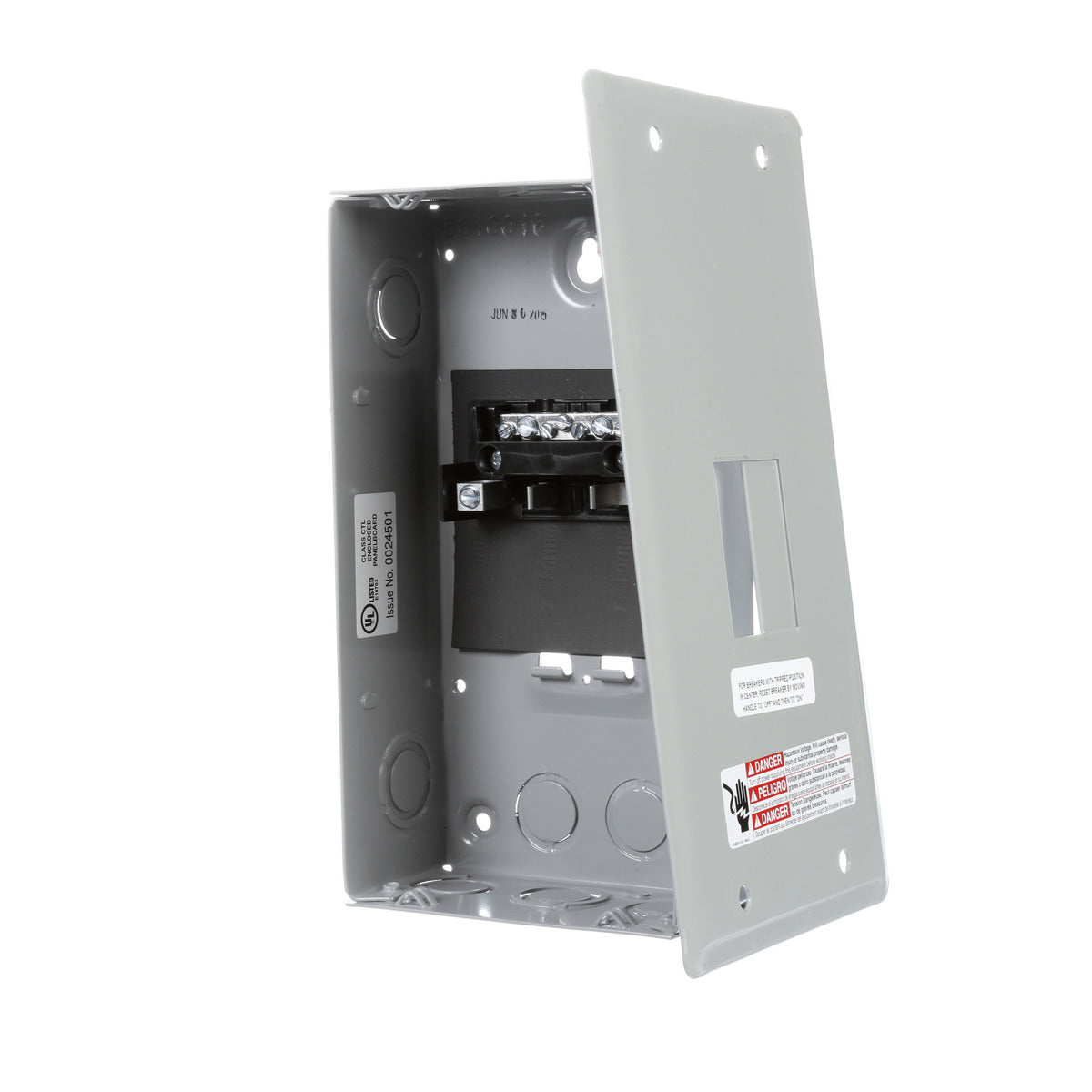

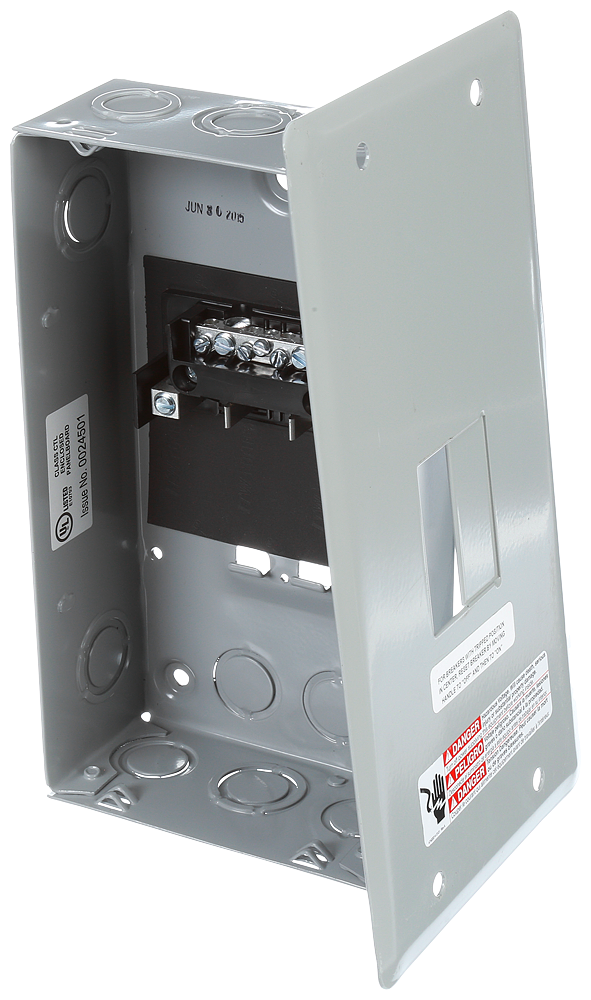

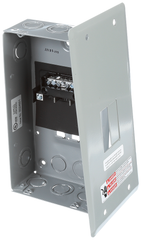

Siemens E0204ML1060F 120/240 VAC 60 Amp 1-Phase 3-Wire NEMA 1 Main Lug Load Center

Product Description

The Siemens E0204ML1060F is a load center that operates on 120/240 volts and has a 60 Amp rating. It is designed for residential applications and features a main lug configuration. This product is suitable for installations requiring a 1-phase system with a 3-wire setup.

• Rated for 120/240 volts with a maximum load of 60 amps
• Designed with NEMA type 1 enclosure for indoor applications
• Supports various circuit breaker options with a maximum interrupt rating of 100,000 AIC

Product Highlights

The load center offers a reliable solution for powering residential circuits. It is built to accommodate different breaker sizes while ensuring safety and compliance with electrical standards.

Product Information

Standard Information

• Brand: Siemens
• Country of Origin: Mexico

Technical Specifications

• MPN: E0204ML1060F
• Voltage Rating: 120 Volt
• Amperage Rating: 60 Amp
• Enclosure Type: Indoor Type 1
• Interrupt Rating: 100,000 AIC
• Mounting Type: Flush
• Number of Phases: 1 Phase
• Number of Spaces: 2
