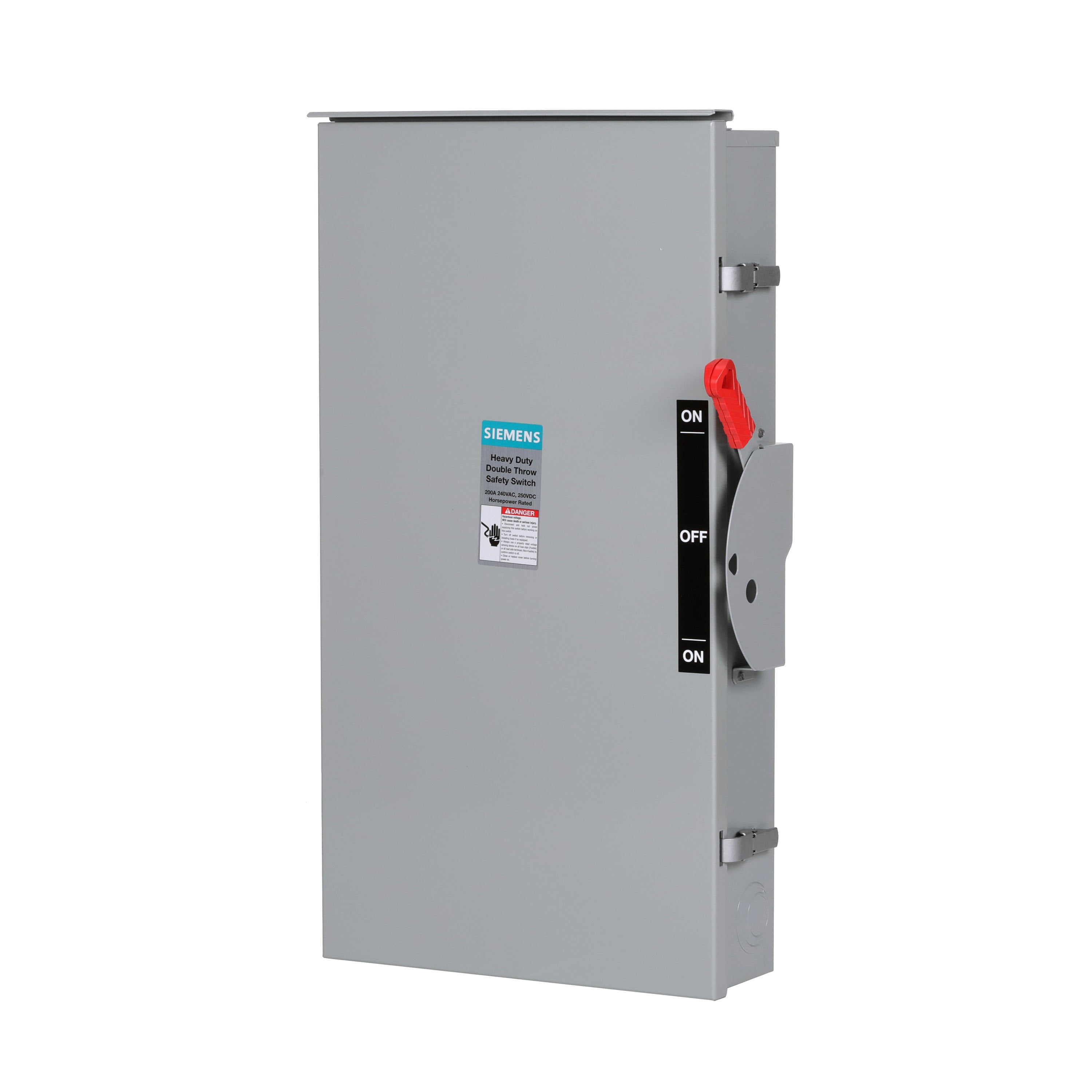

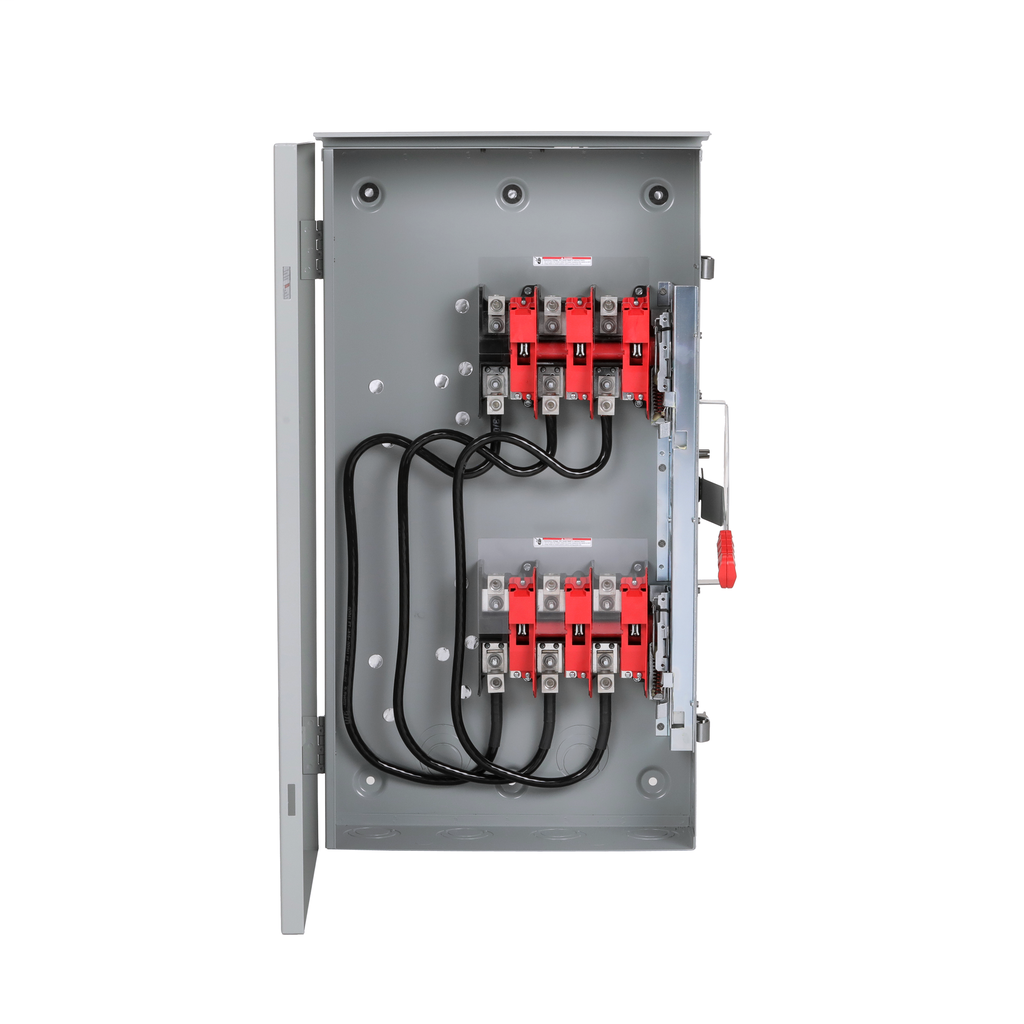

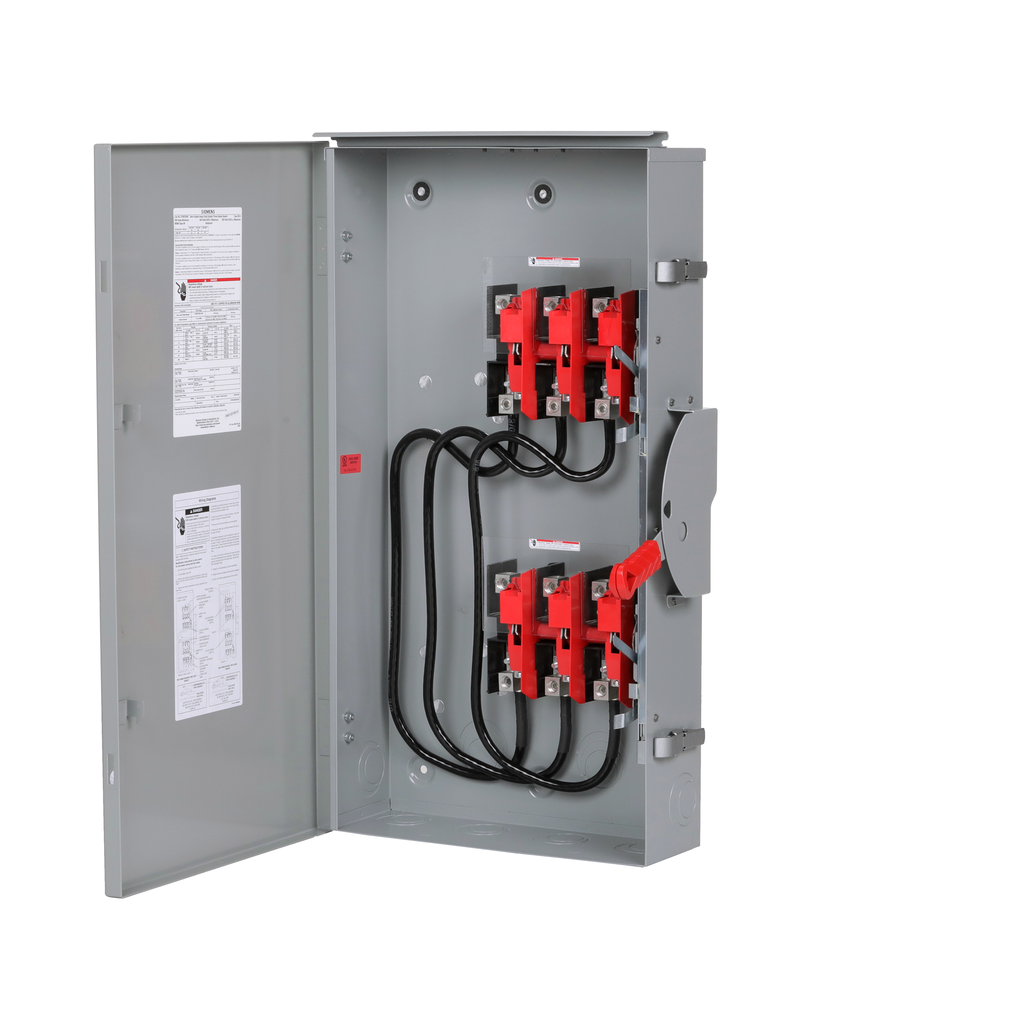

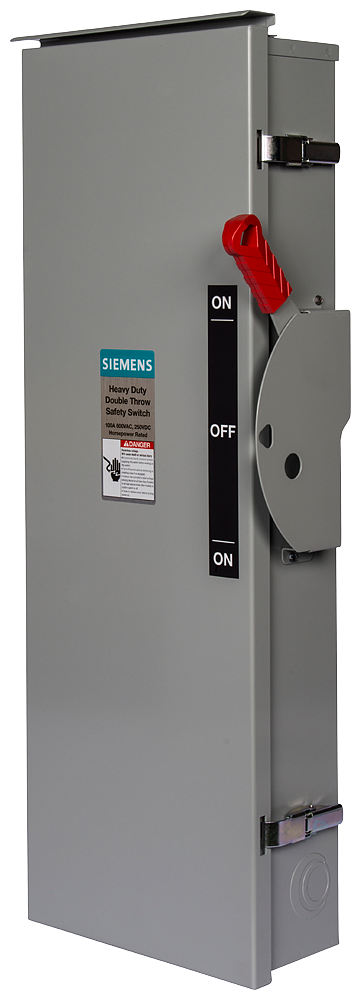

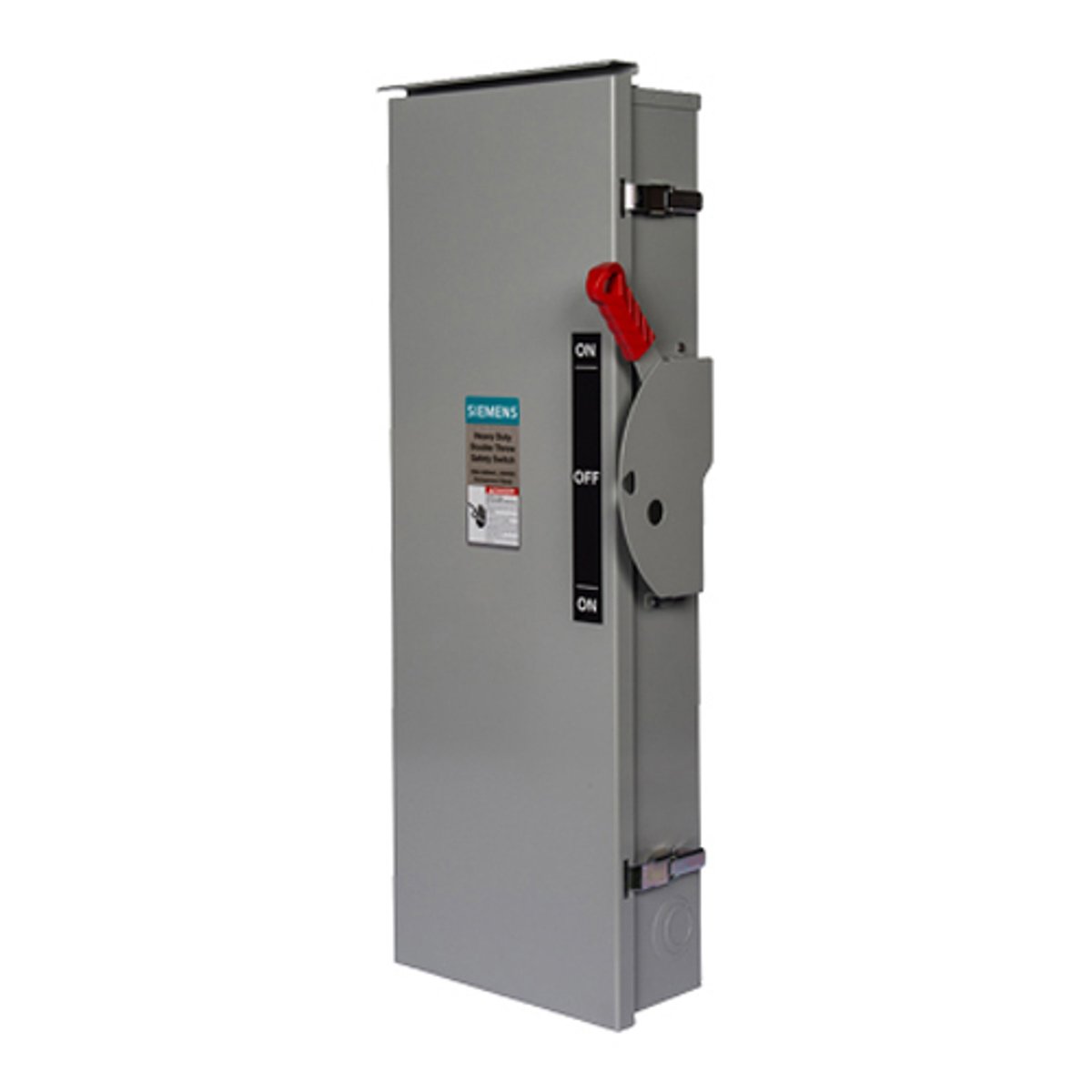

Siemens DTNF324R 240 VAC/250 VDC 200 Amp 3-Pole 3-Wire NEMA 3R Heavy Duty Non-Fusible Safety Switch

Product Description

The Siemens DTNF324R is a heavy-duty, non-fusible safety switch designed for low voltage circuit protection. Rated at 200A, 240 VAC/250 VDC, this 3-pole, 3-wire switch features a NEMA 3R enclosure for indoor/outdoor use. It is suitable for load transfer between power sources and ensures reliable performance with an operating temperature of -29 degrees C.

• Heavy Duty Safety Switch
• Non-Fusible
• Suitable for load transfer between power sources

Product Highlights

Heavy-duty, non-fusible safety switch with NEMA 3R enclosure for reliable circuit protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: DTNF324R
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Voltage: 240 Volt
• Amperage: 200 Amp
• Material: Steel
• Enclosure: NEMA3R
• Frequency: 60 Hz
• Sub Brand: VBII
• Enclosure Material: 304 Stainless Steel
• Product UPC: 78364345418
• 12-Digit UPC: 783643454187
• Mounting Type: SURFACE
• Connection Type: MECHANICAL LUGS
• Number of Poles: 3 Pole
• Country of Origin: Mexico
• Operating Temperature: -29 degrees C
• Catalog Number: DTNF324R
• Manufacturer: Siemens
• Amperage Rating: 200
• Standard: UL98
• UPC: 783643454187
• GTIN: 00783643454187
• HP: 60 hp @ 240V AC
• Duty: Heavy
• Item: Safety Switch
• Phase: 3
• Number of Wires: 3
• NEMA Enclosure Type: 3R
• Fusible / Nonfusible: Nonfusible
• Horsepower @ 240V AC: 60 hp
• Electrical Connection: Lugs
• NEMA Enclosure Rating: 3R
• Material of Construction: Galvanized Steel
• Combo Environmental Protection: Indoor/Outdoor / 3R
• Country of Origin (subject to change): Mexico
• Amps AC: 200 A
• Current Type: AC
• Current Rating: 200 A
• Enclosure Type: Enclosed
• For Fuse Class: Not Applicable
• Mounting Style: Surface Mount
• IP Rating: 14
• Environment: Indoor/Outdoor
• Use: Load Transfer Between Power Sources
• Applications: LOADTRANSFERBETWEENPOWERSOURCES
• Connection: MECHANICALLUGS
• Mounting: Surface
• Enclosure Depth: 6 - 12 inches
• Enclosure Width: 20 to 29 3/4 inches
• Enclosure Height: 30 inches and larger
• Housing Material: 304 Stainless Steel
• Protection Method: Nonfusible
• UL 98 Certification: Yes
