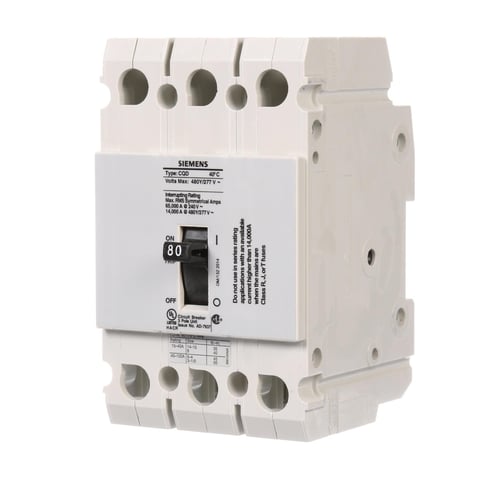

Siemens CQD380 Molded Case Circuit Breakers Thermal Mag DIN Rail Mount 3 Pole CQD Series 80A

Product Description

The SIEMENS CQD380 is a molded case circuit breaker designed for thermal magnetic applications. It is calibrated for 40°C maximum ambient application and UL listed for reverse feed applications. This 80A, 3-pole breaker is suitable for DIN rail mounting and features box lug terminals.

• Thermal/Magnetic
• UL listed
• DIN Rail Mount

Product Highlights

The SIEMENS CQD380 circuit breaker provides reliable circuit protection in a compact design. It is ideal for industrial and commercial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: CQD380
• Country of Origin: Mexico

Technical Specifications

• UNSPSC Code: 39120000
• Actuator Type: Toggle
• Brand: SIEMENS
• Current Rating: 80 A
• Manufacturer Part Number: CQD380
• Mounting Type: DIN Rail Mount
• Number of Poles: 3 Pole
• Series: CQD Series
• Standards: UL listed
• Terminal Type: Box Lugs
• Type: Thermal/Magnetic
• UPC Code: 783643277830
• GTIN: 00783643277830
• UNSPSC: 39121601
• Country of Origin: Mexico
• Frame: 100 A
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 14 kA
• Phase: 3
• Temperature Rating: 40 deg C
• Wire Size: 8 to 1 AWG, 6 to 1/0 AWG
• Trip Type: Thermal Magnetic
• Voltage Rating: 277/480 V AC
