Siemens CQD350 Breaker CQD 3-Pole 50A 480/277V 14KA

Product Description

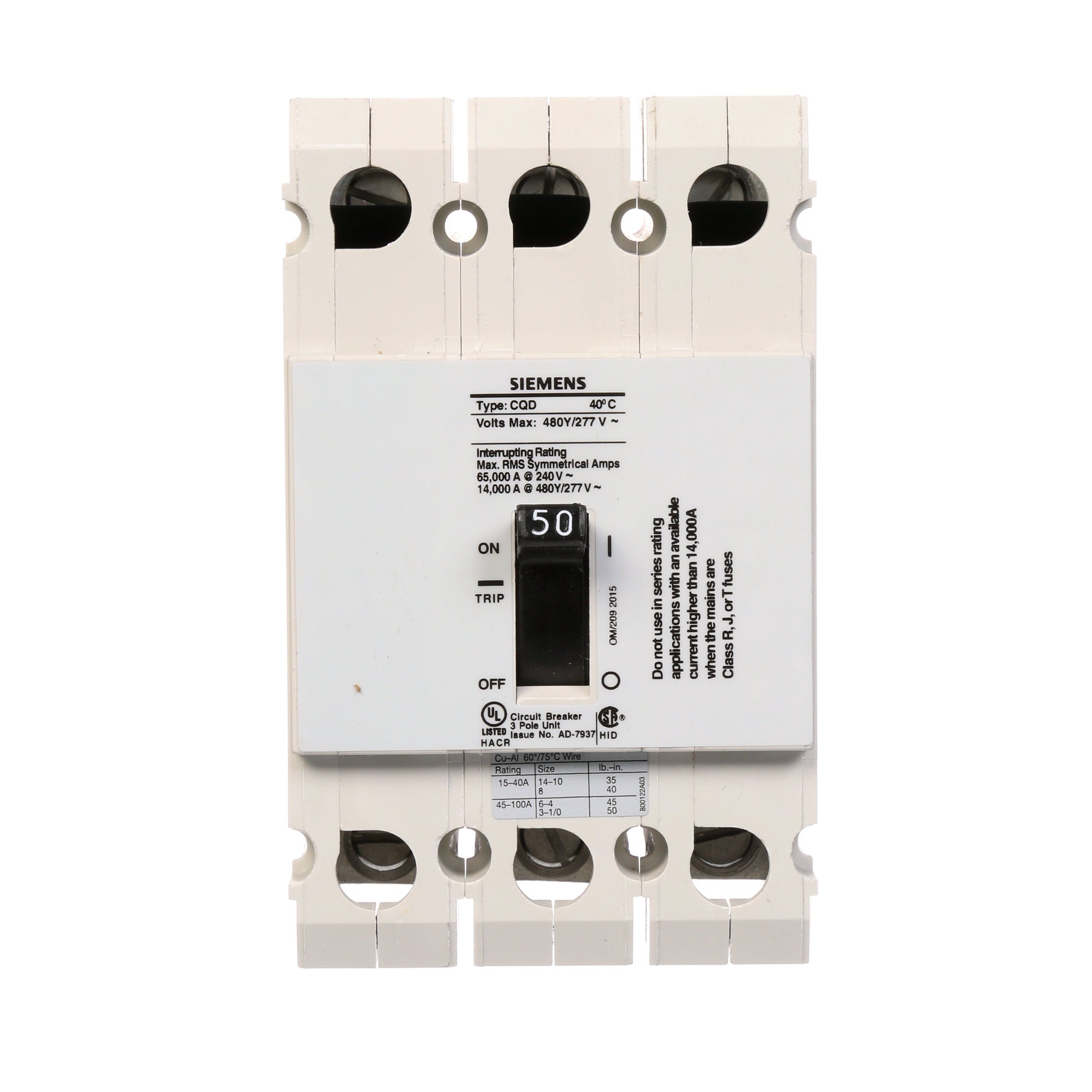

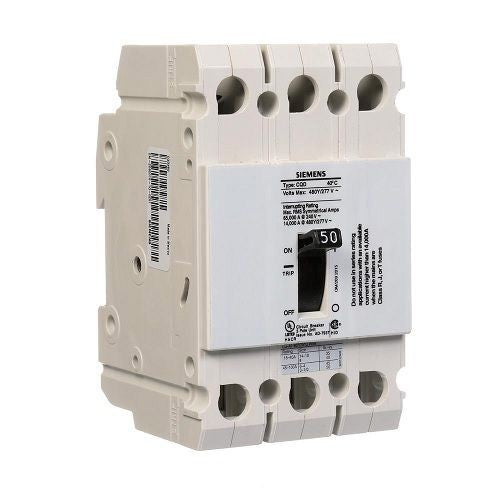

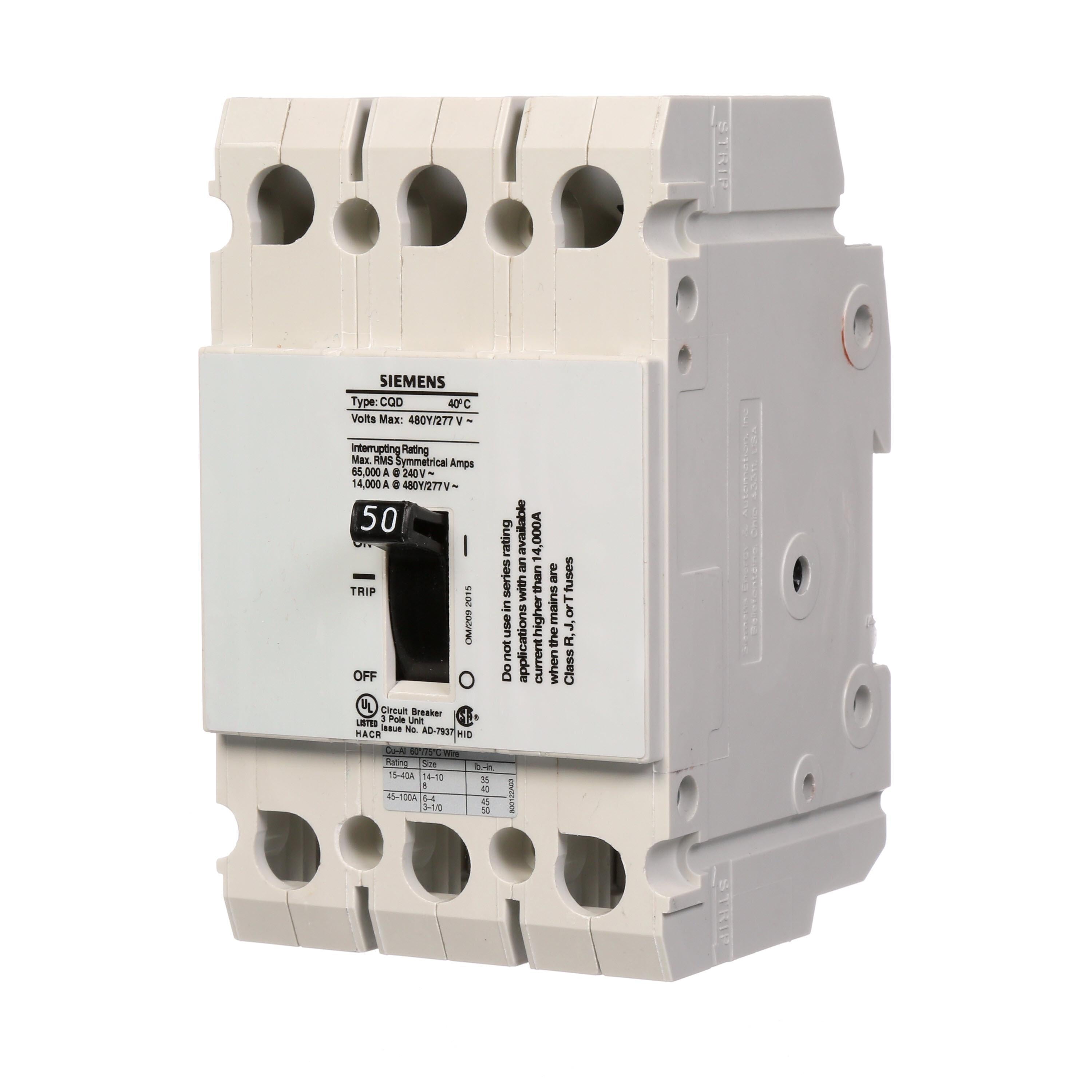

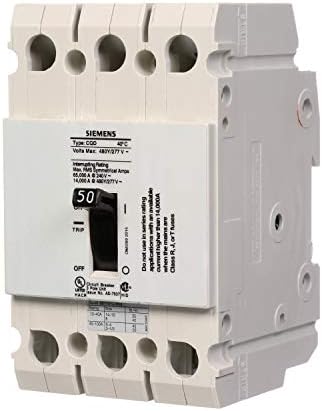

The SIEMENS CQD350 low voltage molded case circuit breaker is a 3-pole, TM-CQD breaker with a 14KAIC and 480/277VAC rating. This circuit protection molded case circuit breaker is designed for cable in/cable out and can be mounted on a DIN rail or directly to a surface. It is suitable for industrial and general purpose applications.

• UL Listed
• Cable in, cable out design
• DIN rail mounting

Product Highlights

The Siemens CQD circuit breaker offers reliable circuit protection with a convenient cable in/cable out design and DIN rail mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: CQD350
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: CQD350
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Mexico
• Made in USA: No
• Number of Poles: 3
• Standard: UL489
• UPC: 783643277809
• GTIN: 00783643277809
• Amperage: 50A
• Voltage: 480/277V
• Current Rating: 50 Amps
• Circuit Breaker Type: Standard
• Mounting Type: DIN Rail Mount
• Frame: 100 A
• Type: Type CQD Low Voltage
• Wire Size: 8 to 1 AWG, 6 to 1/0 AWG
• Connection type: Cable-In/Cable-Out
• UNSPSC: 39121601
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 14 kA
• Actuator Type: Handle
• Phase: 3
• Temperature Rating: 40 deg C
• Trip Type: Thermal/Magnetic
• Voltage Rating: 277/480 VAC
• Standard & Approvals: UL 489, CSA C22.2
• Application: Industrial and General Purpose Applications
