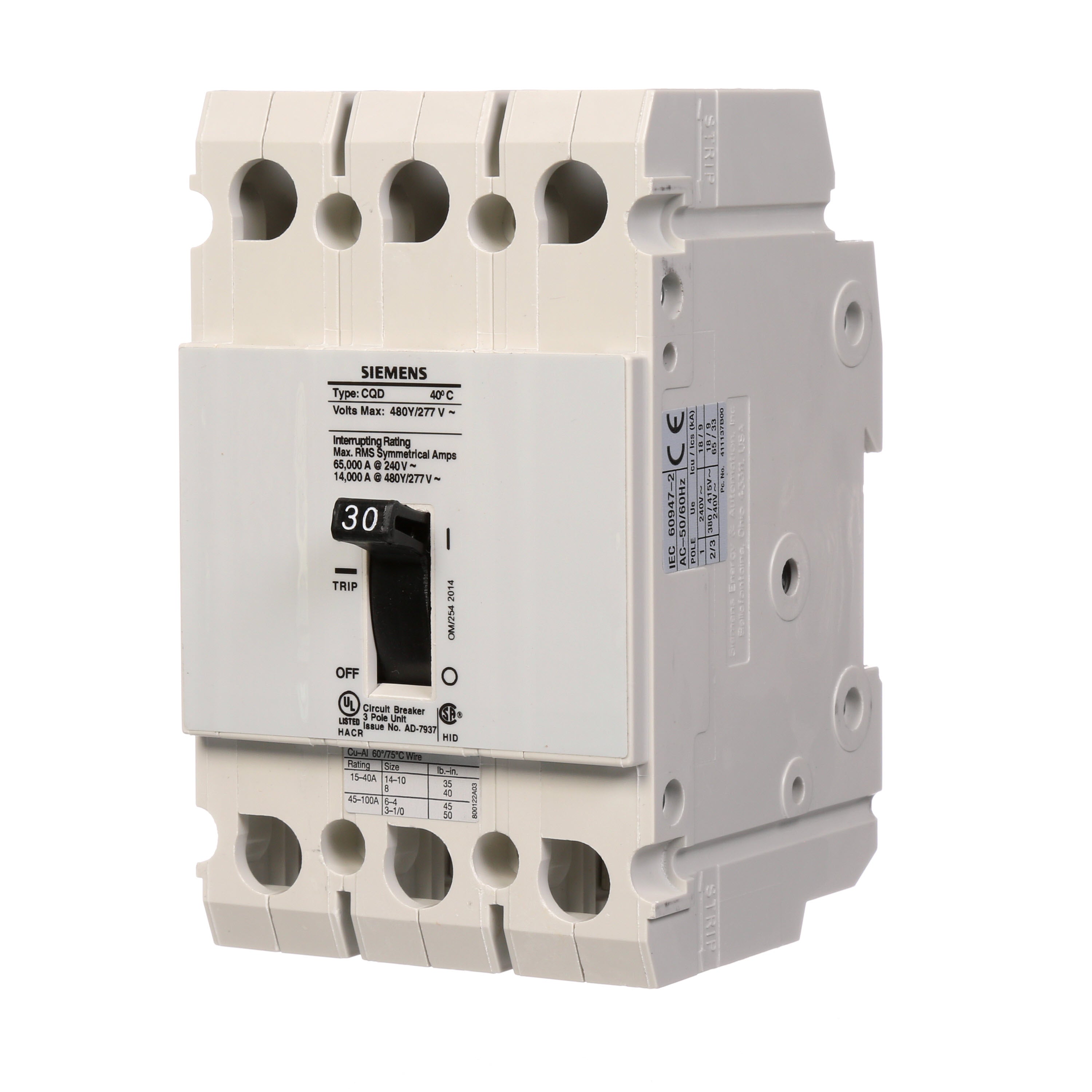

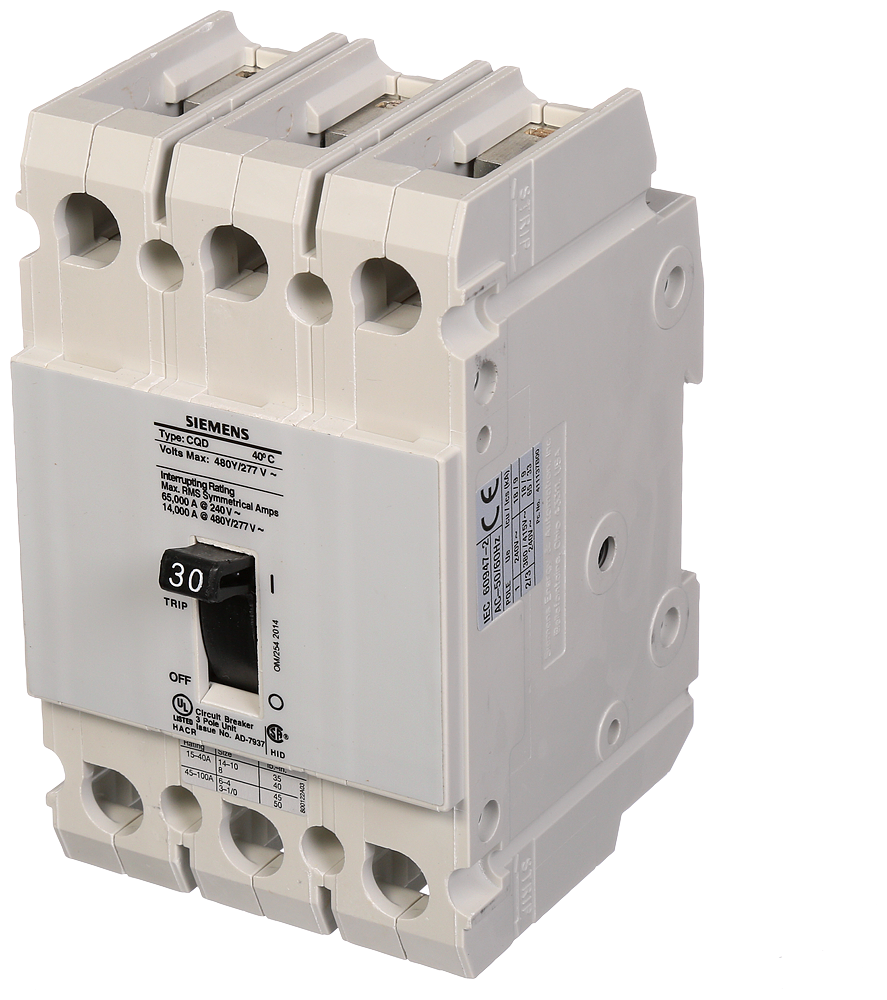

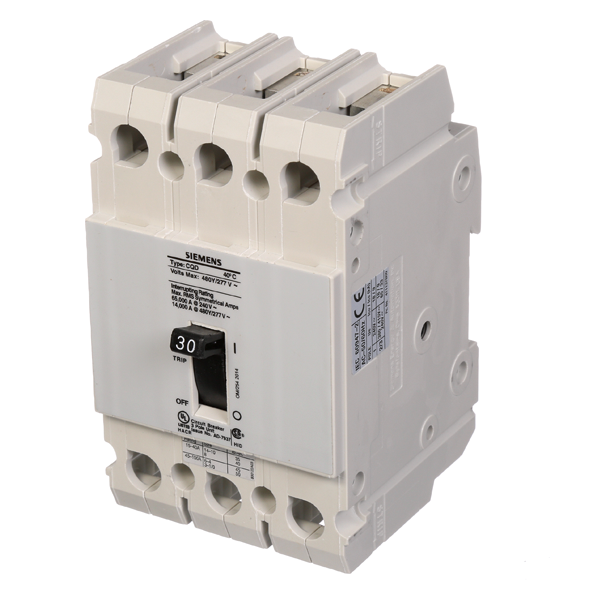

Siemens CQD330 Molded Case Circuit Breaker 30 A

Product Description

The Siemens CQD330 molded case circuit breaker is a Type CQD breaker operating at 277/480 V AC and 50/60 Hz. Rated at 30 A with a 14 kA interrupt rating, it features a 100 A frame and a thermal magnetic trip. Designed for industrial and general-purpose applications, it supports cable-in/cable-out connections.

• 14 to 6 AWG copper, 12 to 6 AWG aluminum wire
• Industrial and General Purpose Applications
• DIN Rail Mounting

Product Highlights

This Siemens circuit breaker ensures reliable circuit protection in diverse applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: CQD330
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Part Number #: CQD330
• SKU #: 19757
• Frame: 100 A
• Type: Type CQD
• Connection type: Cable-In/Cable-Out
• Amperage: 30 Amp
• Applications: INDUSTRIAL/GENERAL APPLICATION
• Current: 30 Amp
• Frequency: 50/60 Hz
• Interrupt Rating: 14 kAIC
• Mounting Type: DIN Rail
• Number of Poles: 3 Pole
• Operating Temperature: 40degrees C
• TC Connection: CABLE IN-CABLE OUT
• Trip Type: THERMAL MAGNETIC TRIP UNIT
• Voltage: 480/277 Volt
