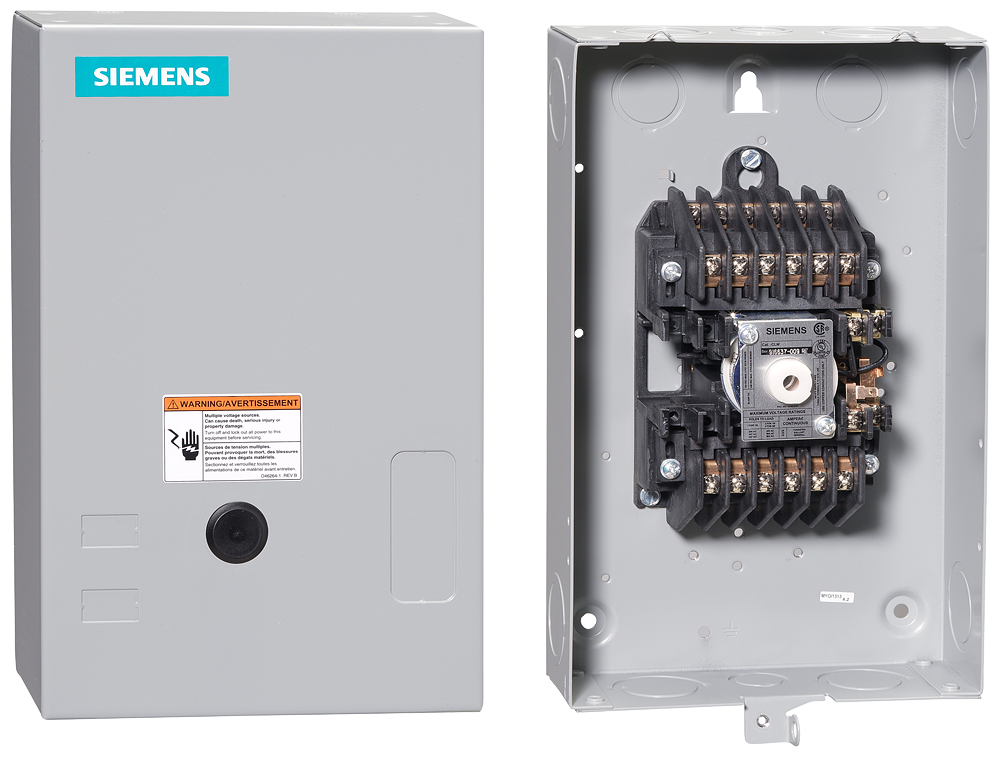

Siemens CLM1B10120 Lighting Contactor 110/120 VAC 20 Amp 10-Pole 10NO NEMA 1

Product Description

The Siemens CLM1B10120 is a mechanically held lighting contactor with H2 0 N.C. / 10 N.O. poles and a 110/120V 50/60Hz coil. This non-combination type contactor features a NEMA type 1 enclosure for indoor general purpose use. It is an electromagnetically operated, mechanically latched three wire control contactor, often used with a three position momentary contact switch.

• Mechanically held lighting contactor
• 110/120V 50/60Hz coil
• NEMA type 1 enclosure for indoor use

Product Highlights

The Siemens CLM1B10120 lighting contactor is ideal for lighting control applications requiring a mechanically held, non-combination type contactor.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: CLM1B10120
• Country of Origin: Mexico

Technical Specifications

• Type: CLM, Enclosed
• Brand: Siemens
• Coil Voltage: 120 V
• Connection Type: Screw-Type Terminals
• Contact Configuration: 10 NO
• Contactor Type: Mechanically and Magnetically Held Lighting
• Construction Standard: NEMA 600V AC
• UL Cont. Amps: 20A
• Poles: 10P
• Enclosure Type: NEMA 1
