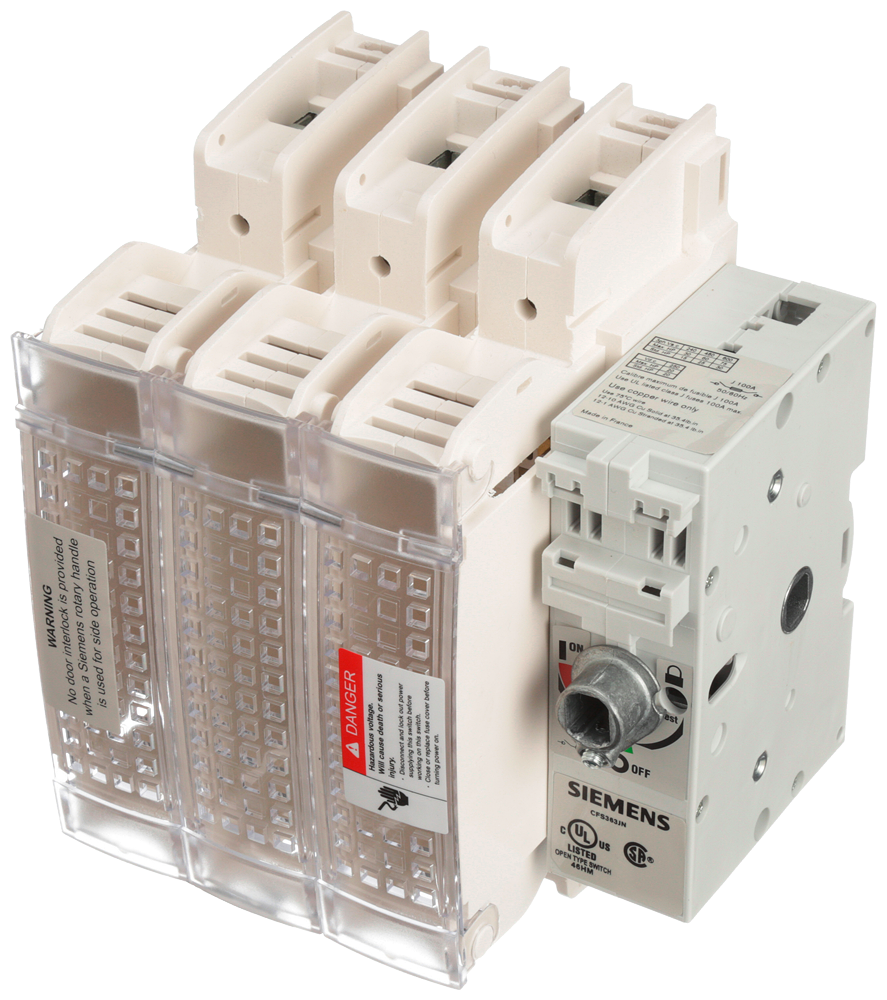

Siemens CFS363JN 100A 3P SW J FU

Product Description

The Siemens CFS363JN is a 100 amp rotary disconnect switch designed for electrical distribution applications. This model features three poles and has a voltage rating of six hundred volts. The fuse provision is rated for a short-circuit current of two hundred kiloamperes. This switch is ideal for panel mounting, ensuring safe and reliable operation in various environments.

• Rated for 100 amps with a three-pole configuration
• Designed for panel mounting in electrical distribution systems
• Operates effectively within an ambient temperature range of negative twenty to one hundred twenty degrees Fahrenheit

Product Highlights

The Siemens CFS363JN is suitable for various industrial and commercial applications requiring robust electrical control.

Product Information

Standard Information

• Brand: Siemens
• Sub Brand: Disconnect Switch

Technical Specifications

• Type: Rotary disconnect
• Voltage: 600 Volt
• Amperage: 100 Amp
• Number of Poles: 3 Pole
• Operating Cycles: 10000
• Mounting Type: Panel
• Width: 10 inches
• Height: 7 inches
• Length: 9 inches
• Weight: 5.07 lb
• Country of Origin: France
• Standard: UL
• Frequency: 60 Hz
• Operating Temperature: -20 to 120 F
