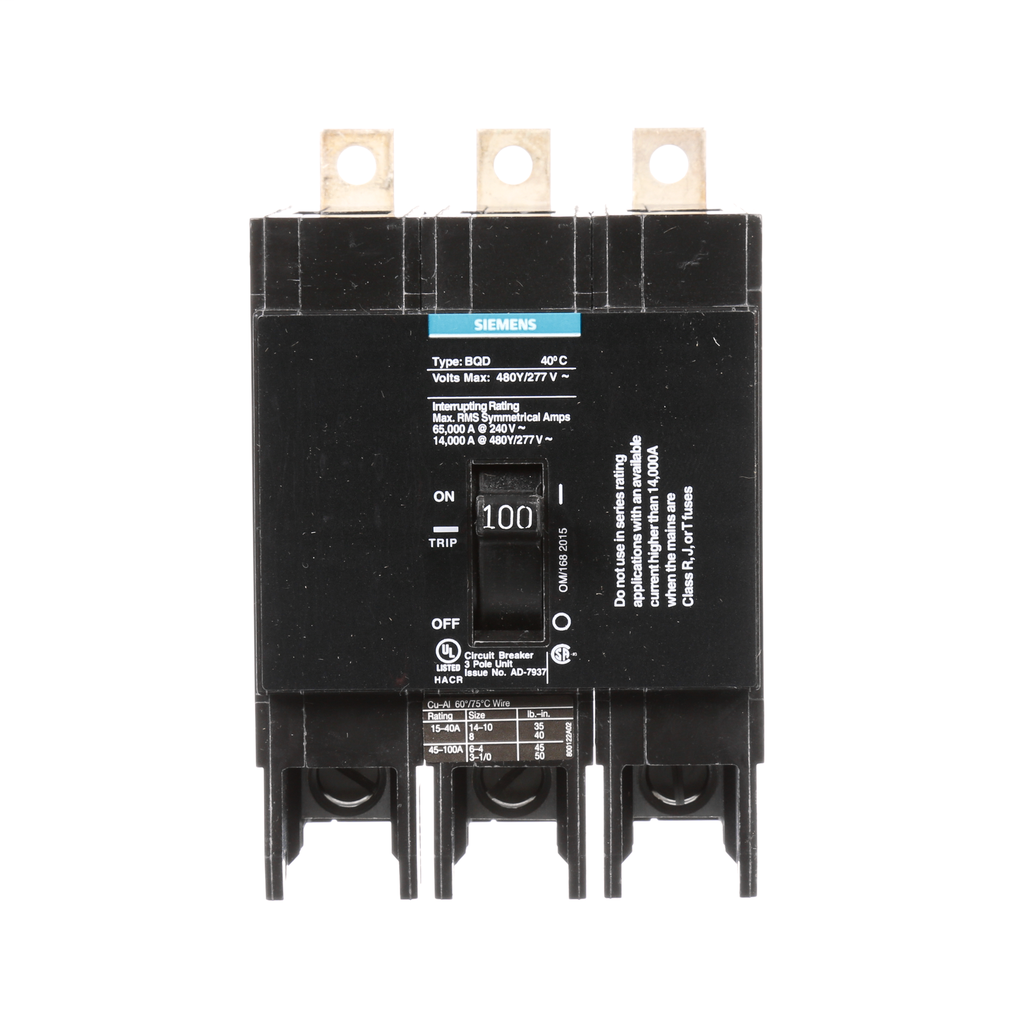

Siemens BQD3100 3-Pole 100 Amp 480 VAC 14 kA Circuit Breaker

Product Description

Siemens BQD3100 is a circuit breaker designed for use in various electrical applications. This three-pole breaker has a current rating of one hundred amps and operates at a voltage of four hundred eighty volts alternating current (VAC). It provides an interrupting rating of fourteen kiloamperes (kA) and features a thermal magnetic trip mechanism.

• Type: BQD Molded Case Circuit Breaker
• Rated current: 100 Amp
• Voltage: 480 VAC, 277 VAC

Product Highlights

Suitable for lighting and distribution applications. The Siemens BQD3100 is compatible with standard panelboards and is UL approved.

Product Information

Standard Information

• Brand: Siemens
• MPN: BQD3100

Technical Specifications

• Current Rating: 100 Amp
• Voltage Rating: 480 VAC
• Interrupt Rating: 14 kAIC
• Number of Poles: 3
• Trip Type: Thermal Magnetic
• Material: Molded Case Circuit Breaker
• Frequency: 50/60 Hz
• Dimensions: 4 inches (Length) x 3 inches (Width) x 3 inches (Height)
• Temperature Rating: 40 degrees C
• Connection Type: Low Tab
