Product Description

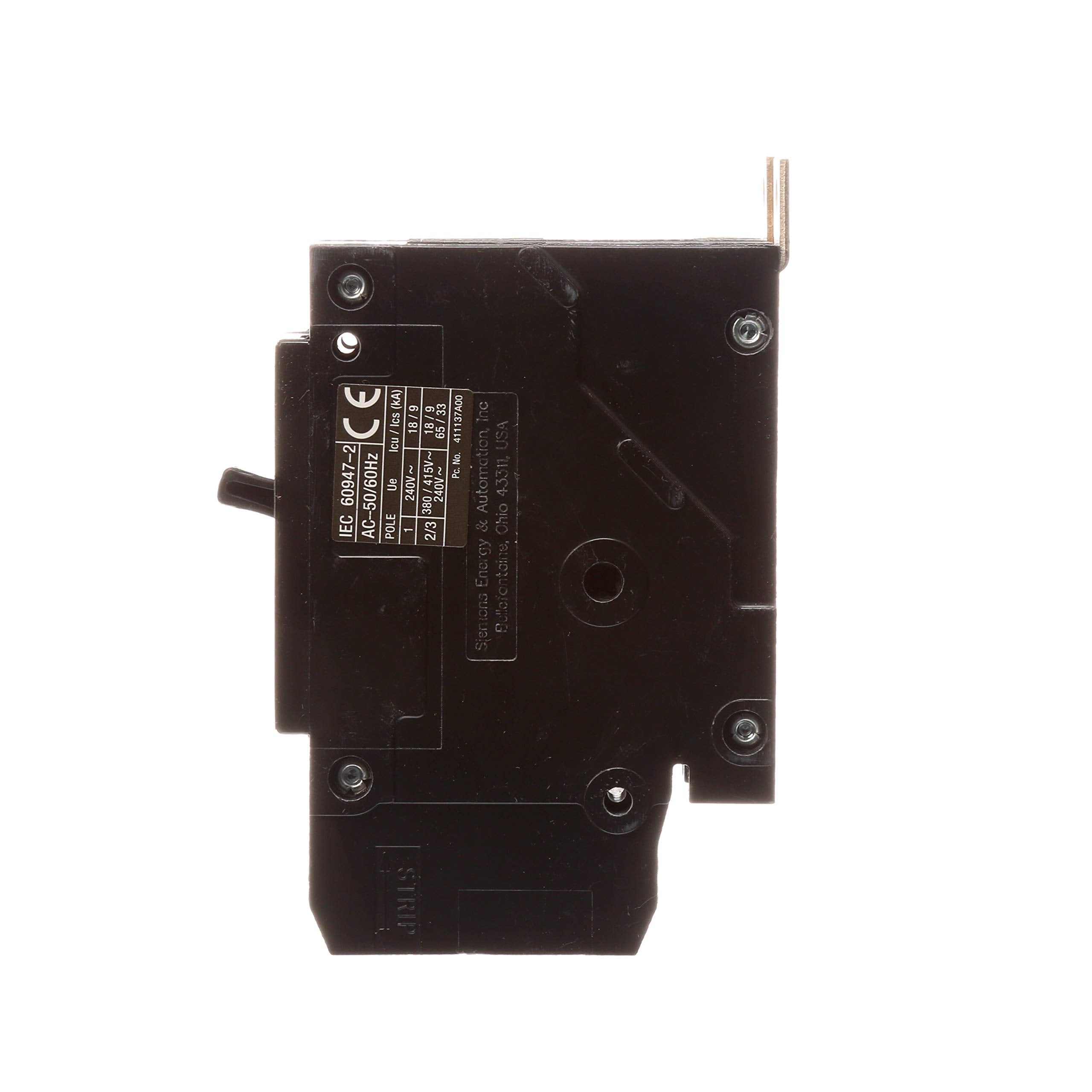

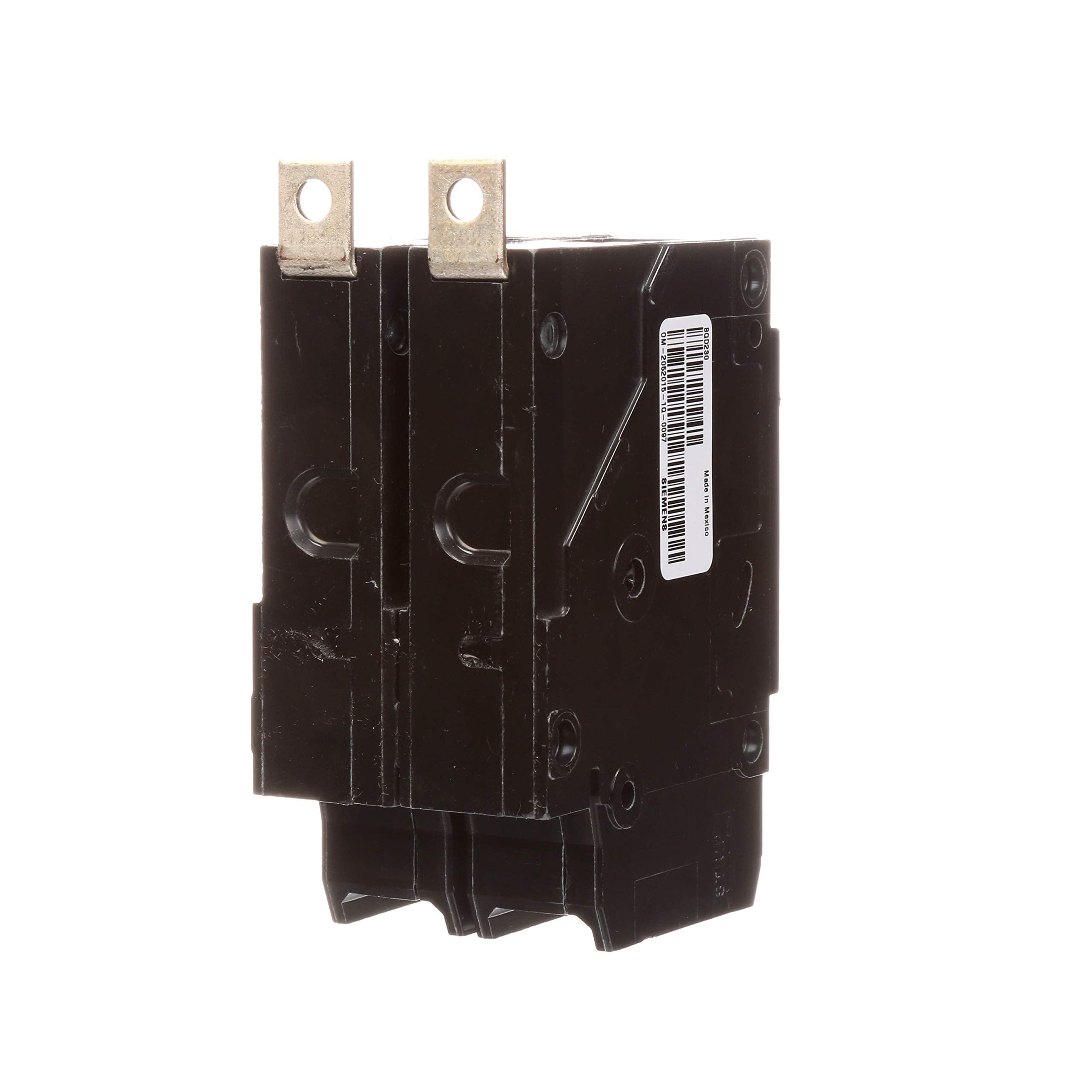

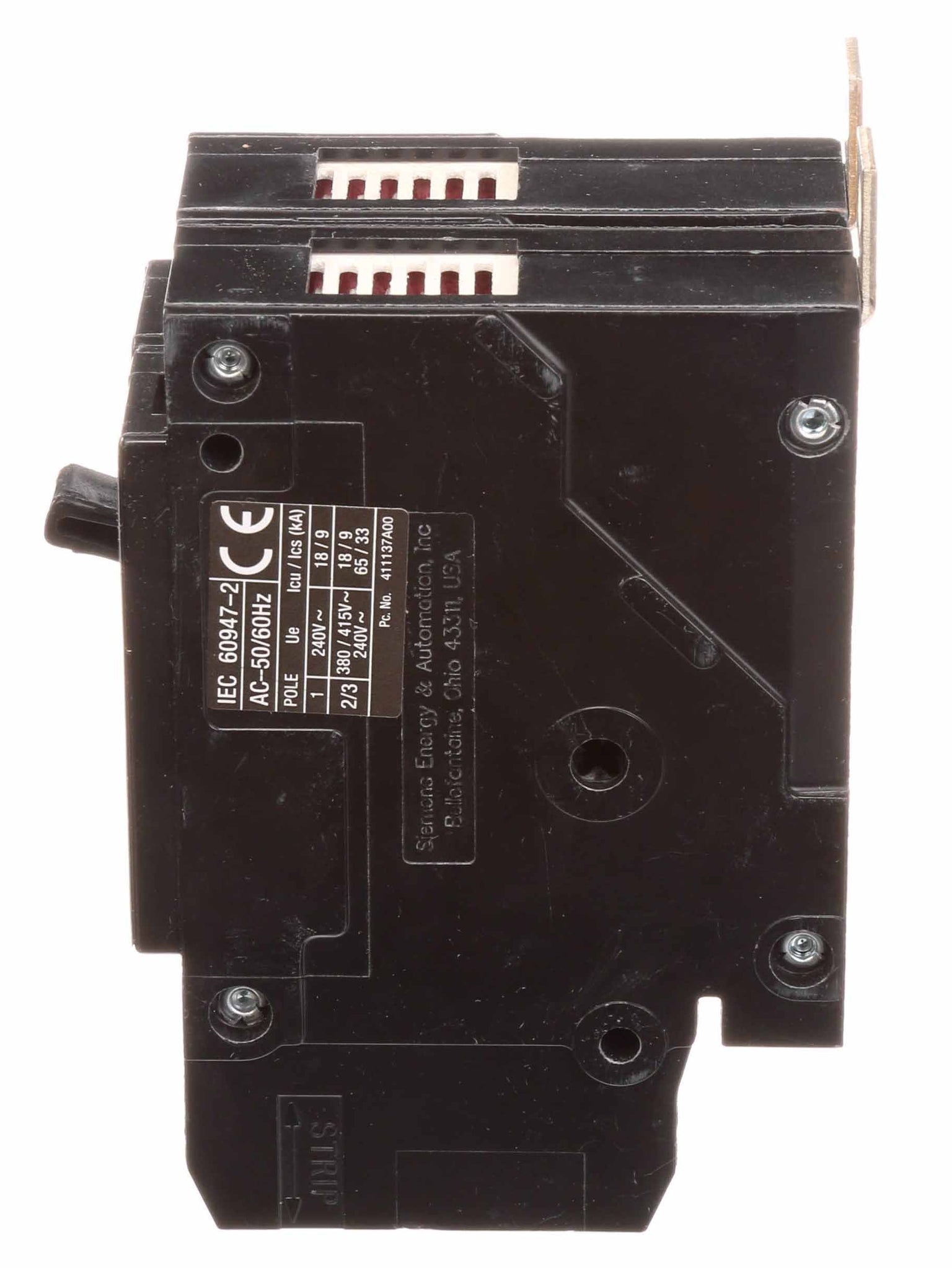

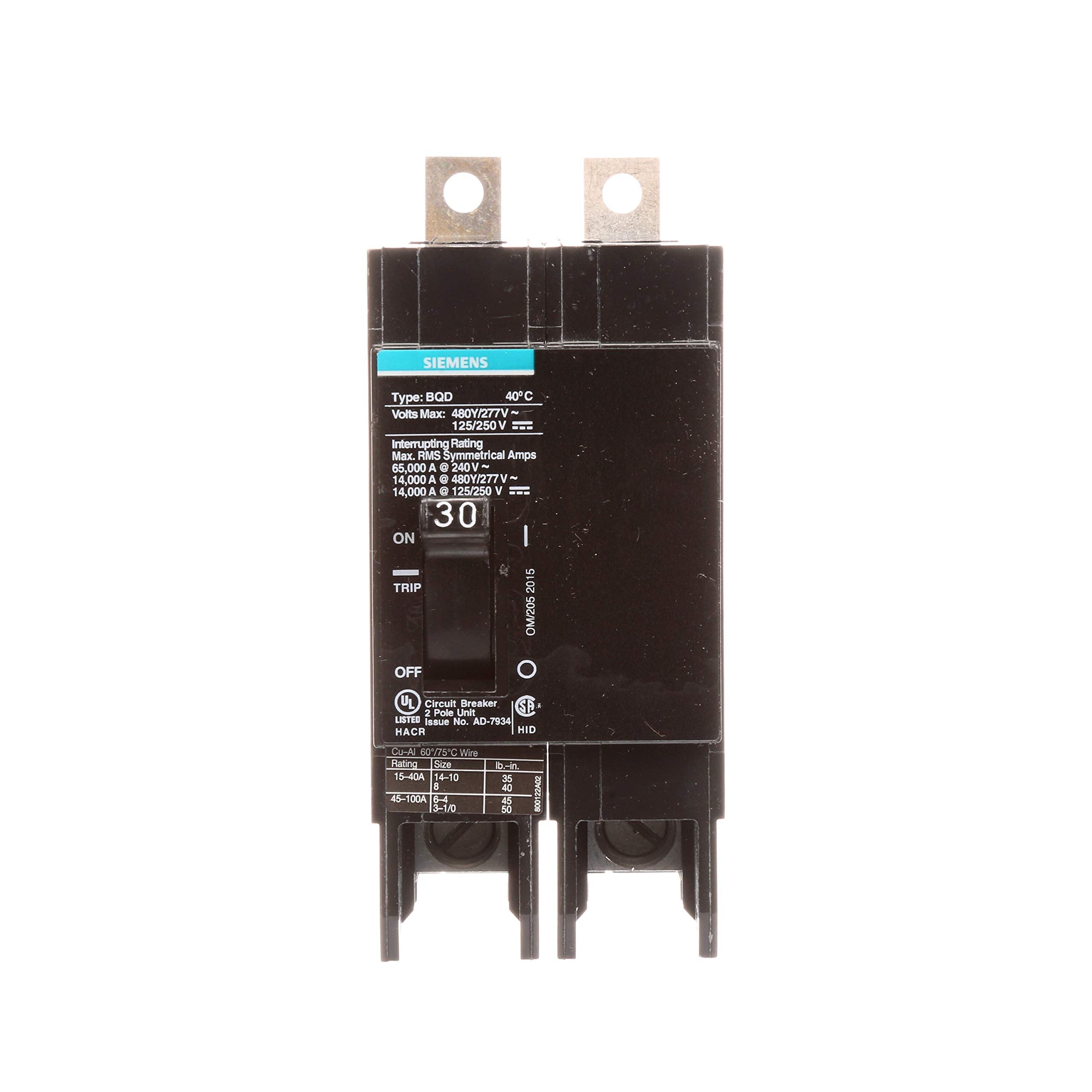

The Siemens BQD230 series circuit breakers are miniature thermal-magnetic circuit breakers used in panelboards for overload and short-circuit protection. They have a current rating of 30A and a voltage rating of 480VAC. These are 2-pole breakers with an interrupt rating of 14kA at 480VAC and 10kAIC.
- HACR Rated
- HID Rated at 480 Star/277 VAC
- Not Suitable for 3 Phase Delta 480V Applications
Product Highlights
Siemens BQD series circuit breakers provide overload and short-circuit protection in panelboards. They feature a 30A current rating, 480VAC voltage rating, and a 14kA interrupt rating.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: BQD230
-
Country of Origin: Mexico
Technical Specifications
-
Catalog Number: BQD230
-
Manufacturer: Siemens
-
Brand: Siemens
-
Country of Origin: Mexico
-
Made in USA: No
-
Number of Poles: 2
-
Standard: UL489CSA-C22.2IEC60947-2
-
UPC: 783643277243
-
GTIN: 00783643277243
-
Application: Lighting, Distribution
-
Approval: UL, CE
-
Installation: Bolt-On
-
Interrupting Rating: 14 kA
-
Type: Branch, Molded Case, Thermal and Fixed Magnetic
-
Used On: P1/P2/P3/P4/P5 Panelboard
-
Actuator Type: Toggle
-
Amperage Rating: 30 A
-
Connection Type: Low Tab
-
Frame: 100 A
-
Frequency Rating: 50/60 Hz
-
Mounting Type: Panel
-
Phase: 1
-
Temperature Rating: 40 deg C
-
Trip Type: Thermal Magnetic
-
Voltage Rating: 277/480 VAC/125/250 VDC
-
Wire Size: 14 to 6 AWG, 12 to 6 AWG
-
Enclosure Material: MOLDED CASE CIRCUIT BREAKER
-
Product Type: CIRCUIT_BREAKER
-
Circuit Breaker Type: Standard
-
Terminal Connection: Lug
-
Max Wire Size: 6 AWG
-
Min Wire Size: 12 AWG (Al), 14 AWG (Cu)
-
Series: BQD
-
Commercial/Residential: Commercial
-
Frequency: 60 Hz
-
Functions: LI - Long-Time and Instantaneous Trip
-
For Use With: P1 Panelboards
-
Standards: HACR
-
Item model number: BQD230
-
Item Package Quantity: 1
-
Number Of Pieces: 1
-
Included Components: BQD230
-
Batteries Included?: No
-
Batteries Required?: No
-
Interrupting Rating at 480 Volts AC: 14,000
-
Product Lifecycle (PLM): PM300:Active Product
-
Product Group: 5361
-
Compliance with the substance restrictions according to RoHS directive: Since: 07/01/2006
-
Compatible Panelboard/Load Center Series: P1
-
Mounting: Bolt on
-
Circuit Breaker Actuator: Toggle
-
Circuit Breaker Mounting Style: Bolt On
