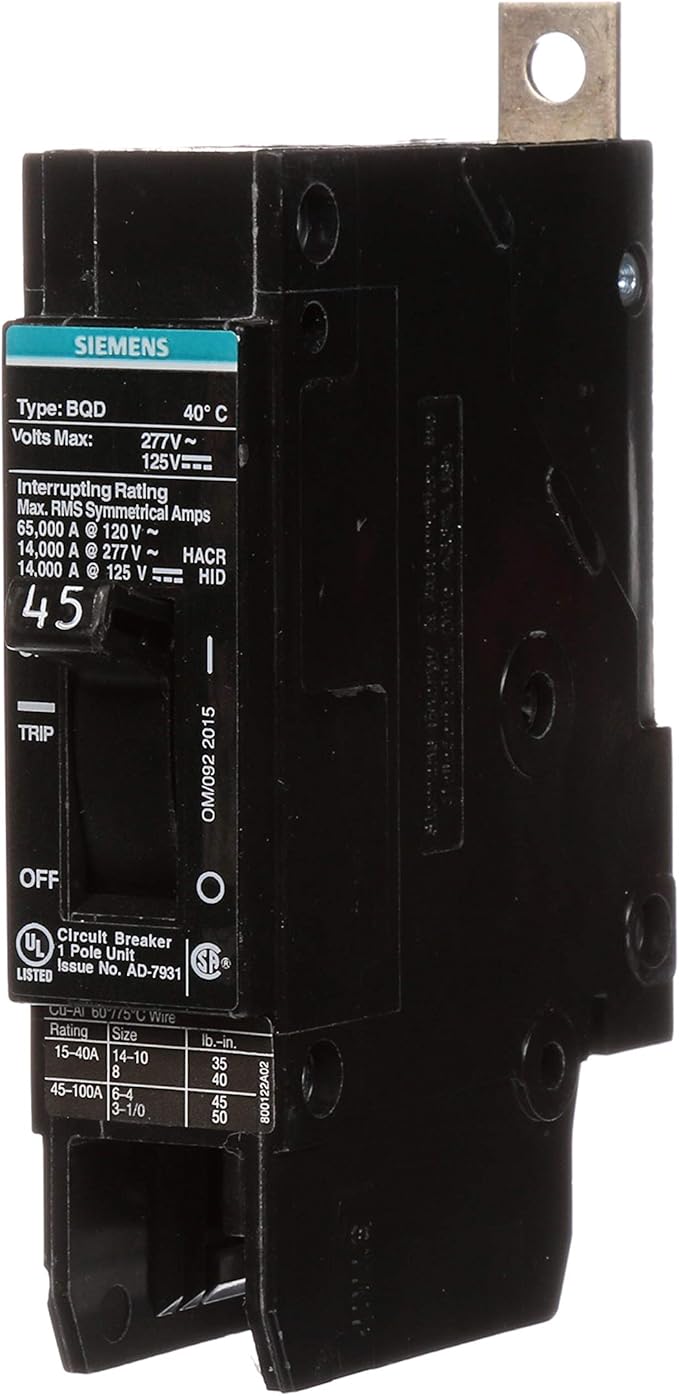

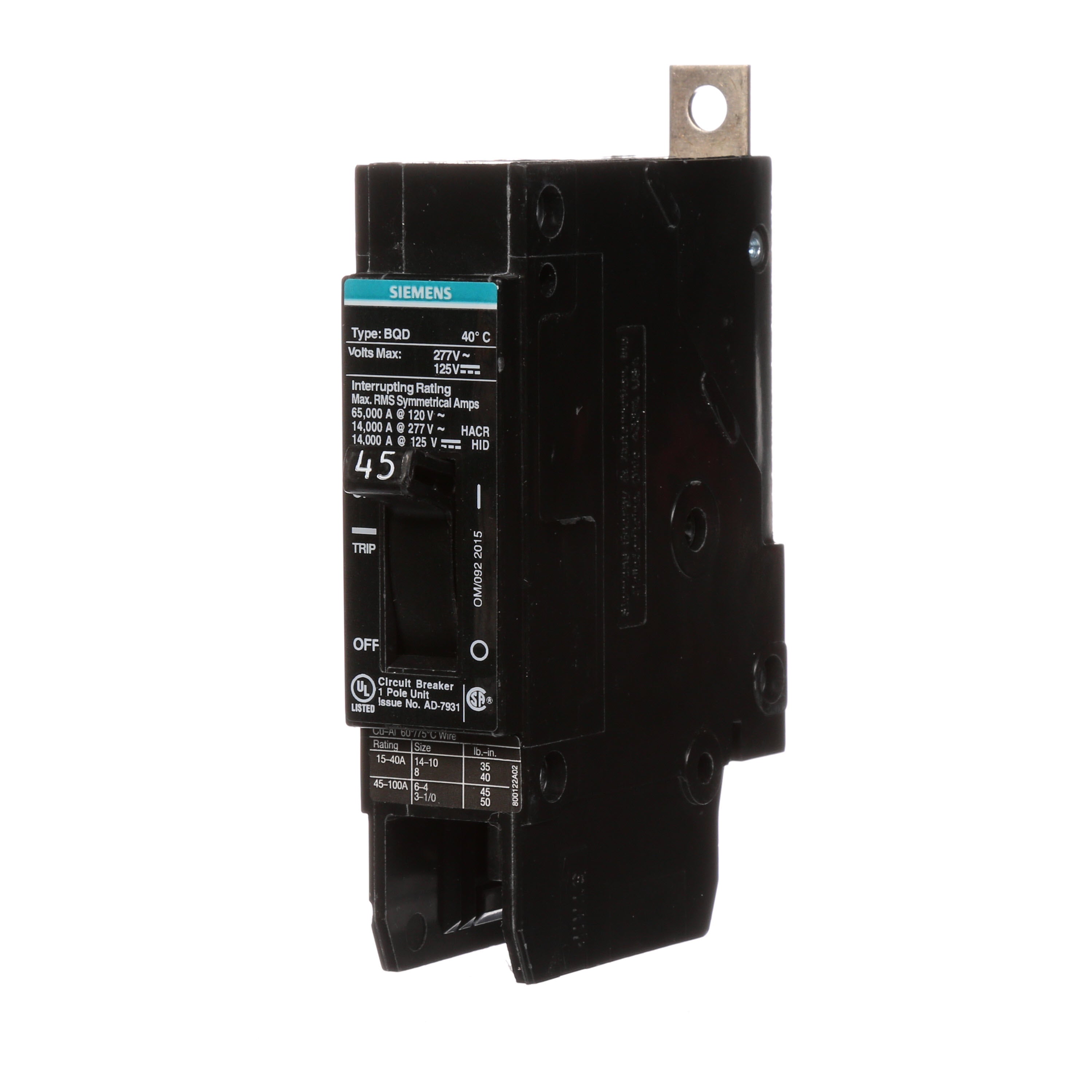

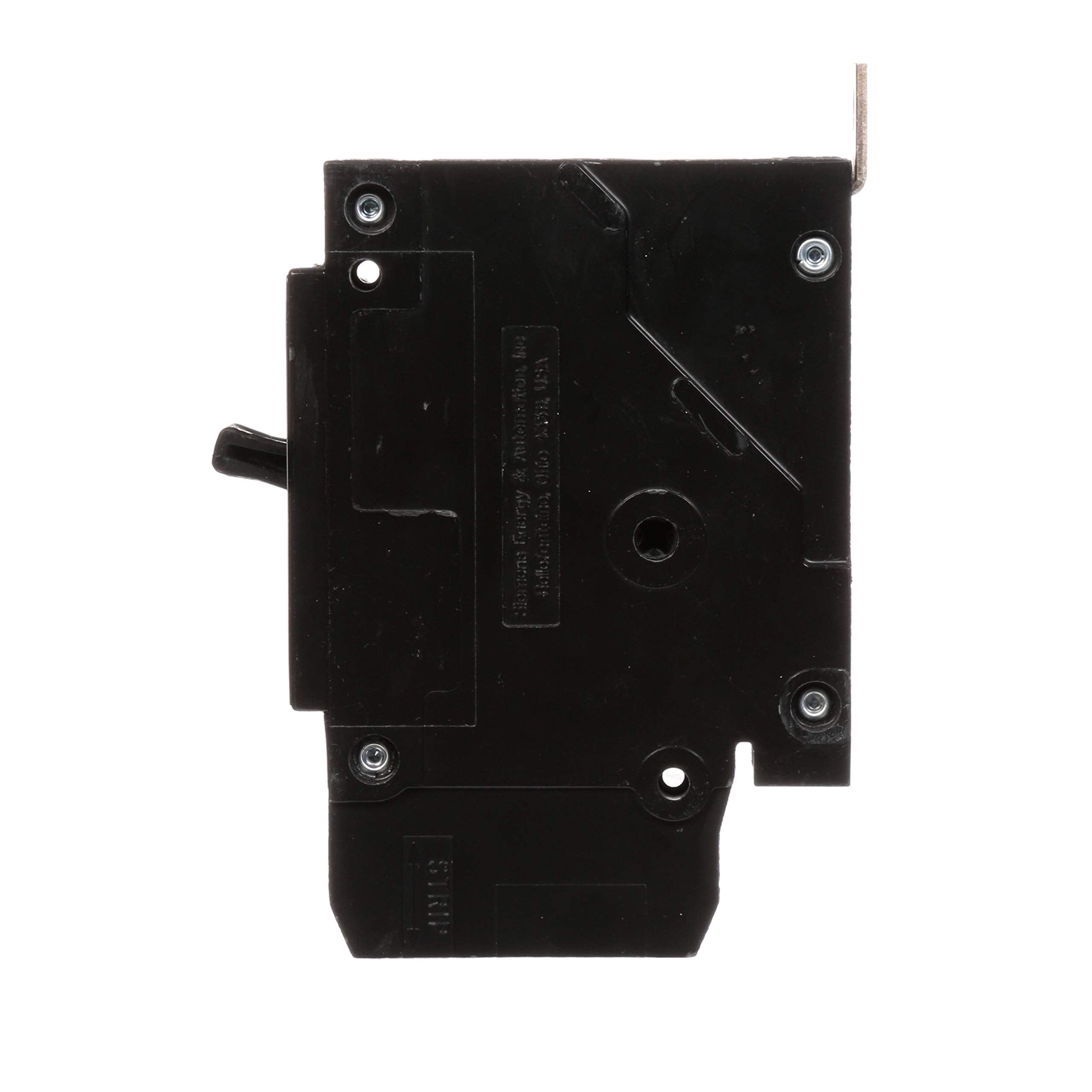

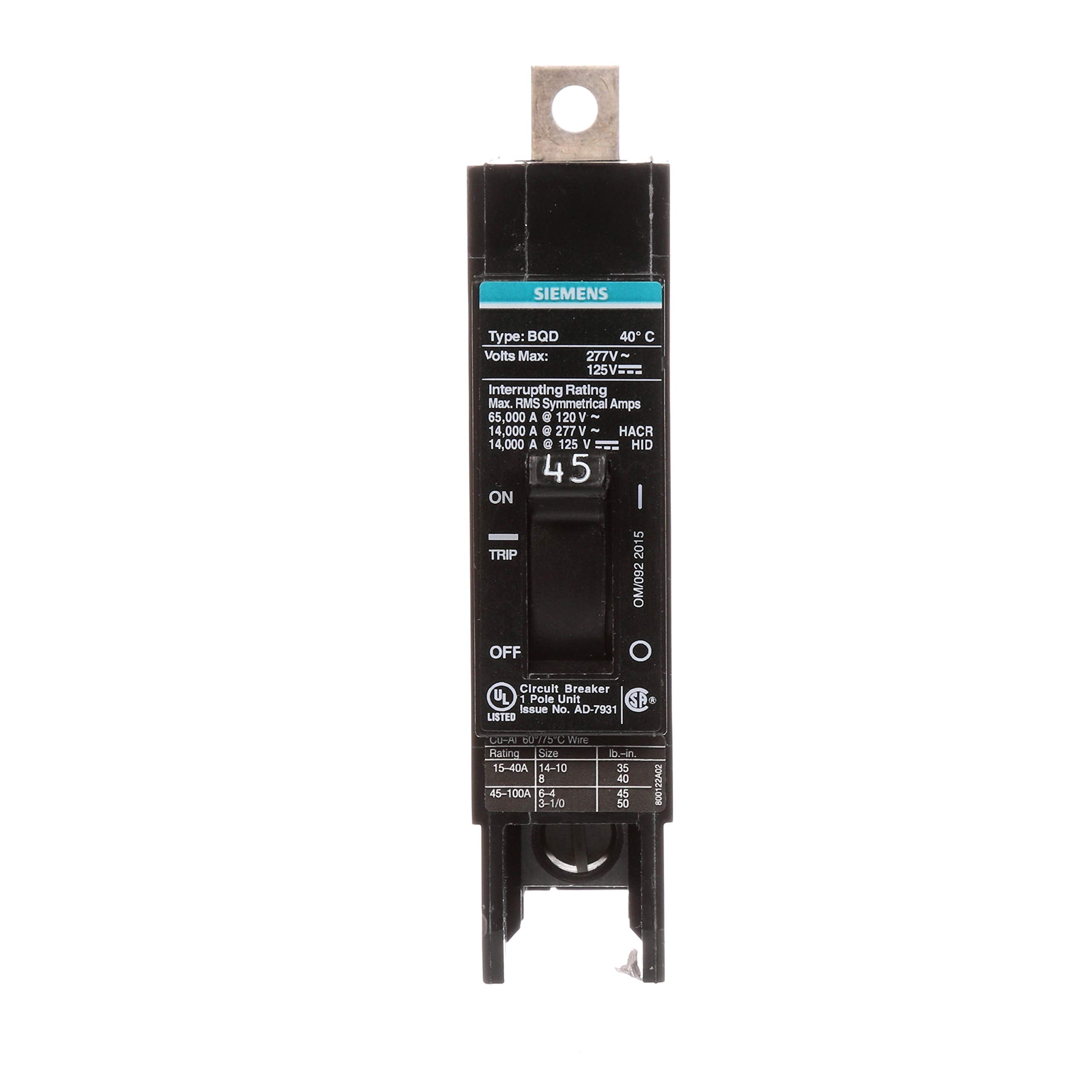

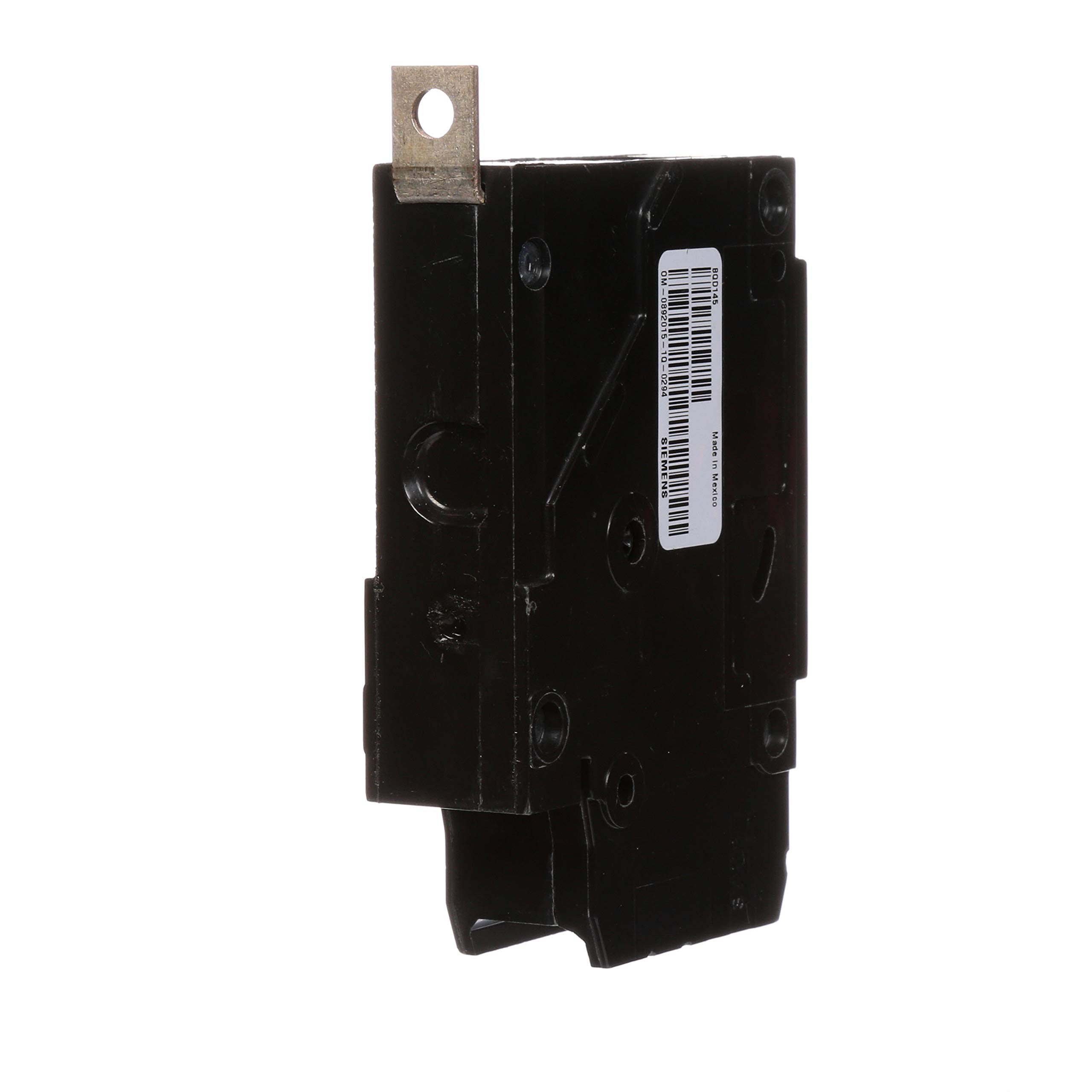

Siemens BQD145 Breaker BQD 1P 45A 277VA

Product Description

The Siemens BQD145 breaker is a miniature circuit breaker used for overload and short-circuit protection of electrical systems. It is a 1P 45A breaker with a voltage of 277VAC and a 14 kAIC interrupt rating. Typically used in residential, commercial, and industrial applications for panel board mounting.

• UL Listed
• Panel board mounting
• Single pole
• Type BQD

Product Highlights

The Siemens BQD145 is a reliable circuit breaker for electrical system protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: BQD145
• Country of Origin: Mexico

Technical Specifications

• Type: BQD
• Brand: Siemens
• Frame: 100A
• Voltage: 277 Volt
• Material: MOLDED CASE CIRCUIT BREAKER
• Frequency: 50/60 Hz
• Trip Type: THERMAL MAGNETIC TRIP UNIT
• Number of Poles: 1 Pole
• Interrupt Rating: 14 kAIC
• Catalog Number: BQD145
• Standard: UL489CSA-C22.2
• Mounting: Panel board mounting
• Amperage: 45-Amp
• Current Rating: 45 Amps
• Circuit Breaker Type: Standard
• Volts AC: 277 Volts AC
• Pole: 1 Pole
• Series: BQD Series
• Interrupting Rating at 277 Volts AC: 14,000
