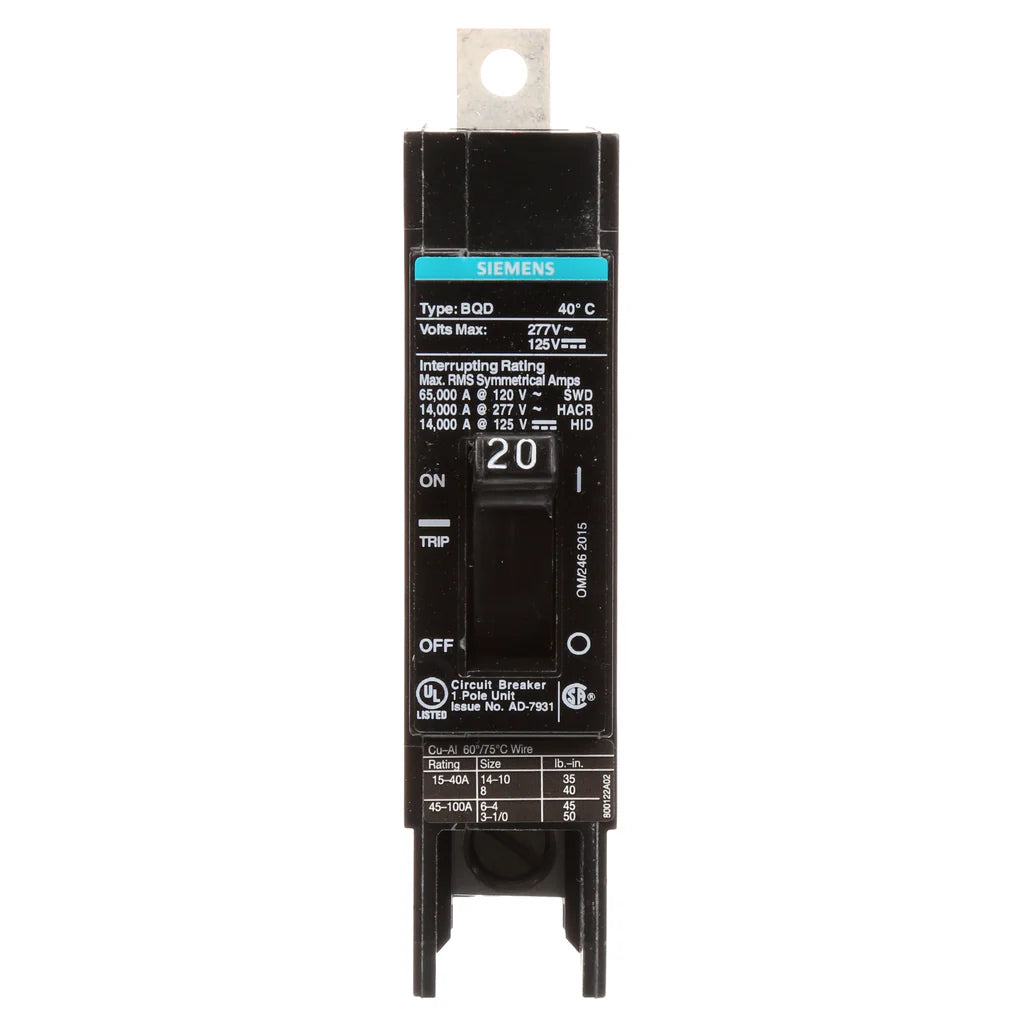

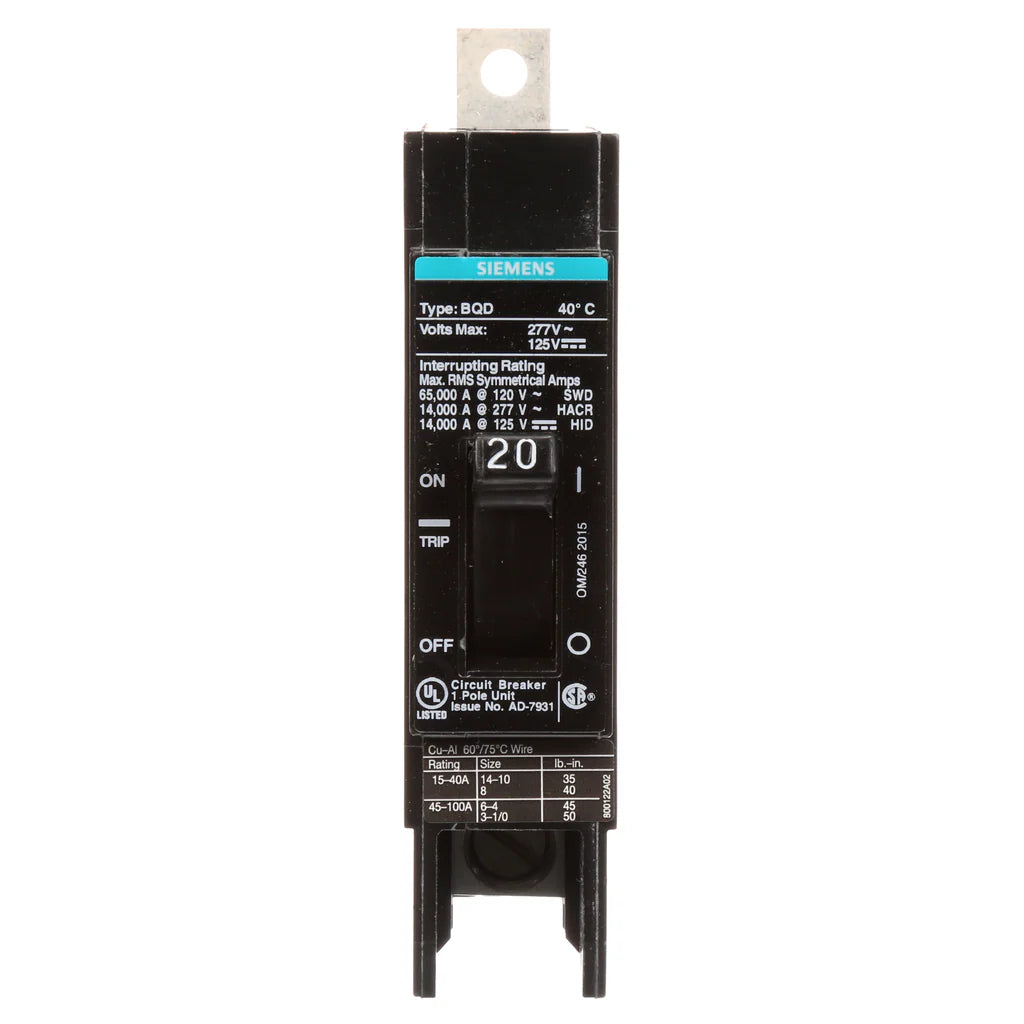

Siemens BQD120 Molded Case Circuit Breaker, 277 VAC, 20 A, 14 kA Interrupt, 1 Pole

Product Description

The Siemens BQD120 Molded Case Circuit Breaker is designed for reliable circuit protection. This circuit breaker operates at 277 VAC and supports a maximum current of twenty amperes. It features a fourteen kA interrupt rating, providing effective protection against overloads and short circuits.

• Voltage Rating: 277 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 14 kA

Product Highlights

This device includes a thermal/magnetic trip mechanism, providing dependable circuit protection. It is built for panel mounting and can accommodate wire sizes from fourteen to six AWG for copper and twelve to six AWG for aluminum.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer Part No: BQD120

Technical Specifications

• Type: BQD
• Number of Poles: 1
• Frame Rating: 100 A
• Frequency Rating: 50/60 Hz
• Temperature Rating: 40 deg C
• Connection Type: Low Tab
• Dimensions: 4 in L x 3 in W x 1 in H
• Application: Construction and lighting panels
