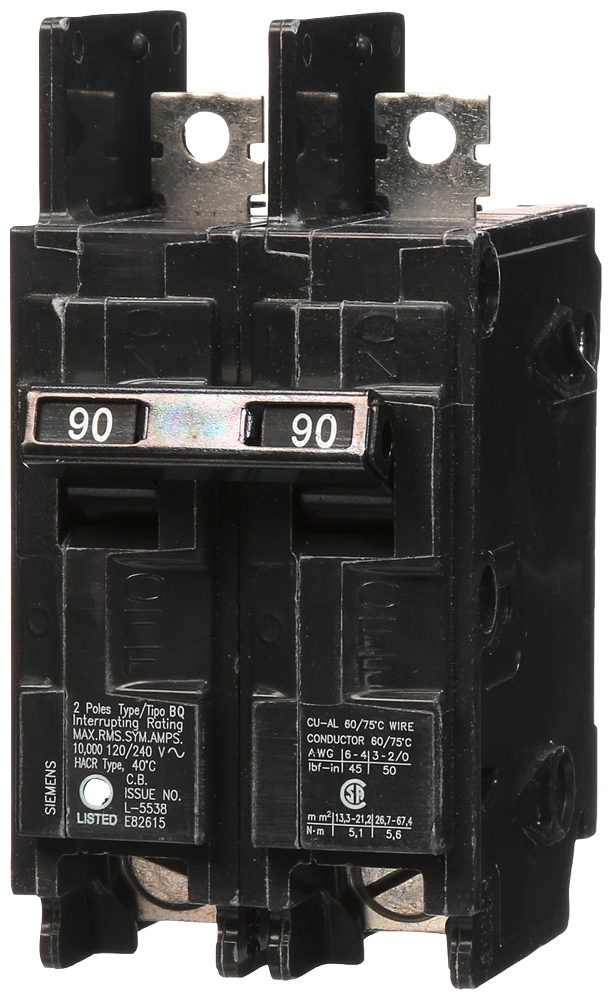

Siemens BQ2B090 2-Pole 90 Amp 120/240 VAC 10 kA Circuit Breaker

Product Description

The Siemens BQ2B090 is a thermal-magnetic molded case circuit breaker. It operates at 90 Amps and is rated for 120/240 Volts. This device has two poles and an interrupting rating of 10 kA. It is designed for efficient electrical distribution in residential and commercial applications.

• Thermal-Magnetic Trip for reliable operation
• Supplied with load side lugs for easy installation
• Meets UL 489 and CSA C22.2 standards

Product Highlights

This circuit breaker allows for manual control and provides automatic overcurrent protection. A simple flip of the handle resets the circuit after a fault. Suitable for use in panelboards.

Product Information

Standard Information

• Brand: Siemens
• MPN: BQ2B090

Technical Specifications

• Type: Molded Case, Thermal Magnetic
• Current: 90 Amps
• Voltage: 120/240 Volts
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Dimensions: 4.5 inches (length) x 2 inches (width) x 4.25 inches (height)
• Weight: 0.615 lbs
• Connection Type: Lug-In/Lug-Out
• Wire Size: 4 to 1/0 AWG (Copper), 2 to 1/0 AWG (Aluminum)
• Application: Electrical Distribution
