Product Description

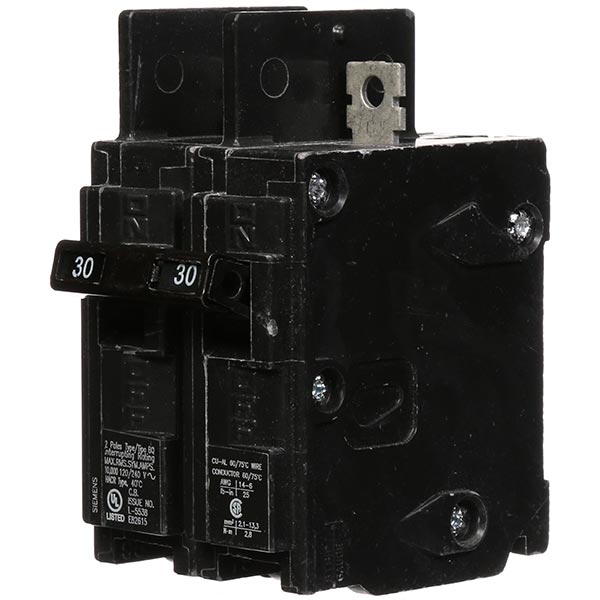

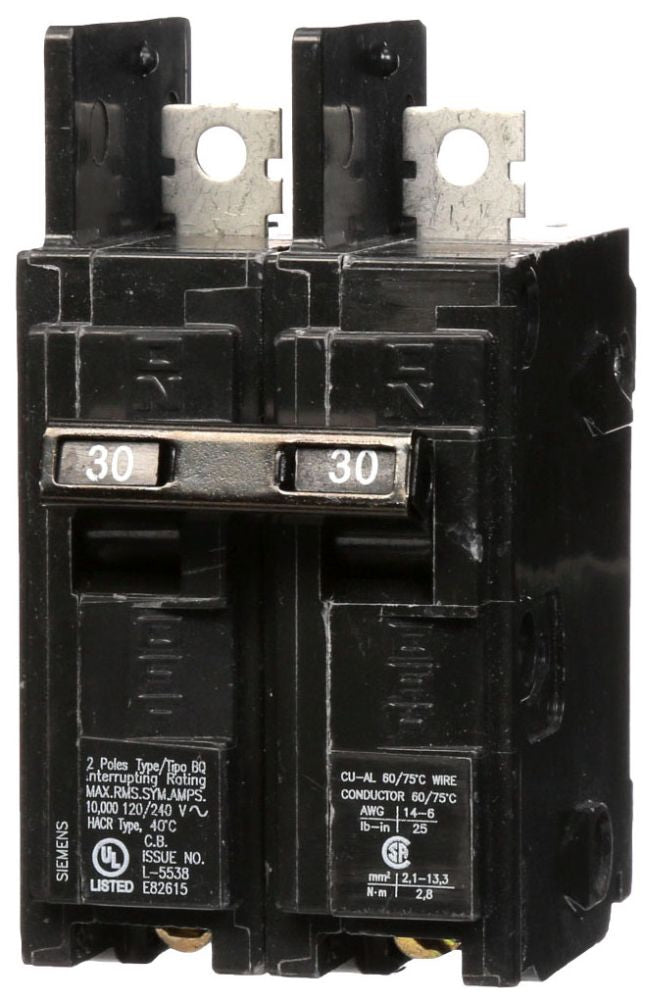

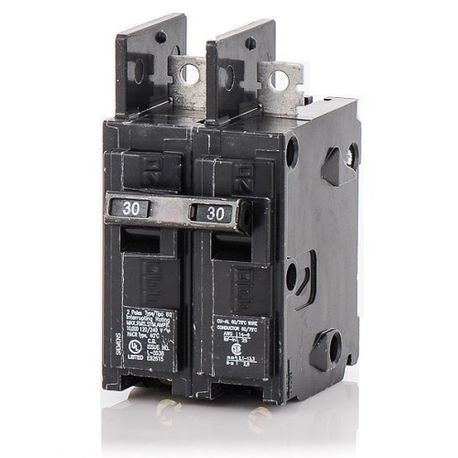

Siemens BQ2B030 is a molded case circuit breaker used for low voltage applications. This breaker operates at 120/240 VAC and has a current rating of thirty amps with a ten kA interrupt capacity. It is designed to provide overcurrent protection while also allowing for manual control of electrical circuits. The BQ2B030 features a toggle actuator with a two-pole design.
- Rated for 120/240 VAC
- 30 amps current rating
- 10 kA interrupting capacity
Product Highlights
This circuit breaker is ideal for electrical distribution, offering a compact solution for protecting machinery and circuits from overloads and short circuits.
Product Information
Standard Information
-
Manufacturer: Siemens
-
Type: Molded Case Circuit Breaker
Technical Specifications
-
MPN: BQ2B030
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 30 A
-
Interrupt Rating: 10 kA
-
Number of Poles: 2
-
Temperature Rating: 40 deg C
-
Wire Size: 14 to 6 AWG copper, 12 to 10 AWG aluminum
-
Dimensions: 4 in L x 3 in W x 2 in H
-
Connection Type: Bolt-On/Lug-In/Lug-Out
-
Frequency Rating: 60 Hz
