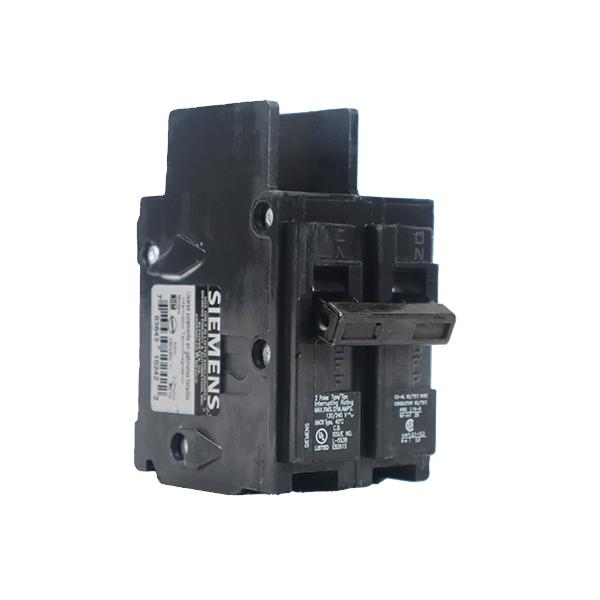

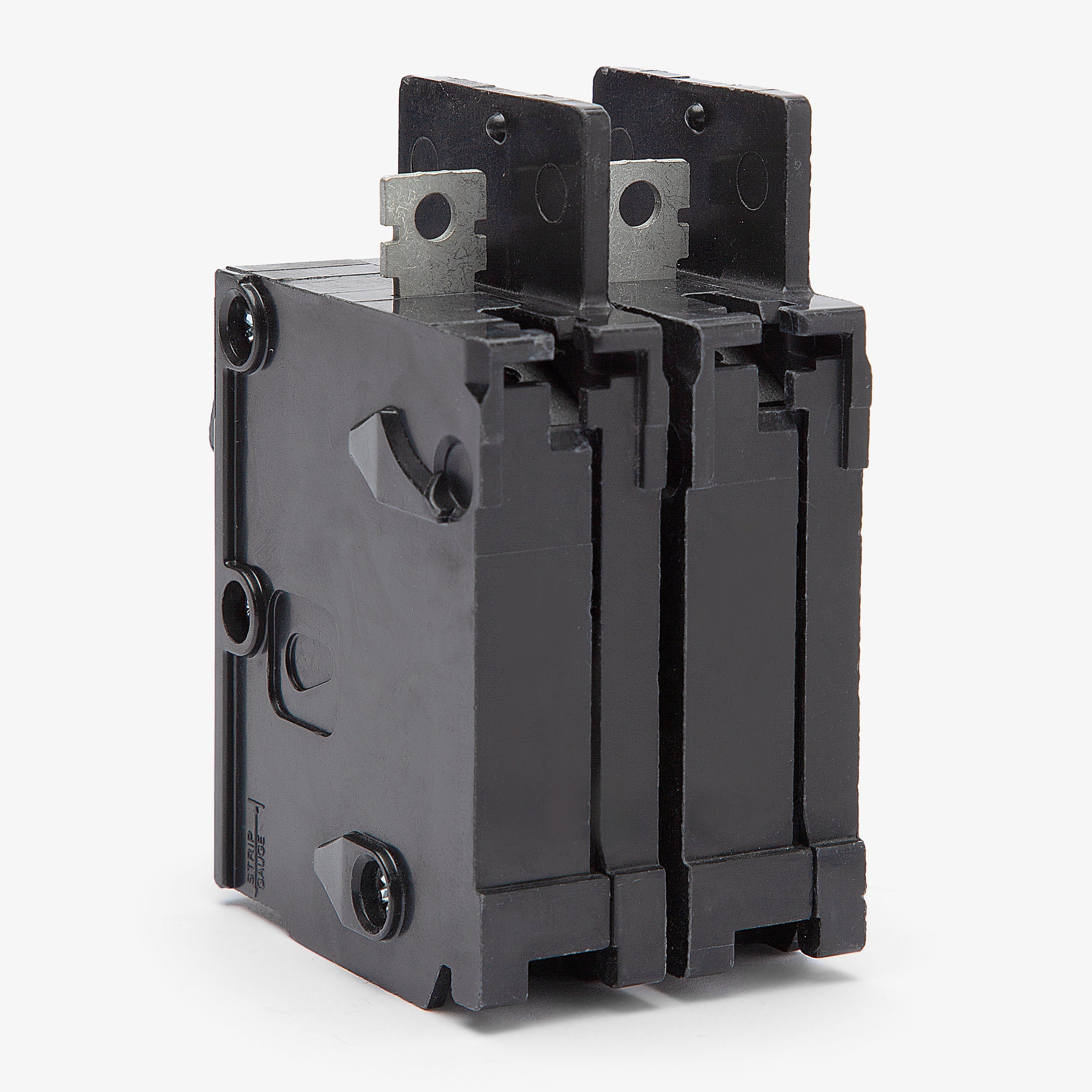

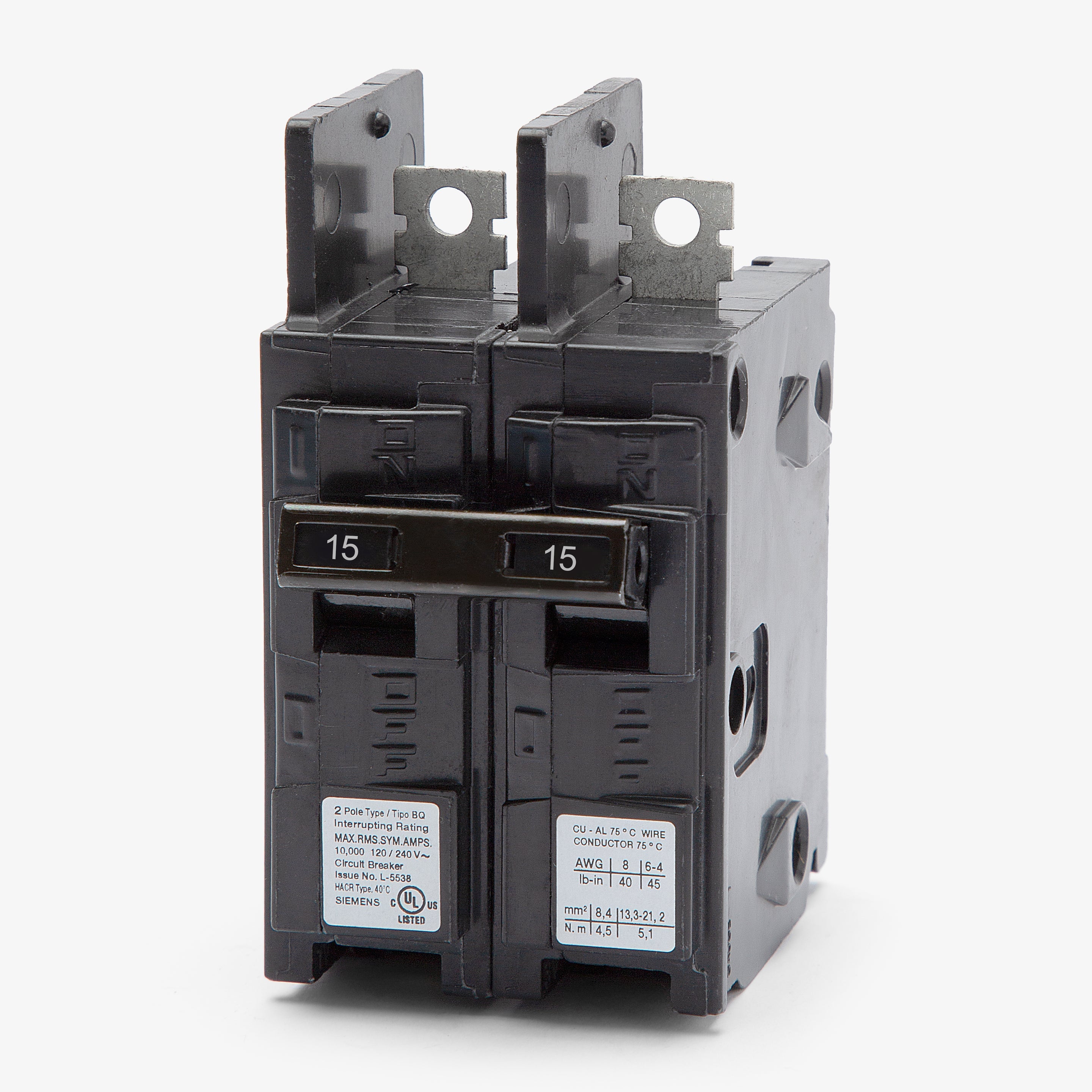

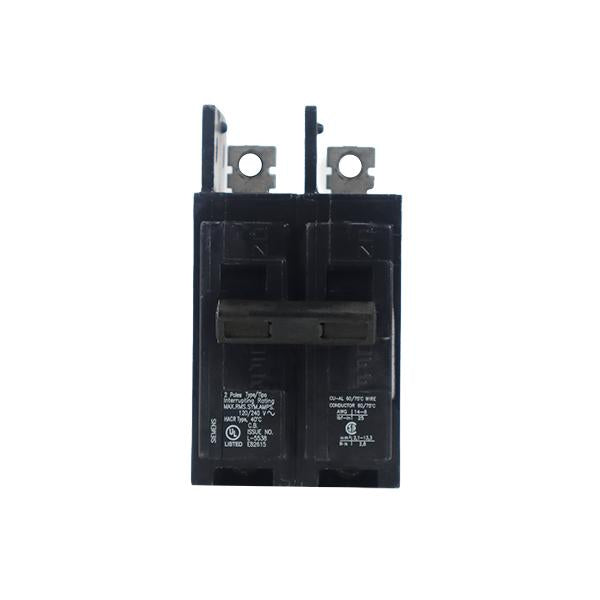

Siemens BQ2B015H Circuit Breaker 15A 2 Pole

Product Description

The Siemens BQ2B015H is a robust thermal-magnetic trip protection. This 15A, 2-pole molded case circuit breaker is designed to safeguard commercial branch circuits against overloads and short circuits. The unit installs firmly into Siemens P1, P2, and P3 panelboards using a secure bolt-on connection. It features a 22kAIC interrupting rating at 120/240VAC.

• Thermal-magnetic trip protection
• Safeguards commercial branch circuits
• Protects against overloads and short circuits

Product Highlights

The Siemens BQ2B015H circuit breaker provides reliable overcurrent protection and can be easily reactivated after a short circuit.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: BQ2B015H

Technical Specifications

• Brand: Siemens
• Series: BQ
• Part Number: BQ2B015H
• Amperage: 15A
• Voltage: 120/240VAC
• Poles: 2
• Phase: 1
• AIC Rating: 22kA @ 120/240VAC
• Mounting Style: Bolt-On
• Terminal Type: Lugs
• For Use With: Siemens P1, P2, P3 Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-6 AWG (Cu), 12-6 AWG (Al)
• Max Wire: 6 AWG
• Min Wire: 14 AWG (Cu), 12 AWG (Al)
• Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
• Accessories: Load Side Lugs
• Standards: CSA C22.2 No. 5, HACR Rated, UL 489
• Approval: CSA, HACR, UL
• Temp Rating: 40C
• Manufacturer: SIEMENS
• Special Features: Finger Safe Terminal Shield
• UPC Code: 783643161573
• Actuator Type: Toggle
• Type: Thermal/Magnetic
• Termination: screw
• Current Rating: 15 A
• Protection: Thermal Magnetic
• Interrupting Rating (AIC): 22kA@240V
