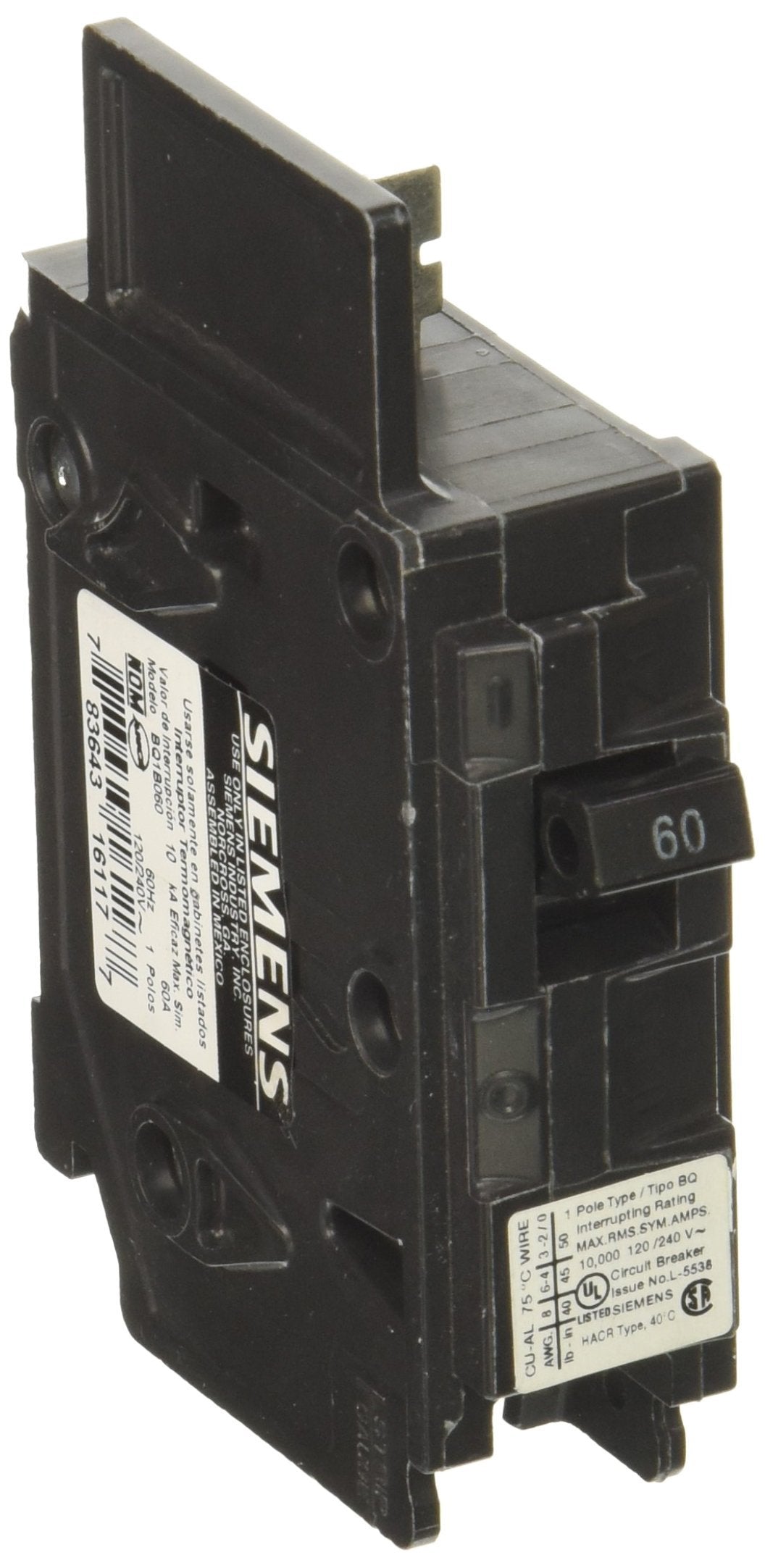

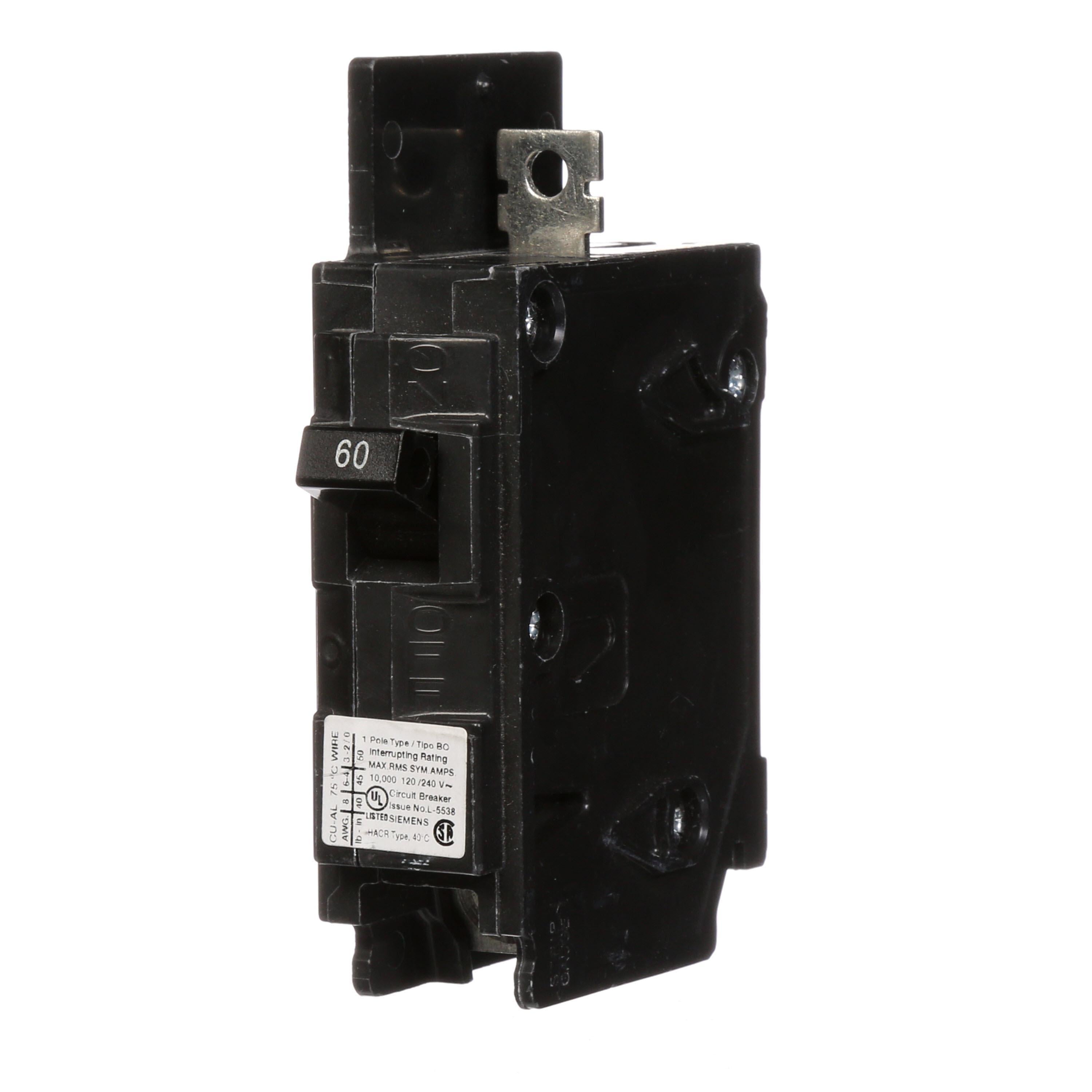

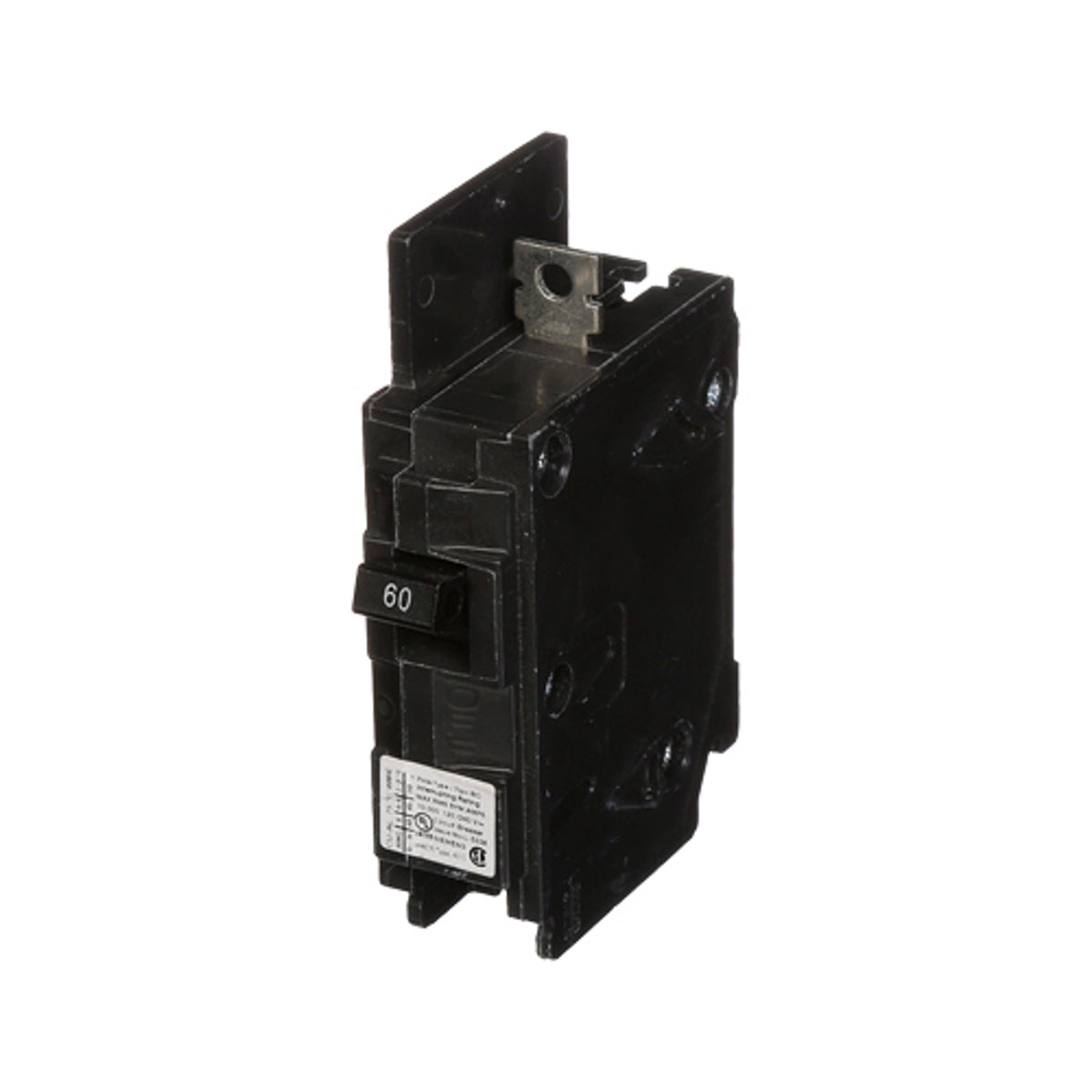

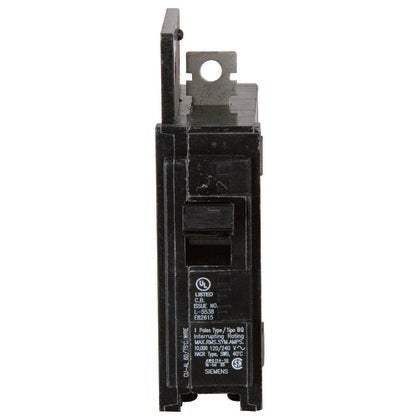

Siemens BQ1B060 DISJ. BQ,TM,1P,1 60 Amp

Product Description

The Siemens BQ1B060 is a type BQ molded case circuit breaker with thermal-magnetic trip, designed for electrical distribution. This 1-pole breaker is rated for 120V and 60A, with a 10kA interrupt rating. It features lug-in/lug-out connections and is supplied with load side lugs.

• Thermal-Magnetic trip type
• Interrupt rating of 10kA
• Bolt-On connection type

Product Highlights

The Siemens BQ1B060 circuit breaker provides reliable circuit protection with a 10kA interrupt rating and convenient lug-in/lug-out connections.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: BQ1B060
• Country of Origin: Mexico

Technical Specifications

• GTiN: 00783643161177
• Type: BQ
• Brand: Siemens
• Width: 3.700 in
• Height: 2.9 Inch
• Length: 1 Inch
• Current: 60 Amp
• Voltage: 120 Volt
• Actuator: Toggle Actuator
• Amperage: 60 Amp
• Standard: UL 489
• Trip Type: Thermal Magnetic
• Connection Type: Bolt-On
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Country of Origin: Mexico
• Catalog Number: BQ1B060
• Manufacturer: Siemens
• Item Type: BQ
• Voltage Rating: 120
• MPN: BQ1B060
• Product Type: CIRCUIT_BREAKER
• Mounting: Panel
• Volts AC: 120
• Poles: 1
• Family / Style: BQ
• Amps: 60
• Interrupt Rating AC: 10 kA
• Wire Size: 8 to 4 AWG, 8 to 2 AWG
• Connection type: Bolt-On/Lug-In/Lug-Out
• UNSPSC: 39121601
• Frequency: 60 Hz
• Phase: 1 ph
• Temperature: 40 deg C
• Trip: Thermal Magnetic Trip
