Product Description

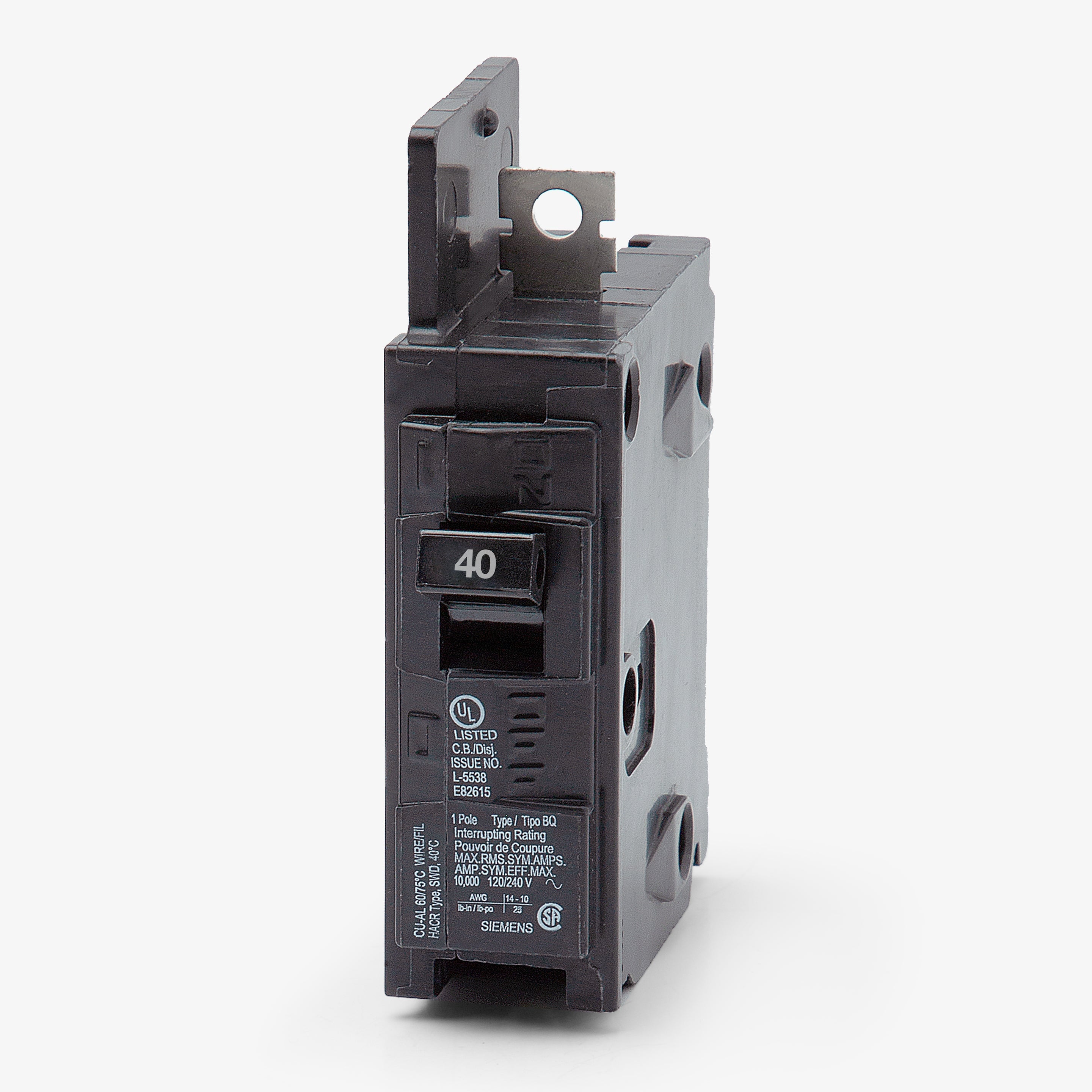

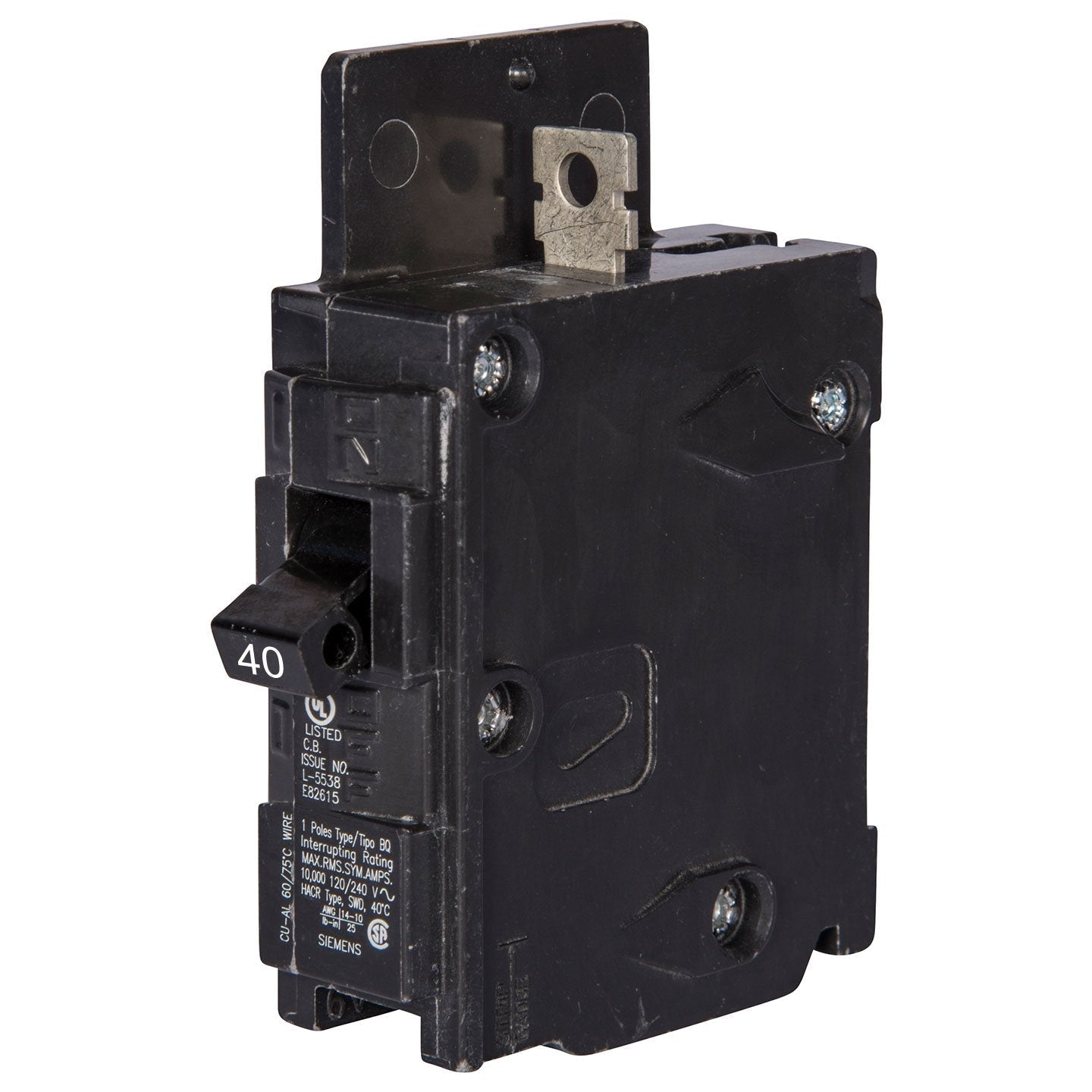

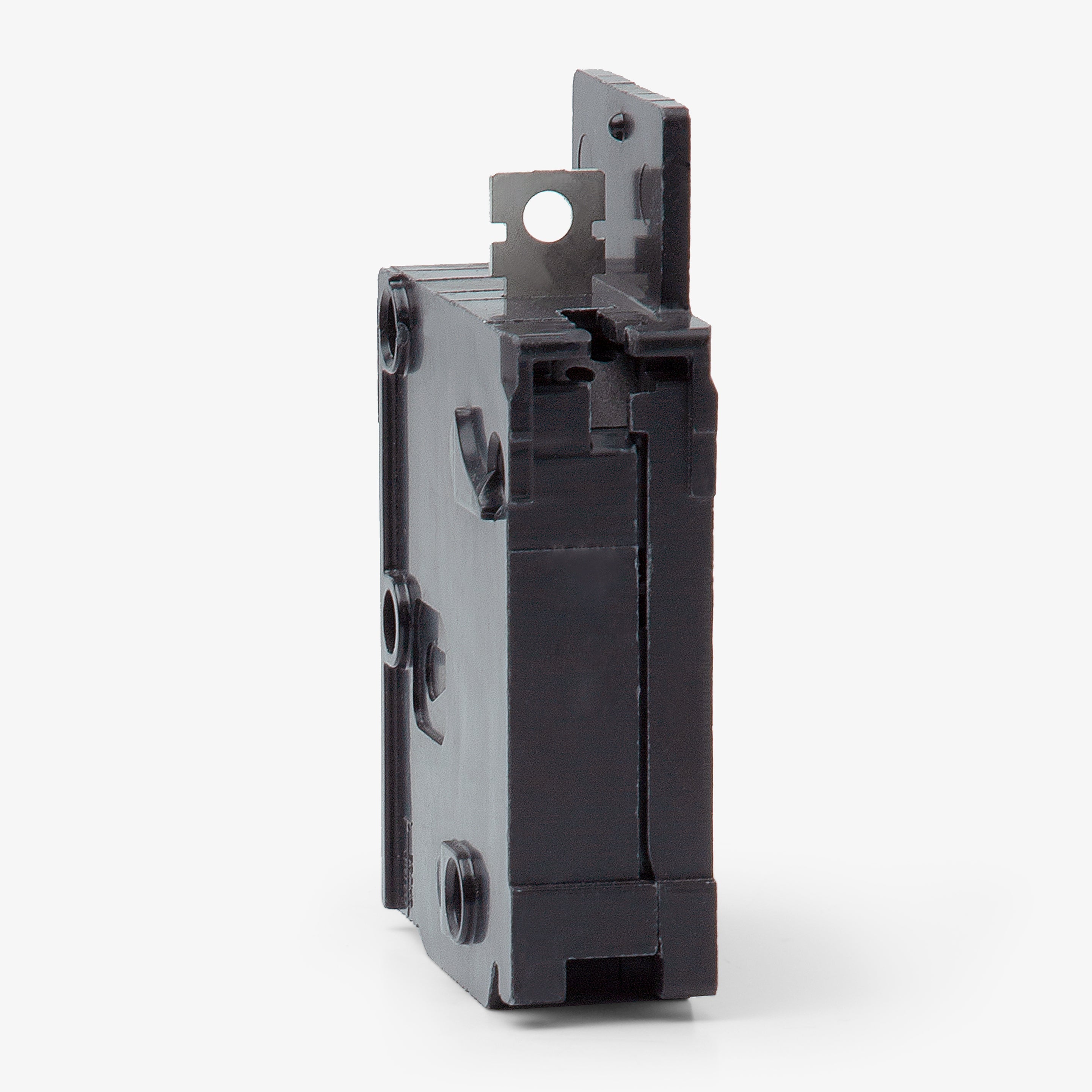

The Siemens BQ1B040 is a cable-in, cable-out, non-interchangeable trip molded case circuit breaker. It is available in 10-125A, 1, 2 and 3-pole and supplied with load side lugs. Designed for Siemens infrastructure, this unit mounts into P1, P2, and P3 panelboards. The bolt-on connection offers superior mechanical stability.
- Authentic Siemens Product
- Overcurrent protection

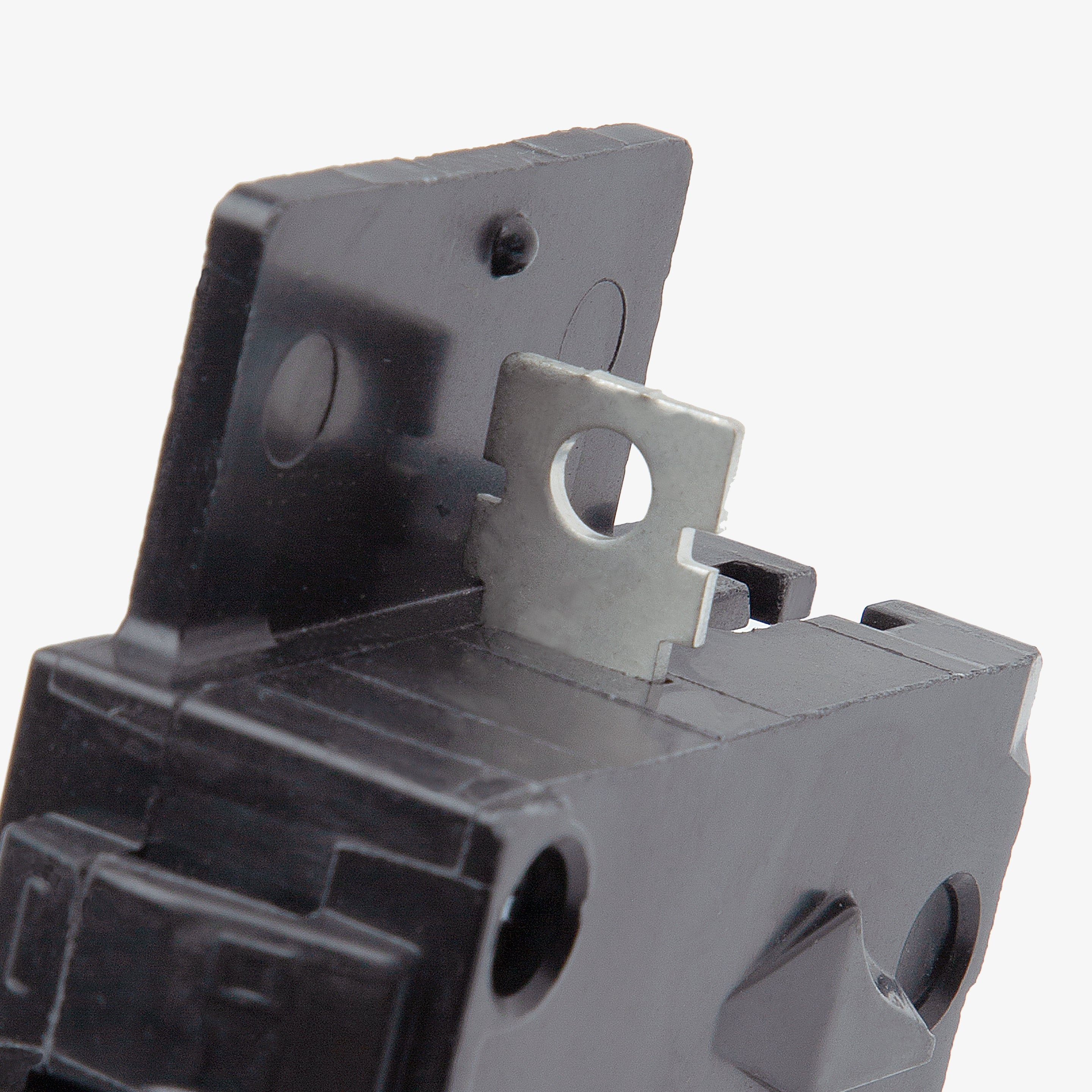

- Bolt-on connection
Product Highlights
The Siemens BQ1B040 circuit breaker provides essential overcurrent protection for commercial branch circuits. With a 10kAIC rating at 120VAC, this breaker meets UL 489 standards and is HACR rated for HVAC applications.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: BQ1B040
-
Country of Origin: Mexico
Technical Specifications
-
Brand: SIEMENS
-
Current Rating: 40 Amps
-
Circuit Breaker Type: Standard
-
Mounting Type: Pole Mount
-
Number Of Poles: 1 Pole
-
Voltage: 120 Volts
-
Manufacturer: Siemens
-
Family: BQ Series
-
Cat. No.: BQ1B040
-
Amperage: 40 Amp
-
Connection: Bolt-On
-
Phase: 1
-
Interrupting Rating: 10000 Ampere
-
Approval: CSA Approved and UL Listed
-
Series: BQ
-
Part Number: BQ1B040
-
AIC Rating: 10kA @ 120VAC
-
Mounting Style: Bolt-On
-

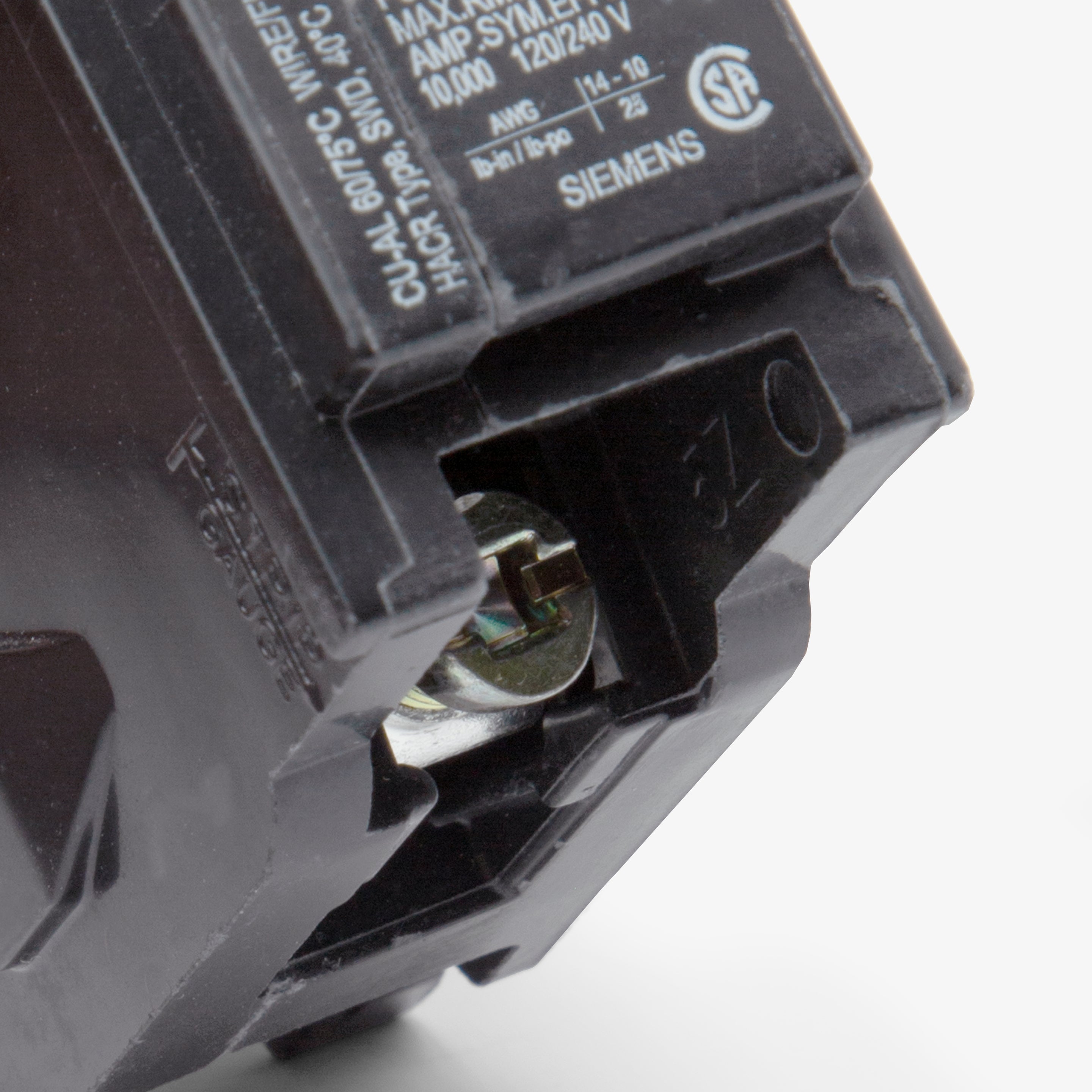

Terminal Type: Lugs
-
For Use With: Siemens Panelboards (P1, P2, P3)
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-6 AWG (Cu), 12-6 AWG (Al)
-
Max Wire: 6 AWG
-
Min Wire: 14 AWG (Cu), 12 AWG (Al)
-
Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
-
Accessories: Load Side Lugs
-
Standards: CSA C22.2 No. 5, HACR Rated, UL 489
-
Temp Rating: 40C
-
Construction Features: HACR Rated, HID Rated
-
Actuator: Switch Position Knob
-
Applications: Electrical Distribution
-
Current: 40 Amp
-
TC Connection: BOLT-ON
-
Trip Range: Thermal Magnetic
-
Trip Type: Thermal Magnetic
-
Type: BQ
-
Condition: New
-
UPC: Does not apply
