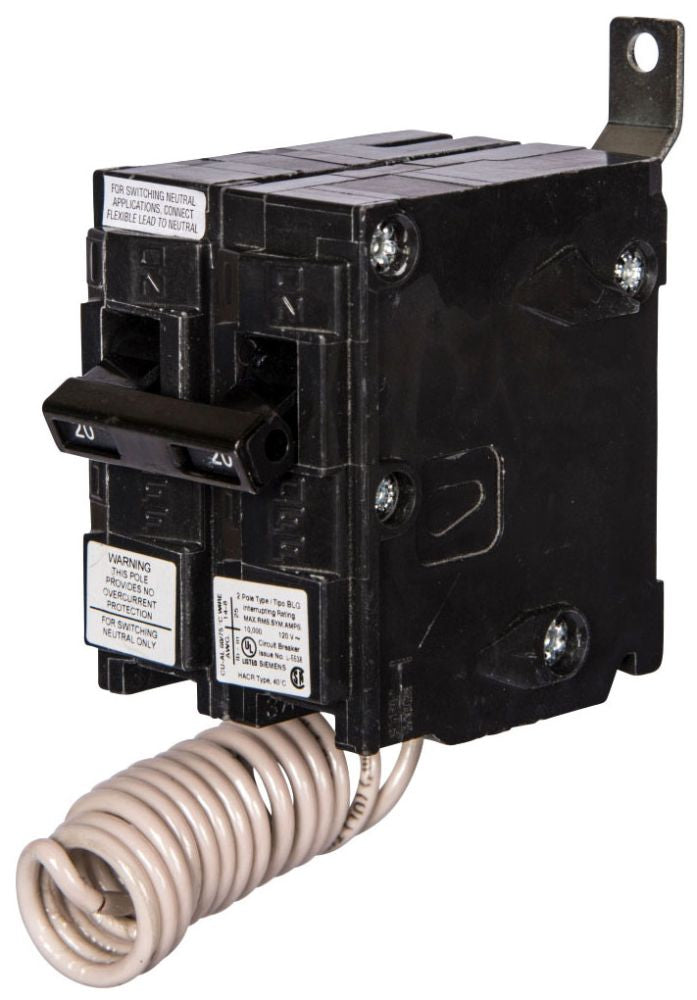

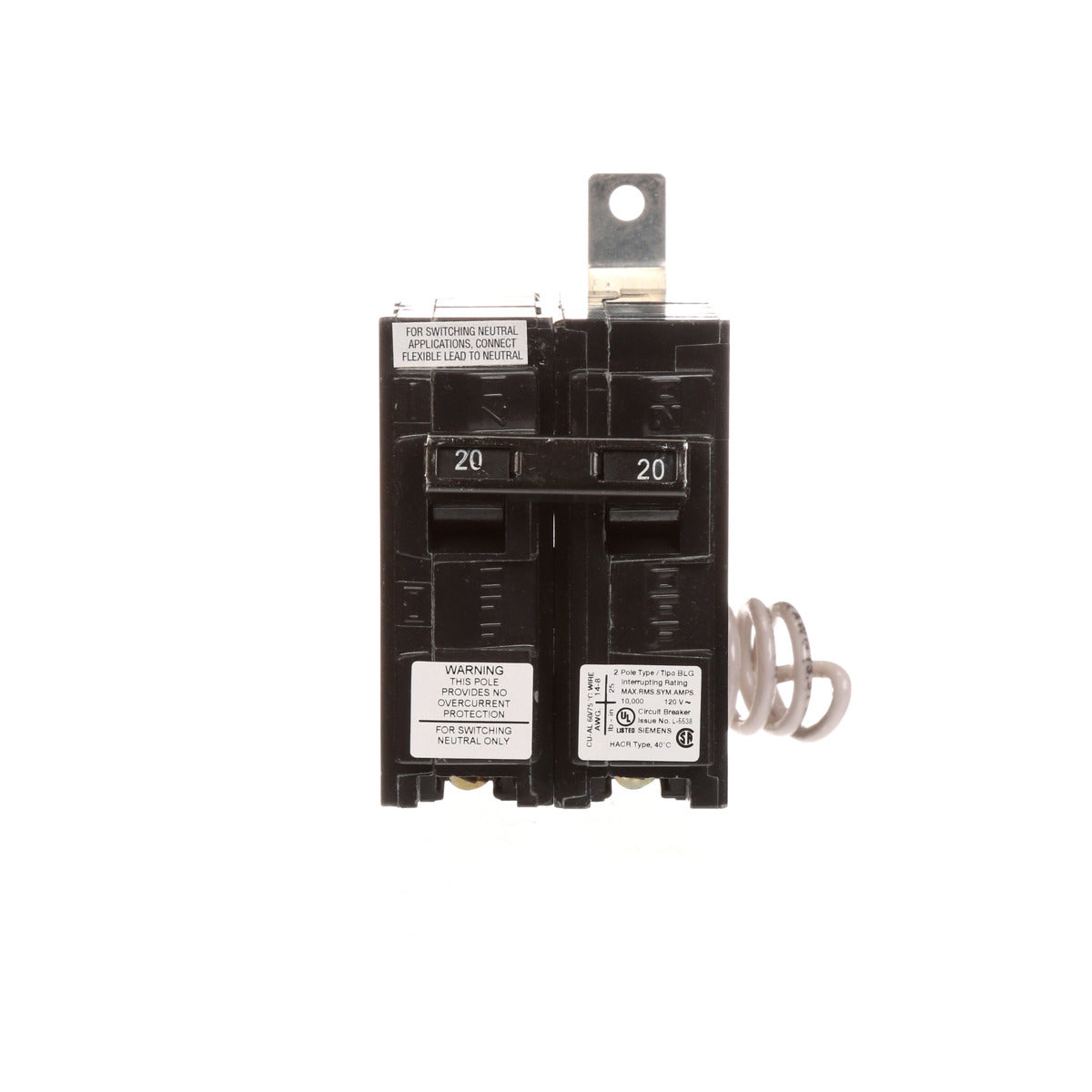

Siemens BG220 Low Voltage Molded Case Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 2 Poles

Product Description

The Siemens BG220 is a low voltage molded case circuit breaker designed for electrical distribution applications. It features a voltage rating of 120 VAC and a current rating of 20 Amperes. This device is suitable for installations requiring a turning point for circuit protection with a thermal/magnetic trip mechanism.

• Low voltage, molded case design
• Built-in thermal/magnetic trip for circuit protection
• Two-pole configuration allows for versatile applications

Product Highlights

This breaker is ideal for lighting, distribution, and fluorescent lighting applications. It includes features for HACR rated service, allowing it to be used in heating, air conditioning, and refrigeration circuits, ensuring versatility across various installations.

Product Information

Standard Information

• Manufacturer: Siemens
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: BG220
• Voltage Rating: 120 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Interrupting Rating: 10 kA
• Approval: UL 489, CSA C22.2
• Construction Feature: Switching Neutral
• Mounting Type: Bolt-On
• Wire Size: 14 to 6 AWG (Copper), 12 to 6 AWG (Aluminum)
