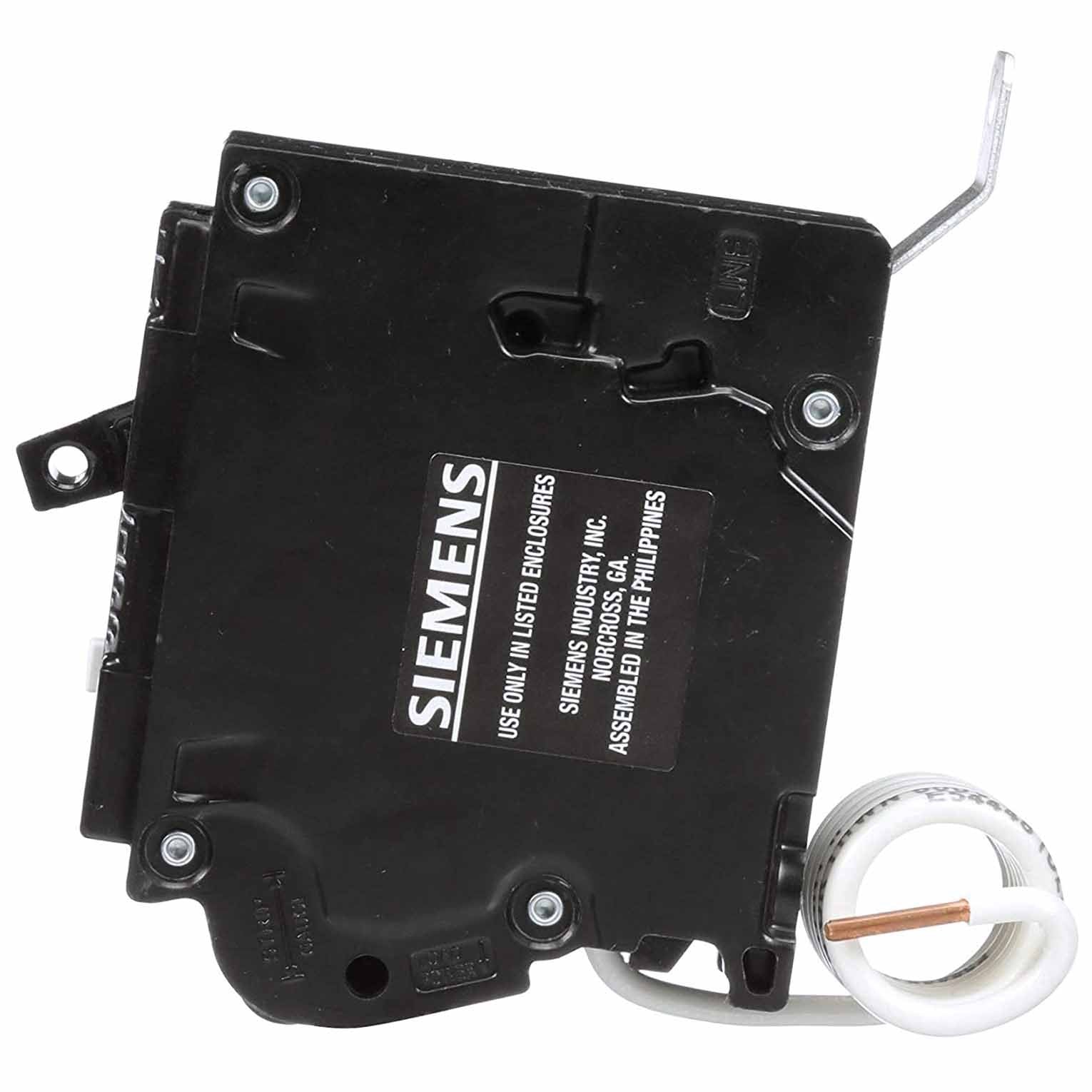

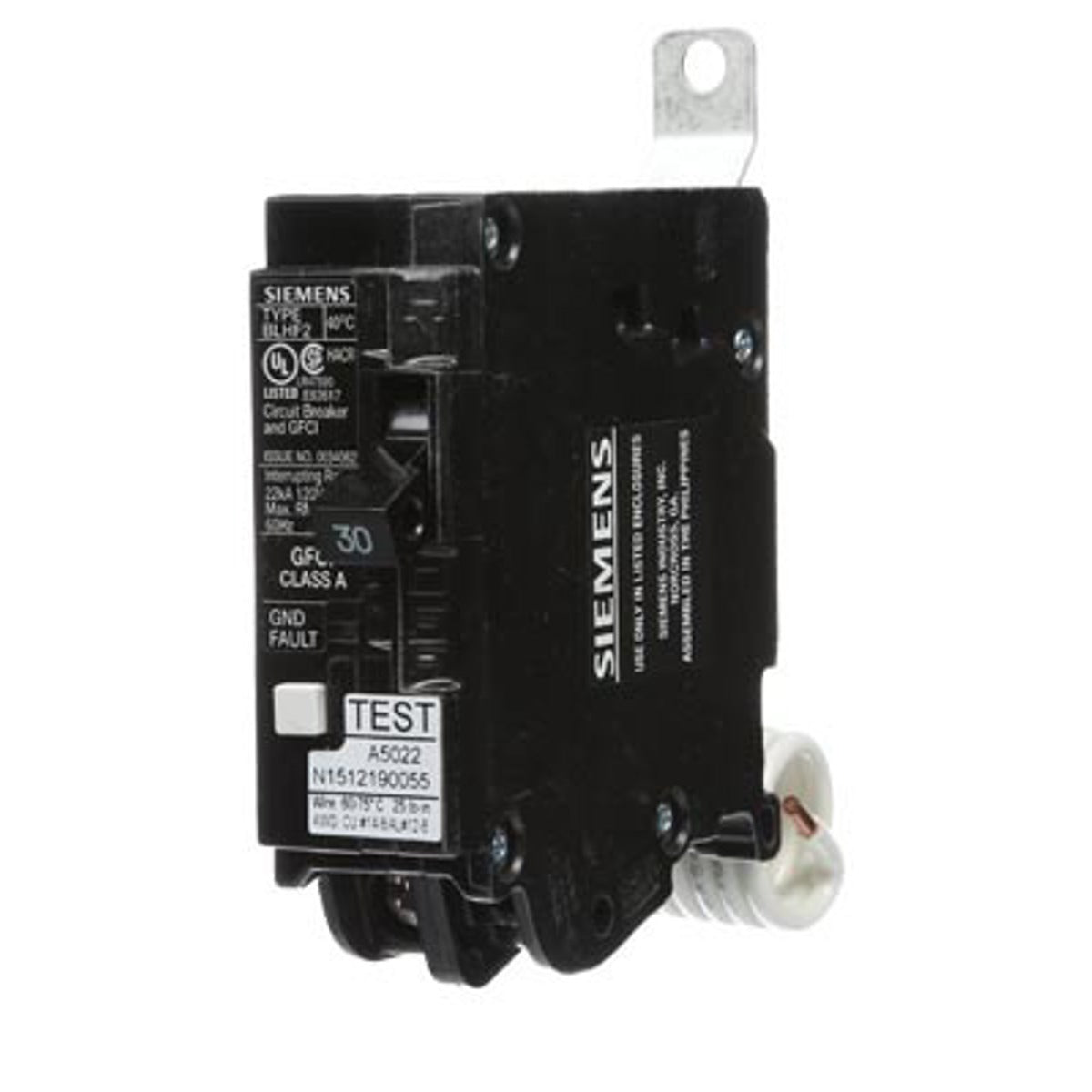

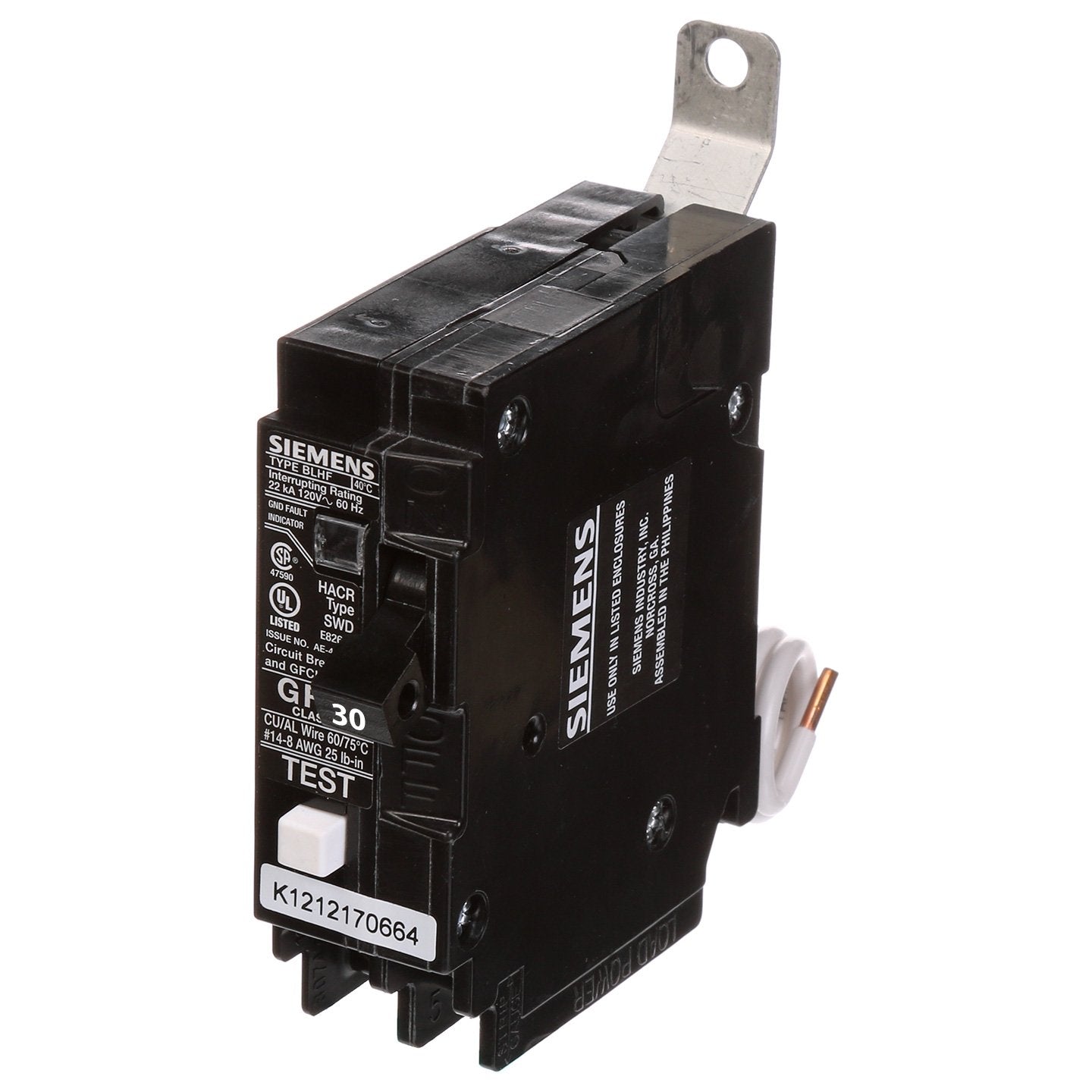

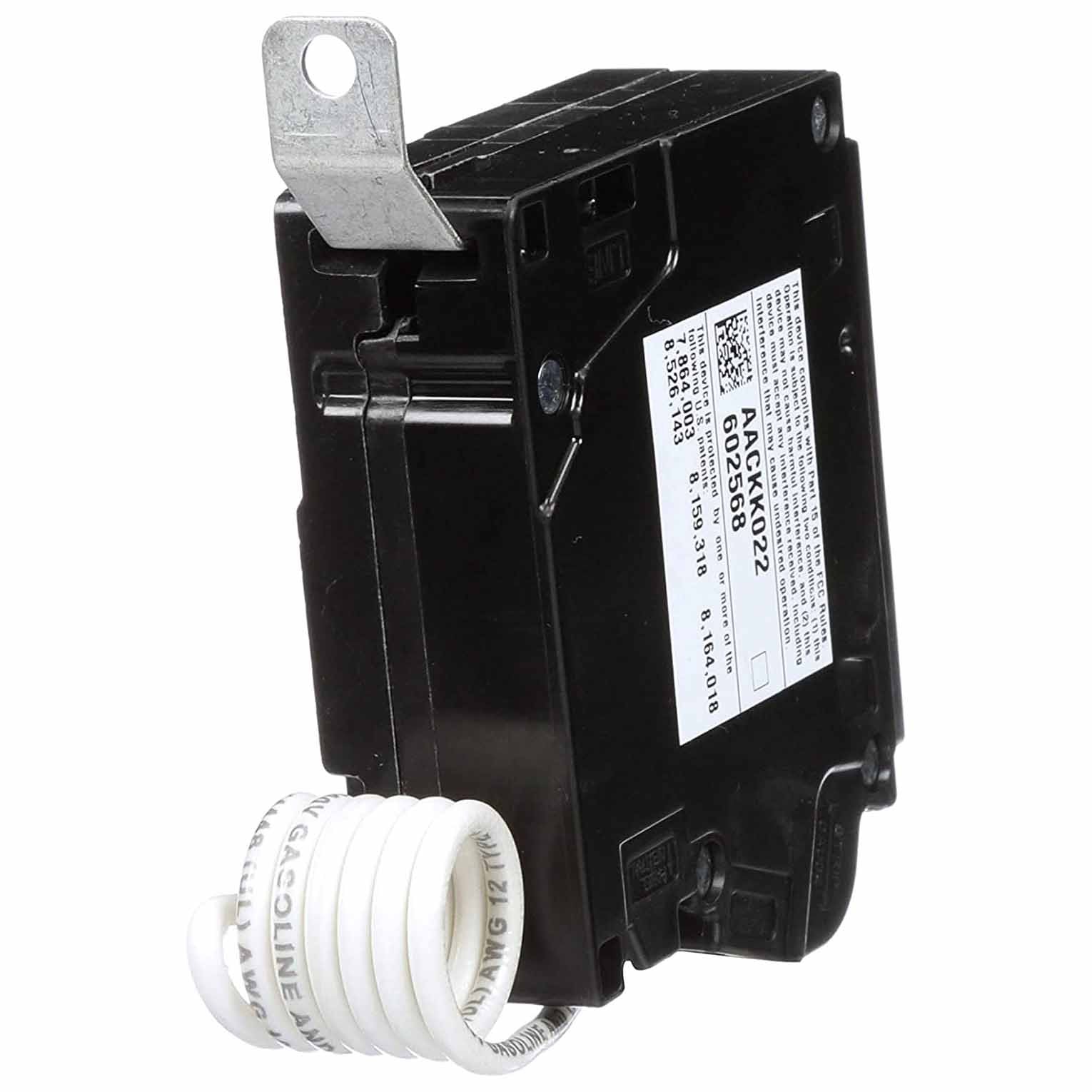

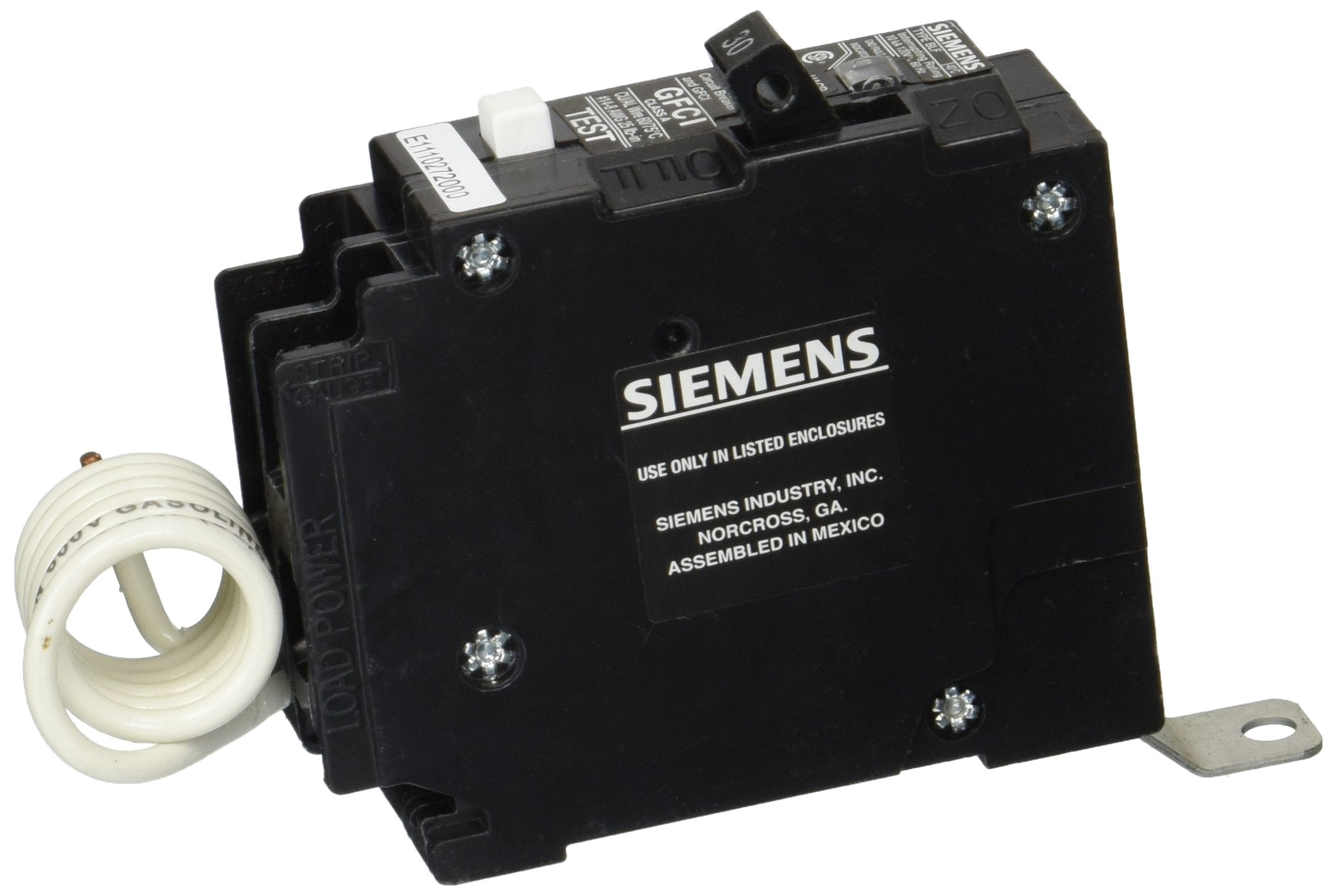

Siemens BF130A BLF2 molded case circuit breaker 30A (1P) BF130

Product Description

Siemens BF130A is a BLF2 molded case circuit breaker with a thermal-magnetic trip and integrated ground-fault protection. It is a single-pole device rated 120 V, 30 A with a 10 kA interrupting capacity and a 5 mA Class A GFCI trip sensitivity. The breaker is intended for panelboard mounting and provides overcurrent, short-circuit and ground-fault interruption for branch circuits.

• Thermal-magnetic trip; single-pole design rated 120 V, 30 A with 10 kA interrupting rating
• Integrated GFCI with 5 mA trip sensitivity (Class A) for ground-fault protection
• Panelboard mounting; molded case BLF2 type with compact dimensions for branch-circuit protection

Product Highlights

Single-pole 120 V 30 A GFCI breaker; 10 kAIC interrupting rating; 5 mA Class A ground-fault trip; panelboard mounting; thermal-magnetic protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: BF130A
• Country of Origin: Philippines

Technical Specifications

• Manufacturer: Siemens
• Brand: Siemens
• MPN: BF130A
• Catalog Number: BF130A
• Type: BLF2 molded case circuit breaker
• Mounting Type: Panelboard mounting
• Mounting Style: Bolt-on / Plug-in (panelboard compatible)
• Number of Poles: 1 Pole
• Input Voltage: 120 V
• Rated Current: 30 A
• Interrupting Rating: 10 kAIC
• GFCI Trip Sensitivity: 5 mA (Class A)
• Trip Type: Thermal-magnetic
• Trip Functions: Long-time, instantaneous, ground-fault
• Terminal Type: Lug terminals (load-side lugs included)
• Wire Gauge Compatibility: 14-10 AWG copper, 12-10 AWG aluminum (max 10 AWG)
• Dimensions (L x W x H): 5.3 in x 1.400 in x 3.35 in
• Weight: 0.325 lb
• Country of Origin: Philippines
• Standards/Certifications: UL 489, UL 943, CSA C22.2 No. 5, NEMA AB 1
• UPC: 887621215347
• GTIN: 00887621215347
• Typical Applications: Panelboard mounting; residential and commercial branch-circuit ground-fault protection
• Replacement MPN: BF130
