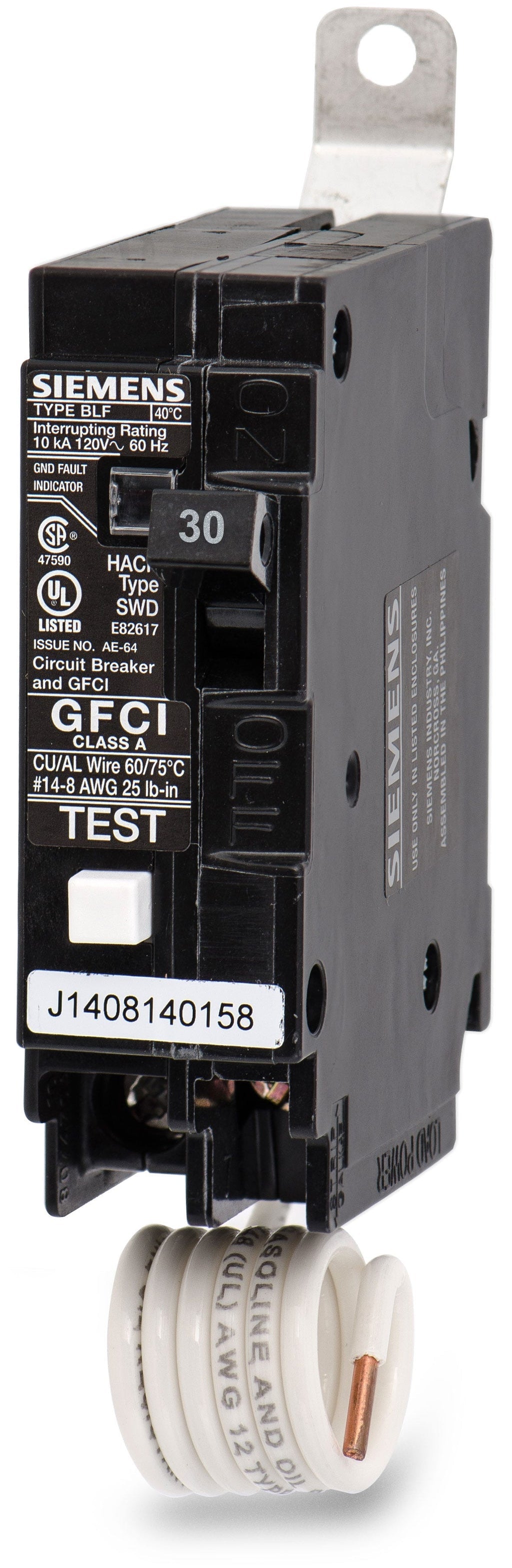

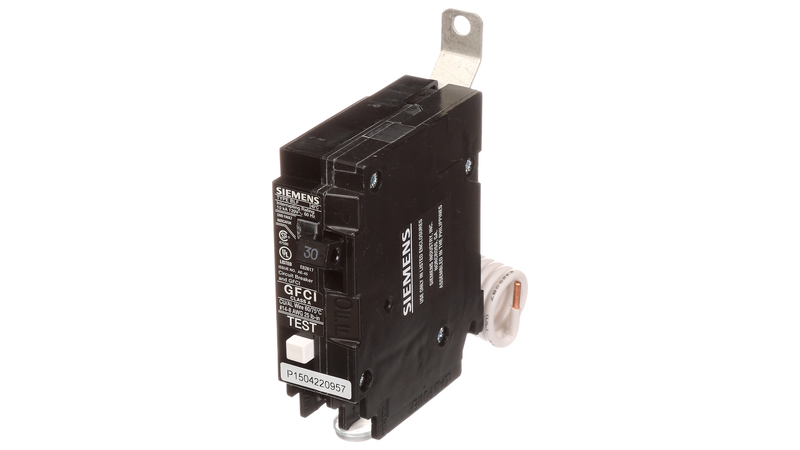

Siemens BF130 Breaker 30A 1P 120V 10K

Product Description

The Siemens BF130 is a molded case circuit breaker with thermal magnetic trip. This 1-pole breaker is rated for 120 VAC at 30 Ampere with a 10 Kiloamp interrupting rating. Designed for electrical distribution, it provides reliable 5mA Class A ground fault protection and installs securely into Siemens P1, P2, and P3 panelboards.

• Thermal Magnetic, Circuit Interrupter
• Trip Sensitivity 5 Milliamp
• Mounting Bolt-On

Product Highlights

The Siemens BF130 circuit breaker is suitable for commercial and industrial safety applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: BF130
• Country of Origin: PHL

Technical Specifications

• Number of Poles: 1
• Voltage Rating: 120 VAC
• Current Rating: 30 Ampere
• Interrupting Rating: 10 Kiloamp
• Trip Sensitivity: 5 Milliamp
• Terminal Type: Lugs
• Wire Size: 12 to 8 AWG (Aluminum), 14 to 10 AWG (Copper)
• Mounting: Bolt-On
• Used On: Loadcenter, P1/P2/P3/P4/P5 Panelboard
• Approval: UL 943, CSA, UL
• Frame Type: BLF
• Application: Electrical Distribution, Ground fault circuit interrupter
• Amperage: 30A
• Voltage: 120VAC
• Poles: 1
• Phase: 1
• AIC Rating: 10kA @ 120VAC
• Special Classification: GFCI
• Mounting Style: Bolt-On
• For Use With: Siemens P1, P2, P3 Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LIG
• Trip Function: Long-Time, Instantaneous, Ground Fault
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 10-8 AWG (Cu), 10-6 AWG (Al)
• Max Wire: 8 AWG (Cu), 6 AWG (Al)
• Min Wire: 10 AWG
• Available Options: Padlock Attachment
• Standards: CSA C22.2 No. 5, UL 489, UL 943
• Temp Rating: 40C
• Construction Features: HACR Rated
• SKU: BF130
• Part Number / Catalog: BF130
• Manufacturer: Siemens
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• Family: BL Series
• Type: BLF
• Connection: Bolt-On
• Functions: LI - Long-Time and Instantaneous Trip
• Protection: Thermal Magnetic
