Siemens BE130 Circuit Breaker 120 Volt 30 Amp 1-Pole 10 Kaic 30 mA GFCI Type BLE Molded Case

Product Description

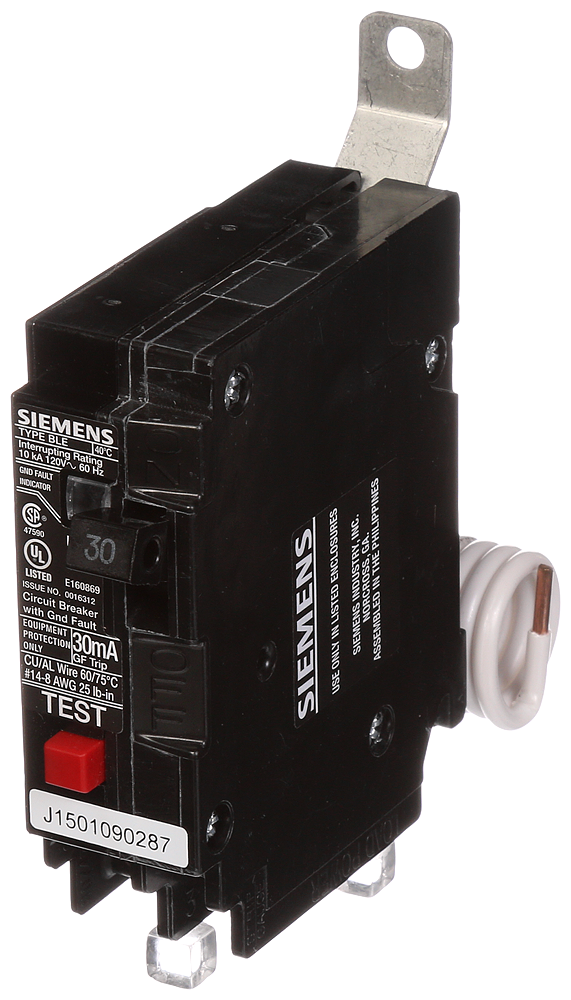

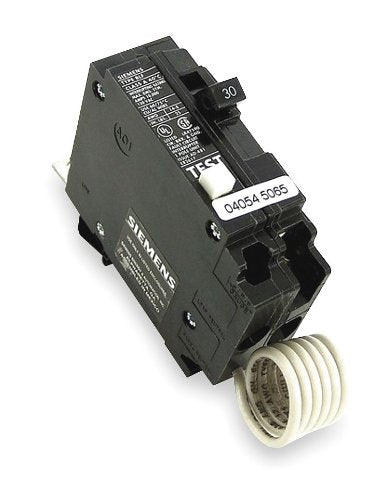

The SIEMENS BE130 is a type BLE molded case circuit breaker. This thermal-magnetic, 1-pole breaker operates at 120V with a 30A current and a 10kA interrupt rating. It provides ground fault equipment protection at 30mA and is designed for electrical distribution applications. The connection type is bolt-on.

• Thermal-Magnetic trip type
• Ground Fault Equipment Protection (30mA)
• Bolt-On connection

Product Highlights

The SIEMENS BE130 circuit breaker offers reliable thermal-magnetic protection with ground fault equipment protection for electrical distribution systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: BE130
• Country of Origin: Philippines

Technical Specifications

• Brand: Siemens
• Width: 1.300 in
• Height: 3.3 Inch
• Length: 5.3 Inch
• Current: 30 Amp
• Voltage: 120 Volt
• Amperage: 30 Amp
• Trip Type: Thermal Magnetic
• Applications: Electrical Distribution
• Connection Type: Bolt-On
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• MPN: BE130
• kA: 10kA
• Ground Fault Protection: 30mA
• Product Type: CIRCUIT_BREAKER
• Terminal Type: Load Lug
• Wire Size: 12 to 8 AWG (Aluminum), 14 to 10 AWG (Copper)
• Mounting: Bolt-On
• Used On: Loadcenter, P1/P2/P3/P4/P5 Panelboard
• Approval: UL 489
• Frame Type: BLE
• Current Rating: 30 A
• Voltage Rating: 120 V
