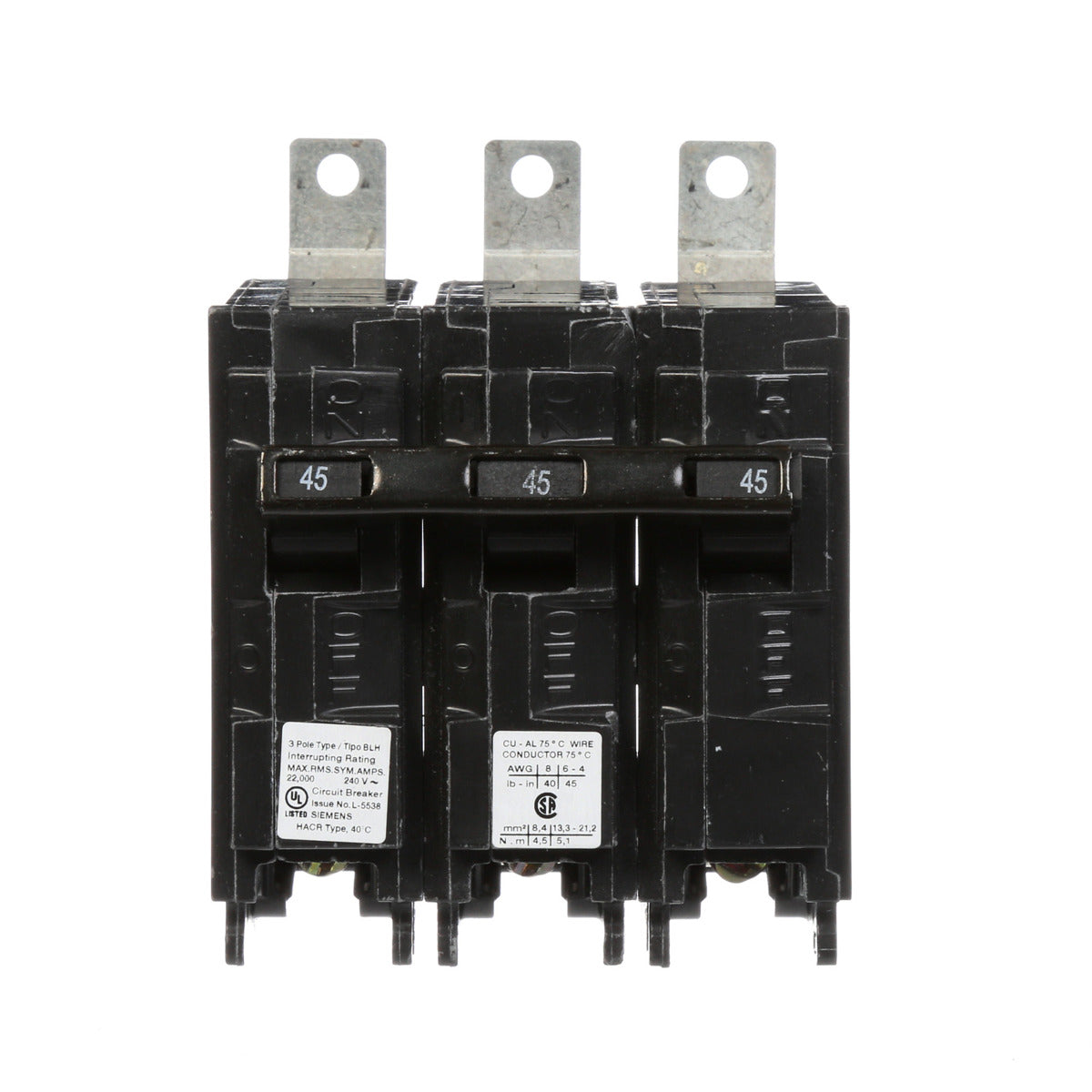

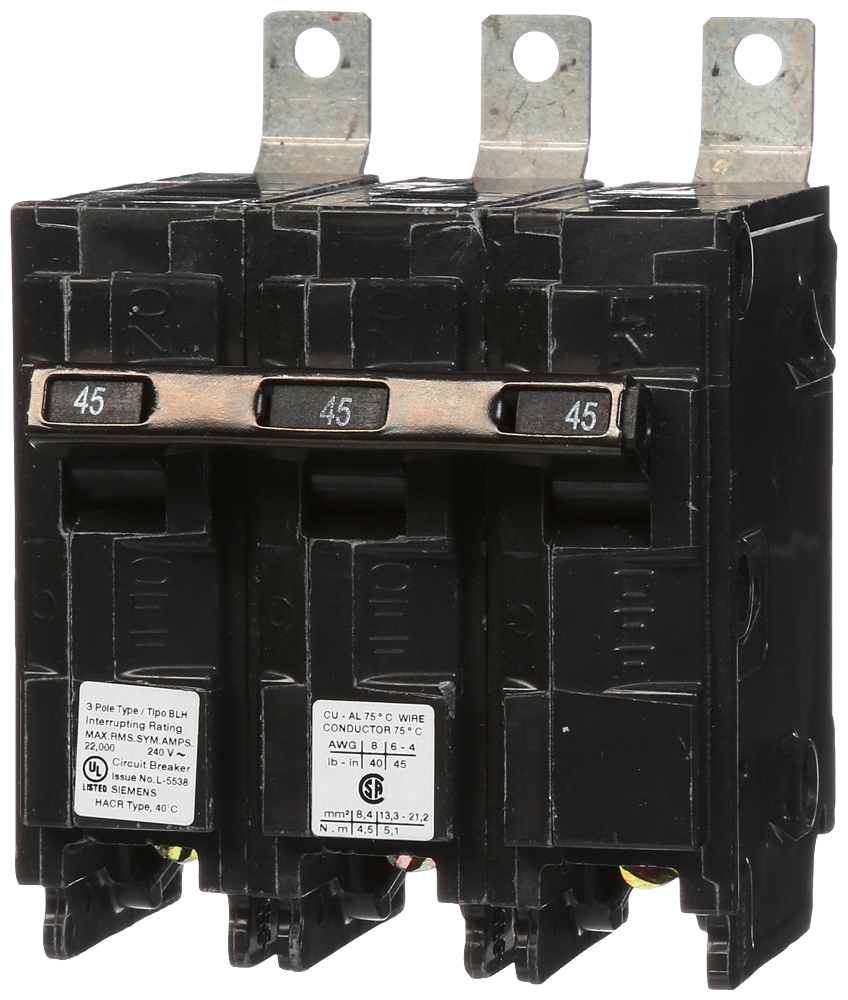

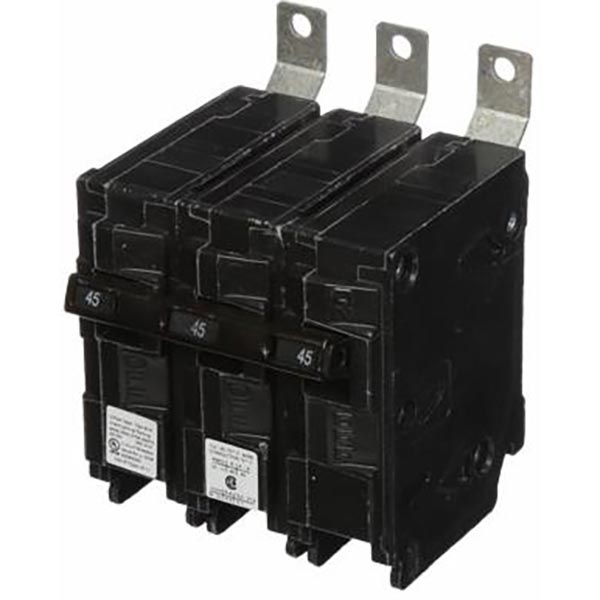

Siemens B345H 3-Pole 45 Amp 240 VAC 22 kA Bolt-On Molded Case Circuit Breaker

Product Description

The Siemens B345H is a three-pole molded case circuit breaker designed for electrical distribution. It operates at a voltage rating of 240 volts and has an amperage rating of forty-five amps. This breaker is suitable for various applications, such as lighting and electrical distribution, and is UL listed and CSA certified.

• Type: BLH, Application: Electrical Distribution
• Interrupt Rating: twenty-two kA for safety
• Connection Type: Bolt-On for secure mounting

Product Highlights

This molded case circuit breaker offers reliable protection for electrical circuits.

Product Information

Standard Information

• Manufacturer: Siemens
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: B345H
• Voltage Rating: 240 VAC
• Amperage Rating: 45 A
• Interrupt Rating: 22 kA
• Number of Poles: 3
• Depth: 3 inches
• Width: 4 inches
• Height: 3.5 inches
• Weight: 0.955 lb
• Trip Type: Thermal Magnetic
• Frequency Rating: 60 Hz
• Connection Type: Bolt-On
