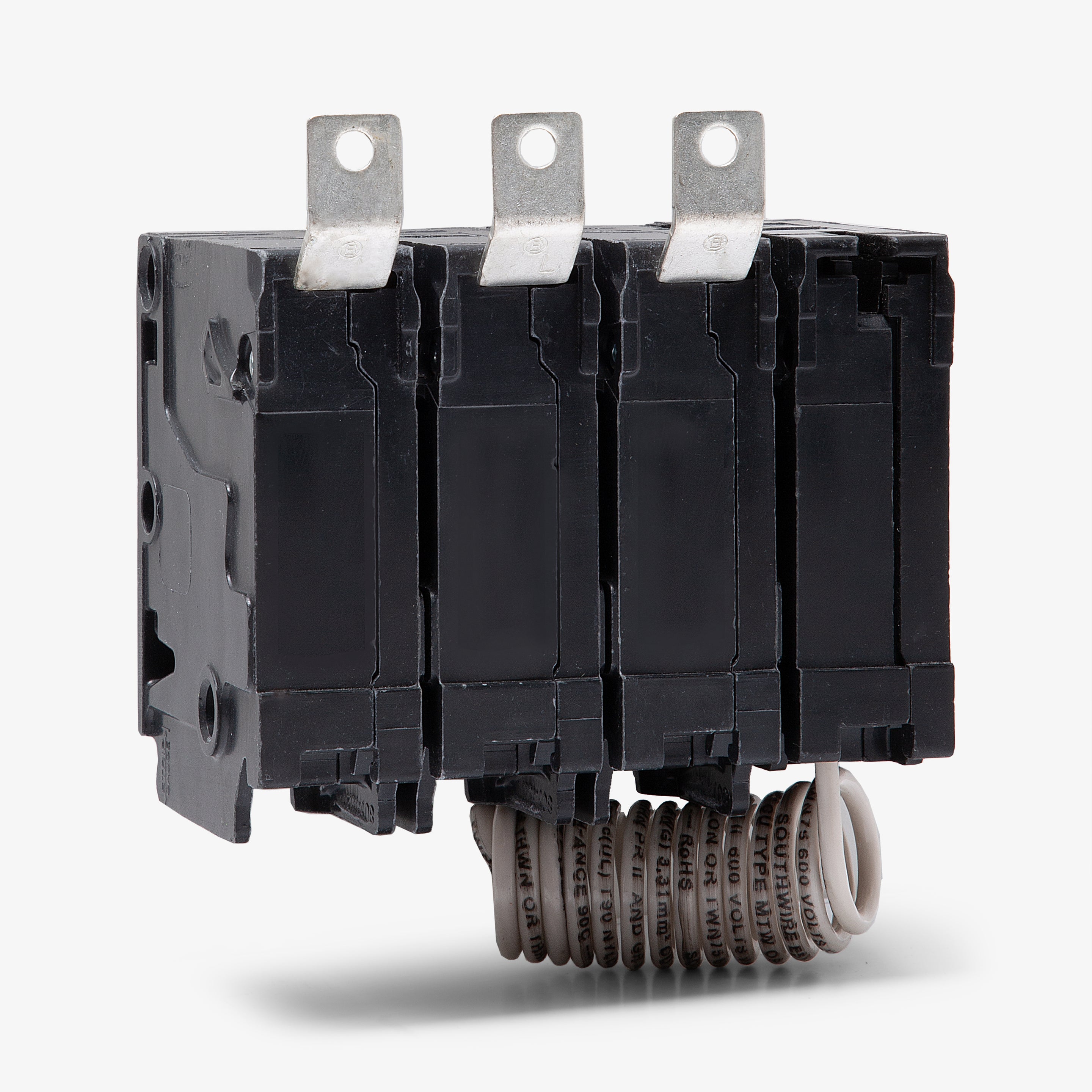

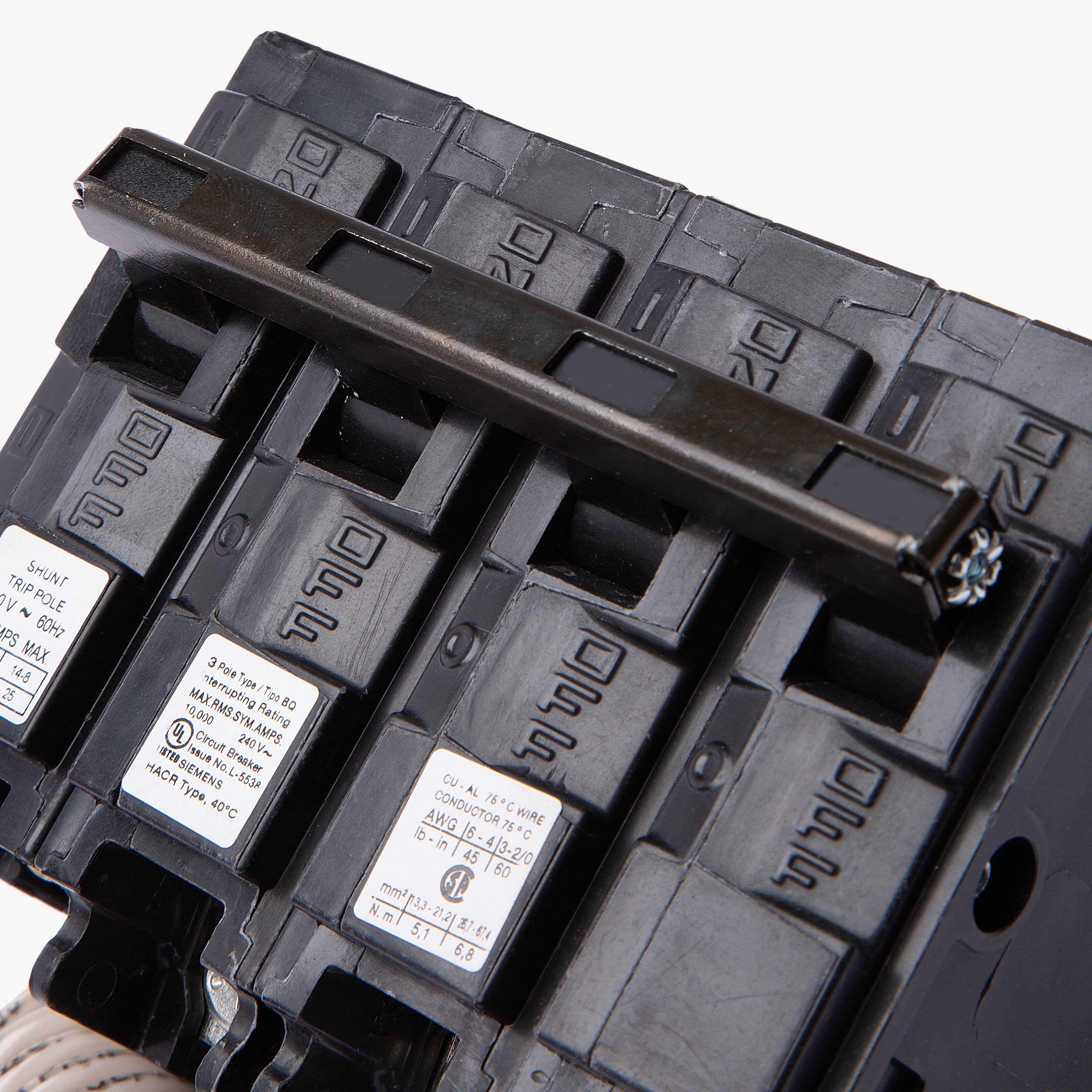

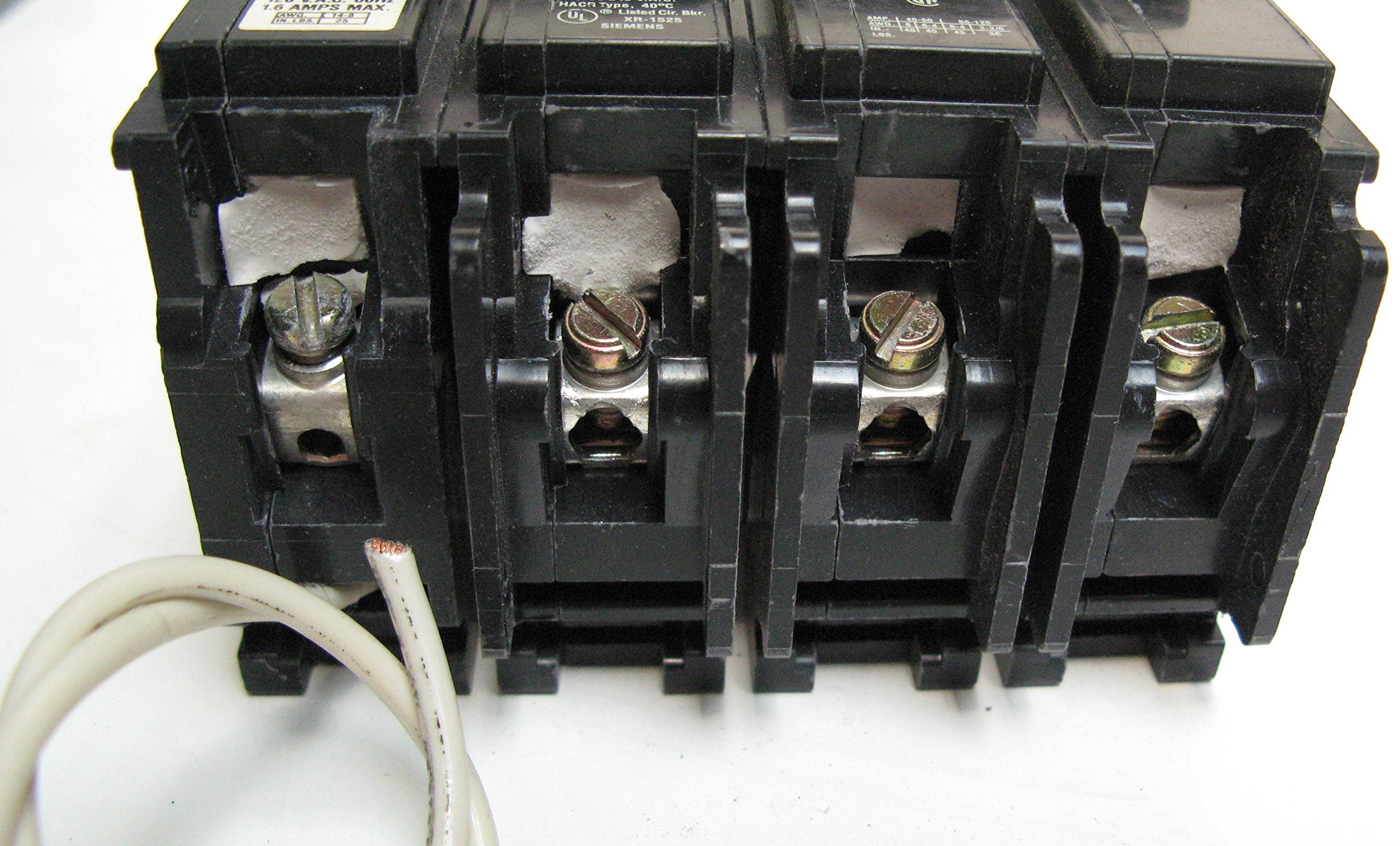

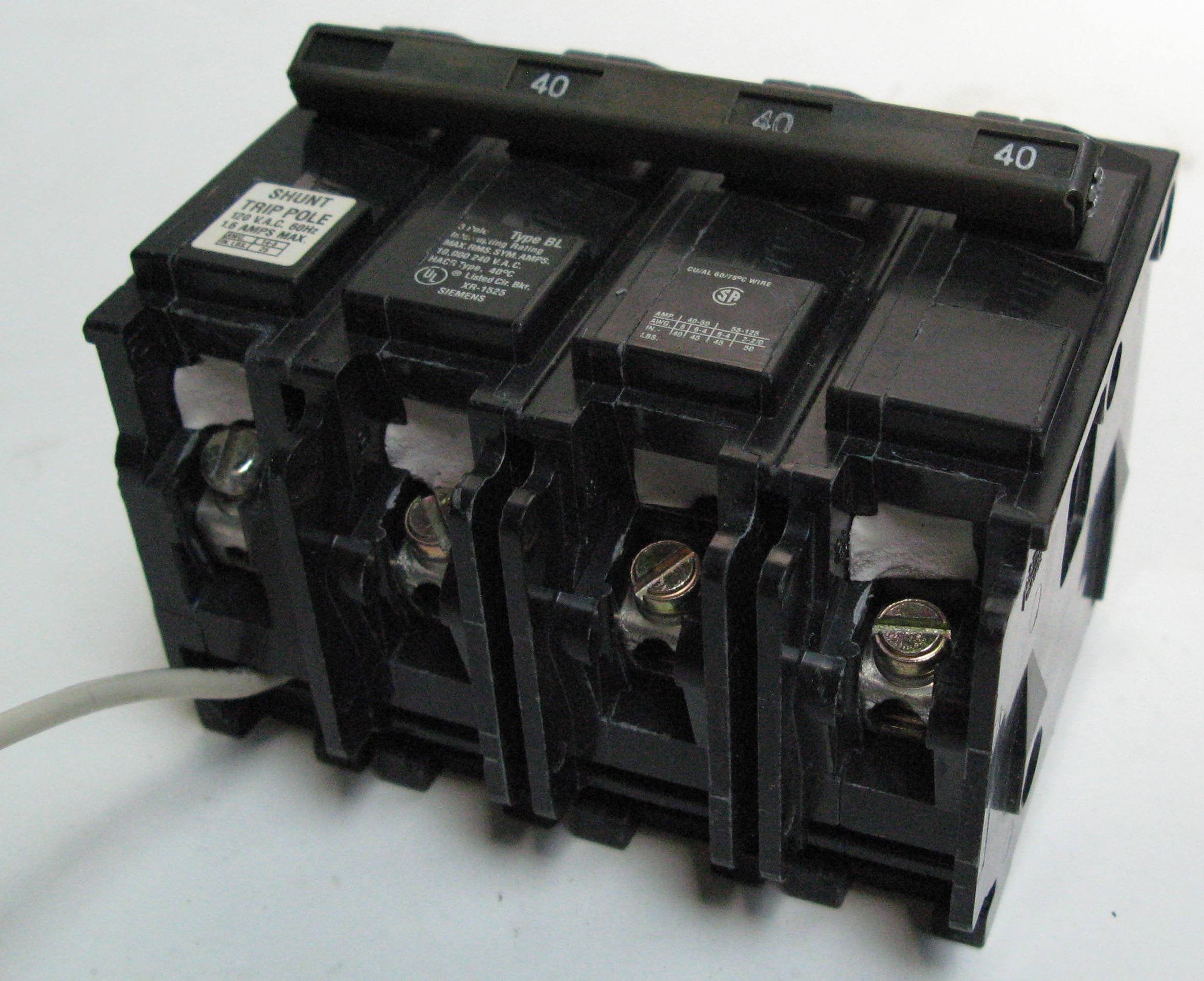

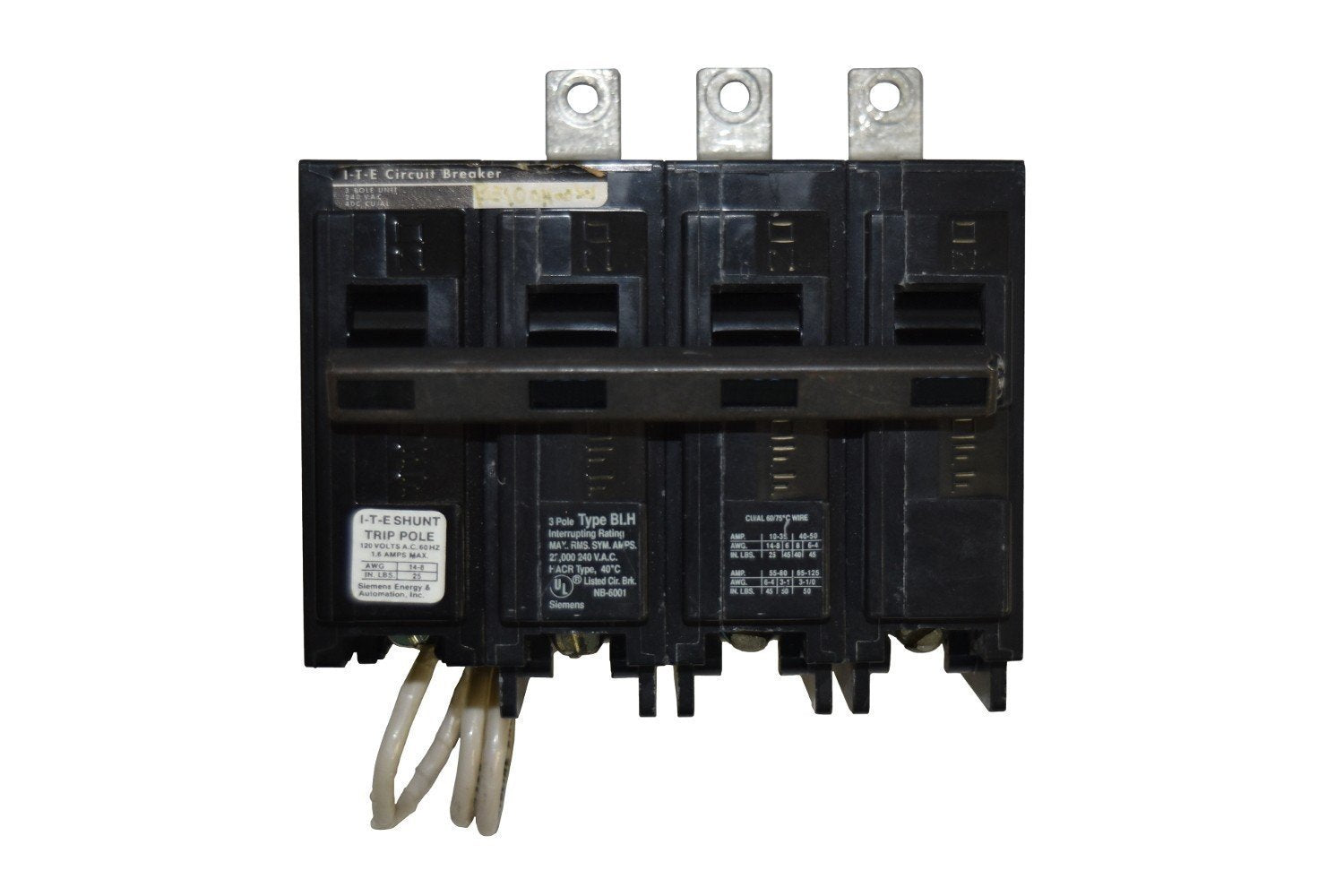

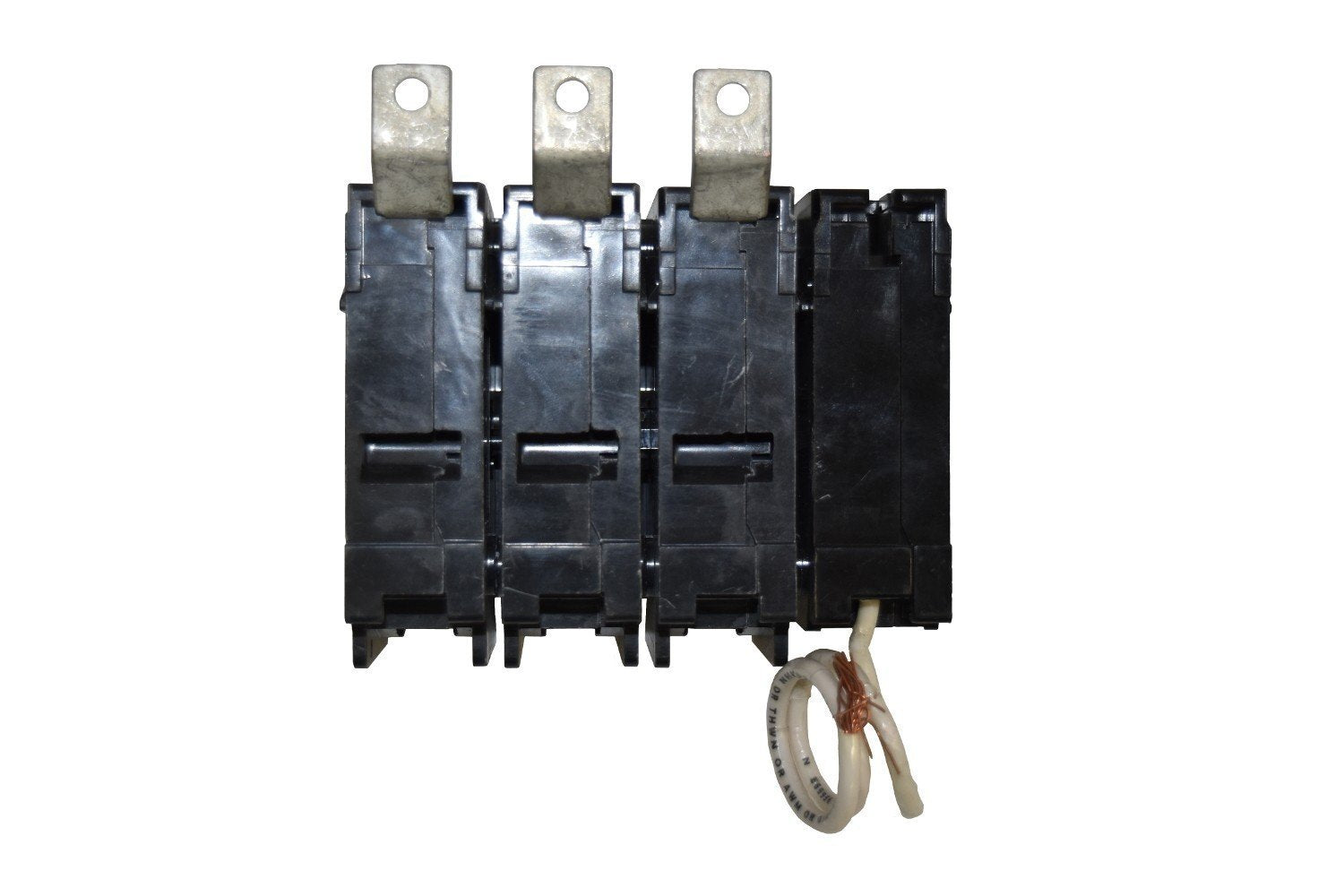

Siemens B34000S01 3-Pole 40 Amp 240 Volt 10 K Circuit Breaker with 120 Volt Shunt

Product Description

The Siemens B34000S01 is a 3-pole, 40 Amp, 240 Volt circuit breaker with a 120 Volt shunt. This low voltage molded case circuit breaker is designed for panelboard mounting and provides circuit protection. It is suitable for electrical distribution applications and utilizes thermal magnetic trip technology. The unit is UL 489 certified and features a bolt-on connection.

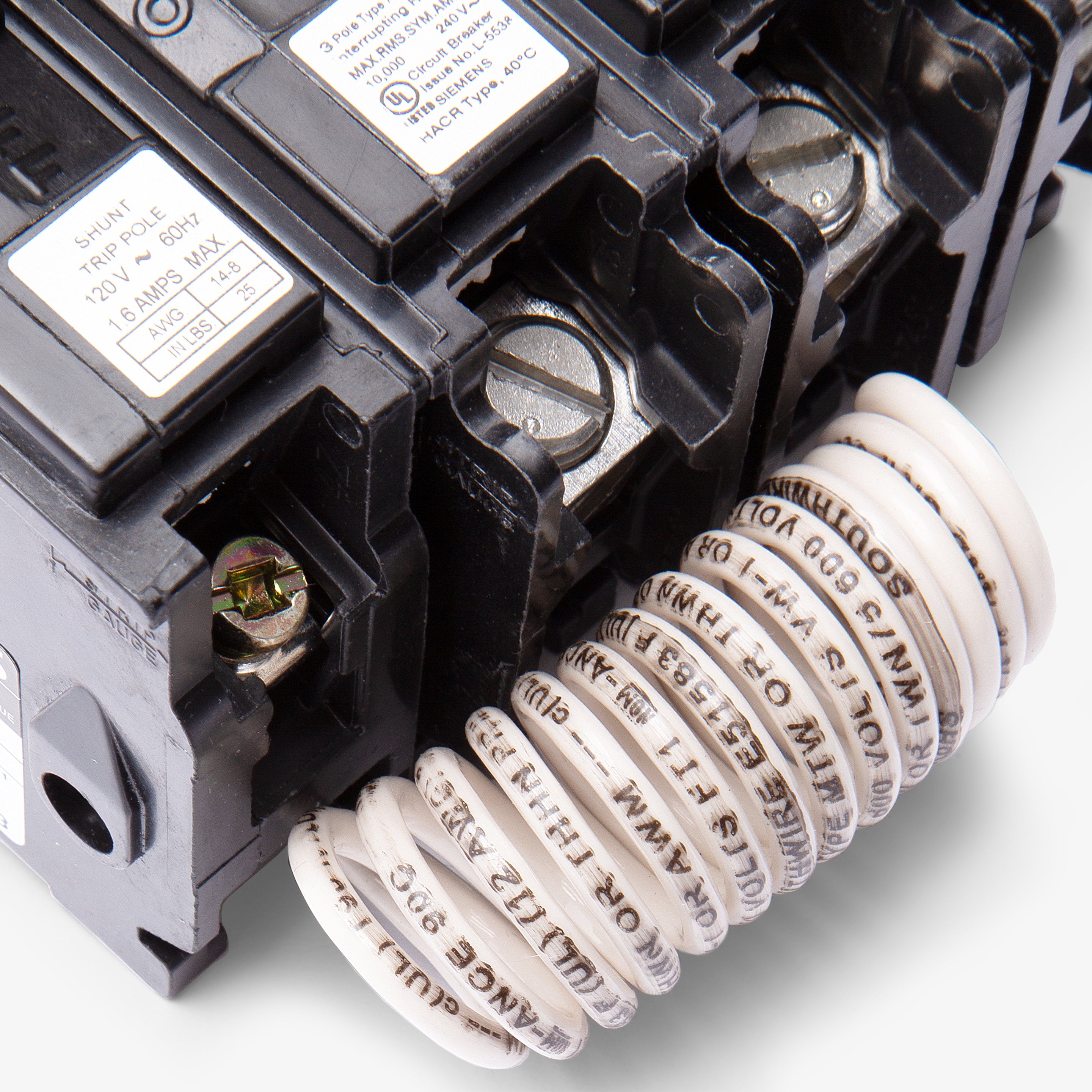

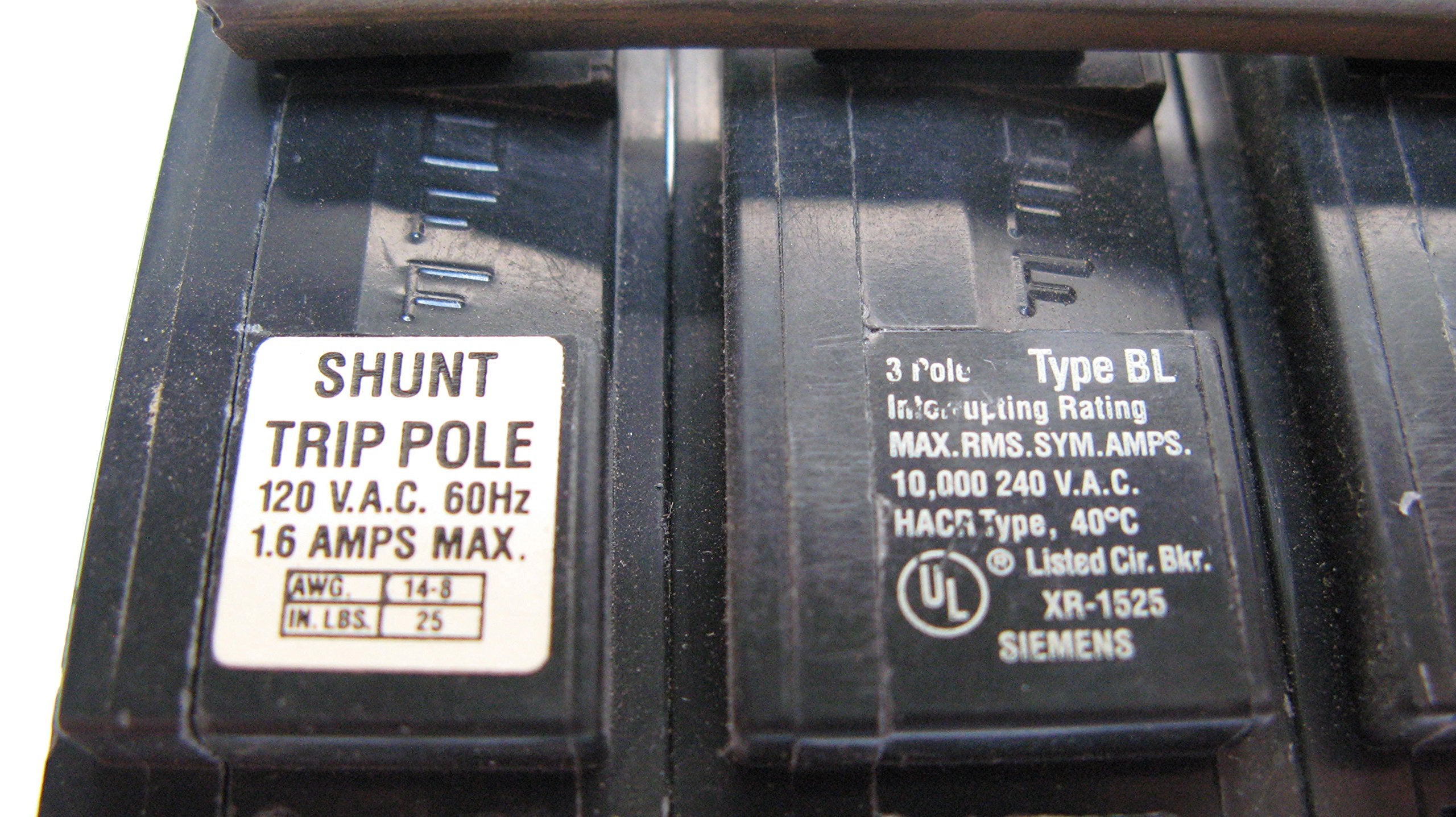

• Shunt Trip 120V
• Electrical Distribution
• UL 489

Product Highlights

The Siemens B34000S01 circuit breaker offers reliable overcurrent protection and can be easily reset after a short circuit or overload.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: B34000S01
• Country of Origin: Mexico

Technical Specifications

• Type: BL
• Brand: Siemens
• Depth: 3 in
• Width: 4.000 in
• Height: 3.5 in
• Length: 4 in
• Current: 40 Amp
• Voltage: 120/240 Volt
• Trip Range: Thermal Magnetic
• Applications: Electrical Distribution
• TC Connection: BOLT-ON
• Connection Type: Bolt-On
• Number of Poles: 3 Pole
• Interrupt Rating: 10 AIC
• Catalog Number: B34000S01
• Manufacturer: Siemens
• Country of Origin: Mexico
• Made in USA: No
• Standard: UL 489
• UPC: 783643268548
• GTIN: 00783643268548
• AC Voltage Rating: 120/240V AC
• Circuit Breaker Type: Shunt Trip
• DC Voltage Rating: Not Rated
• Circuit Breaker Actuator: Toggle
• Circuit Breaker Mounting Style: Bolt On
• Compatible Panelboard/Load Center Series: P1
• Phase: Three
• Series: BL
• Max. AIR Rating: 10kA at 240V AC
• For Use With: Siemens P1 Panelboards
• Terminal Connection: Lug
• Frame Size: 125A/BL
• Min. Wire Size: 8 AWG
• Amps: 40
• Max. Wire Size: 6 AWG (Cu), 4 AWG (Al)
• Standards: UL, HACR Rated
• Mounting: Bolt on
• Application: Electrical Distribution Applications
• Frequency Rating: 60 Hz
• Temperature Rating: 40 deg C
• Trip Type: Shunt/Thermal Magnetic
• Wire Size: 8 to 6 AWG, 8 to 4 AWG
• AIC Rating: 10kA @ 240VAC
• Mounting Style: Bolt-On
• Terminal Type: Lugs
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 8-6 AWG (Cu), 8-4 AWG (Al)
• Available Options: Padlock Attachment, Handle Tie
• Accessories: Shunt Trip 120VAC (Factory Installed)
• Approval: CSA, UL
• Temp Rating: 40C
• Construction Features: HACR Rated
• Interrupting Rating at 240 Volts AC: 10,000
